Square Light Pole Manufacturer
Modern Square Profile
Clean geometric shaft design for contemporary streets and architectural projects
Multiple Material Options
Aluminum, stainless steel and galvanized steel configurations available
Custom OEM/ODM
Height, wall thickness, arm, base plate, finish and mounting details customized
Wind-load Engineering
Structural design verified against fixture load and project wind requirements
Categories
Request a Project Quote
Tell us about your project and our team will provide a competitive quote within 12 hours.
Your details are used only to prepare your project quote — no spam.
Fast Response
Within 12 Hours
Custom Solutions
OEM/ODM Support
Global Shipping
Reliable Delivery

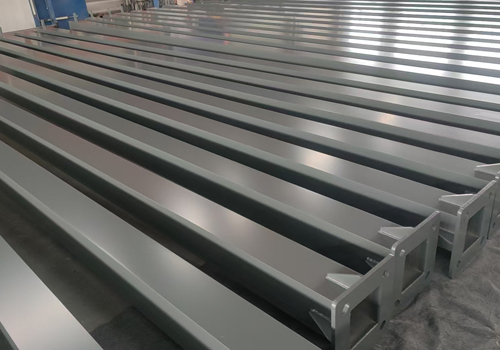

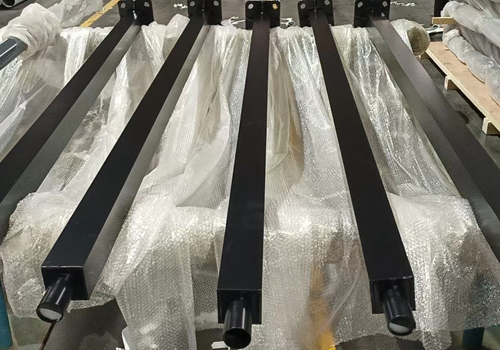

Square Light Poles for Outdoor Projects
Square aluminum light poles are widely used for street lighting, parking areas, commercial projects, and landscape lighting applications. Manufactured from high-strength aluminum alloy, our square light poles offer excellent corrosion resistance, lightweight structure, and long service life.
As an experienced aluminum light pole manufacturer, we provide customized heights, dimensions, finishes, and mounting solutions to meet different project requirements.
Aluminum and Stainless Steel Square Light Poles for Outdoor Projects
Square aluminum light poles are widely used for street lighting, parking areas, commercial projects, and landscape lighting applications. Manufactured from high-strength aluminum alloy, our square light poles offer excellent corrosion resistance, lightweight structure, and long service life.
As an experienced aluminum light pole manufacturer, we provide customized heights, dimensions, finishes, and mounting solutions to meet different project requirements.
Standard Sizes of Square Light Pole
| Model | Height (mm) | Section Size Options (mm) | Wall Thickness (mm) | Handhole Height (mm) | Base Plate Size (L × W × T, mm) |
|---|---|---|---|---|---|
| YLDG-SP1 | 3,000 | 76 / 101 / 127 / 150 | 4 | 500 | 298 × 298 × 12 |
| YLDG-SP2 | 4,000 | 76 / 101 / 127 / 150 | 4 | 500 | 298 × 298 × 12 |
| YLDG-SP3 | 5,000 | 76 / 101 / 127 / 150 | 4 | 500 | 298 × 298 × 12 |
| YLDG-SP4 | 6,000 | 76 / 101 / 127 / 150 | 4 | 500 | 298 × 298 × 12 |
| YLDG-SP5 | 7,000 | 76 / 101 / 127 / 150 | 4 | 500 | 298 × 298 × 12 |
| YLDG-SP6 | 8,000 | 76 / 101 / 127 / 150 | 5 | 500 | 305 × 305 × 19 |
| YLDG-SP7 | 9,000 | 76 / 101 / 127 / 150 | 5 | 500 | 305 × 305 × 19 |
| YLDG-SP8 | 10,000 | 76 / 101 / 127 / 150 | 5 | 500 | 305 × 305 × 19 |
Technical Specification
| Product Name | Square Light Pole |
|---|---|
| Material | Aluminum Alloy / Stainless Steel |
| Aluminum Grade | 6061-T6 / 6063-T6 |
| Pole Shape | Square / Rectangular |
| Height | 3m – 12m |
| Cross Section | 80×80mm – 350×350mm |
| Wall Thickness | 3.0mm – 8.0mm |
| Pole Type | Straight Square Pole |
| Manufacturing Process | Aluminum Extrusion + Welding + Surface Treatment |
| Tensile Strength | ≥200 MPa (According to Alloy Grade) |
| Yield Strength | ≥150 MPa |
| Wind Load Rating | Customized According to Project |
| Surface Finish | Powder Coating / Anodizing |
| Surface Color | RAL Color Available |
| Corrosion Resistance | Excellent |
|---|---|
| Operating Temperature | -40℃ to +60℃ |
| Base Plate | Aluminum Alloy / Steel |
| Base Plate Size | Customized |
| Anchor Bolt | M16-M30 Galvanized Anchor Bolts |
| Hand Hole | 80×250mm / 100×300mm |
| Grounding Terminal | Included |
| Cable Access Hole | Available |
| Arm Type | Single Arm / Double Arm / Custom |
| Lamp Installation | Top Mount / Side Mount |
| Protection Grade | IP65+ Compatible |
| Installation Method | Flange Mounted |
| Warranty | 10+ Years (Depending on Finish) |
| OEM/ODM | Supported |
Material Options
Choose aluminum alloy for efficient weight and corrosion resistance, or stainless steel for demanding durability and premium exterior finishes.
Aluminum Alloy
Recommended for large-scale commercial and municipal projects where reduced pole weight, clean finish, and corrosion resistance improve installation efficiency.
- Common grades: 6063 / 6061 or project-specified equivalents
- Finish: anodized, polyester powder coating, wood-grain transfer, or custom RAL colorsteel wire rope, 8mm diameter, 6×19 construction
- Benefits: lighter logistics, excellent surface quality, strong anti-rust performance
Stainless Steel
Specified for coastal, industrial, and premium architectural environments requiring stronger material stability and long-term corrosion resistance.
- Common grades: SS304 for general outdoor use; SS316 for coastal or corrosive environments
- Finish: brushed, satin, mirror, bead-blasted, or powder-coated stainless steel
- Benefits: high durability, premium appearance, long service life in demanding locations
Square Light Pole Design and Engineering
Structural Design
Pole dimensions and structural requirements are reviewed against the specified mounting height, luminaire load and project wind conditions.
Fixture Mounting
Fixture and accessory mounting details can be specified for the project and confirmed on the approved drawings.
Finish & Maintenance
Specify the surface finish and access details to suit the installation environment and maintenance plan.
Modern Aesthetics
Clean geometric lines complement contemporary architectural designs in parking lots, campuses, and commercial areas.
Square Light Poles for Commercial and Municipal Projects
Choose square poles in multiple heights and shaft dimensions for area and roadway lighting. Compare our aluminum light poles for lightweight corrosion resistance, stainless steel light poles for demanding environments, or explore complete street light pole solutions. Final dimensions and structural requirements are confirmed against approved project drawings.
Square Shaft Options
Square aluminum light poles for roadway, parking and commercial lighting. Choose from the listed shaft sizes and heights, with project details matched to your approved drawings.
- 4 in and 5 in shaft options
- Multiple height options
- Project-specific configurations
Material & Finish Options
Select the material and surface finish to suit the installation environment and project requirements.
- Aluminum configurations
- Stainless steel options
- Galvanized steel options
Project-Specific Design
Configure shaft dimensions, mounting details and finish to match the project drawings and lighting requirements.
- Custom shaft dimensions
- Mounting details to specification
- Finish options by project
Square Pole Applications
University Campuses
Safe, well-lit pathways and parking areas for students and staff.
Municipal Streets
Reliable illumination for roadways and public spaces.
Commercial Parking
Professional lighting for retail centers and commercial properties.
Industrial Facilities
Heavy-duty poles for manufacturing plants and logistics centers.
Frequently Asked Questions
Q: What aluminum alloys are available for square light poles?
A: The available options include 6063-T6 and 6061-T6 aluminum alloy. Confirm the required grade in your project specification.
Q: Can square aluminum poles be customized?
A: Yes. Height, shaft dimensions, finish and mounting details can be specified for OEM and project orders.
Q: Are aluminum poles suitable for coastal areas?
A: Aluminum offers corrosion resistance, but the suitable alloy and finish depend on the site exposure. Share the project location and environmental conditions so the configuration can be reviewed.
