Flood Light Pole Manufacturer
Steel, stainless steel, or aluminum flood light poles configured for parking areas, sports facilities, industrial sites, and commercial lighting. Structural capacity, finish, ingress protection, and wind design are confirmed according to the selected luminaires and project specification.
Max Lumen Output
Ingress Protection
Wind Load Rating
Warranty Terms Confirmed by Contract
Specifications
Available in three standard configurations. Custom heights and wattages available for projects exceeding 50 units.
- Pole Height
- Pole Material
- Shaft Profile
- Wall Thickness
- Base Plate
- Anchor Bolts
- LED Module
- Driver
- Input Voltage
- Power Factor
- THD
- Color Temperature
- CRI
- Beam Angles
- Surge Protection
- Operating Temp
- Certifications
- 12m / 18m / 25m / 30m / 35m / 40m
- Q345B High-Strength Steel, Hot-Dip Galvanized
- 12-sided tapered polygonal (OD 180–380mm)
- 6.0mm – 20.0mm (height dependent)
- 500×500mm – 800×800mm, 20–30mm thick
- M24 – M42, Grade 8.8, hot-dip galvanized
- Philips 3030 / Lumileds 5050 / CREE XB-H
- Inventronics / Mean Well HLG series
- AC 100–277V / 347–480V (50/60Hz)
- > 0.95 at full load
- < 10%
- 4000K / 5000K / 5700K
- > 70 (standard) / > 80 (optional)
- 15° / 30° / 60° / 90° / Asymmetric
- 10kV / 20kV (line-line & line-ground)
- -40°C to +55°C
- CE, RoHS, UL, DLC, C-Tick, BIS
Every part is engineered for durability, serviceability, and ease of installation in the field.
LED Flood Light Head
Modular die-cast aluminum housing with tempered glass lens. Tool-free tilt adjustment ±15°. Available in 15°–90° beam angles.
Multi-Arm Mounting Bracket
Hot-dip galvanized steel crossarm assembly. Supports 2–8 light heads. 360° rotation with locking collar for precise aiming.
Tapered Pole Shaft
12-sided polygonal profile, auto-submerged arc welded. Internal cable routing with inspection door. Powder-coated or galvanized finish.
Foundation Base Assembly
Heavy-gauge steel base plate with pre-drilled anchor bolt pattern. Includes leveling nuts, grounding lug, and cable entry conduit.
Engineered for Extreme Conditions
Material selection, finish system, drainage details and maintenance access are coordinated for the project environment. For coastal or salt-exposed sites, review the corrosion-protection considerations before specifying the pole.
Up to 150,000 lumens per fixture with 200 lm/W efficacy. Modular LED boards allow on-site wattage customization from 400W to 1200W without replacing the entire unit.
Pole shafts undergo hot-dip galvanization per ASTM A123 standards, providing 85μm zinc coating thickness for superior corrosion resistance in coastal and industrial environments.
Complete dust-tight protection and resistance to powerful water jets. IK10 impact rating withstands 20 joules of mechanical impact — built for vandalism-prone public areas.
Patented quick-release bracket allows 2–8 flood light heads per pole with 360° rotation and ±15° tilt. Tool-free adjustment for precise beam aiming during installation.
NEMA 7-pin receptacle and Zhongshan socket pre-installed. Compatible with 0-10V, DALI, and wireless controls for IoT-enabled lighting management systems.
The luminaire housing, heat-sink design, ambient-temperature rating, and lumen-maintenance performance are confirmed from the selected fixture data sheet and relevant test documentation. Pole structural design uses the actual fixture weight and projected area.
Proven in the Field

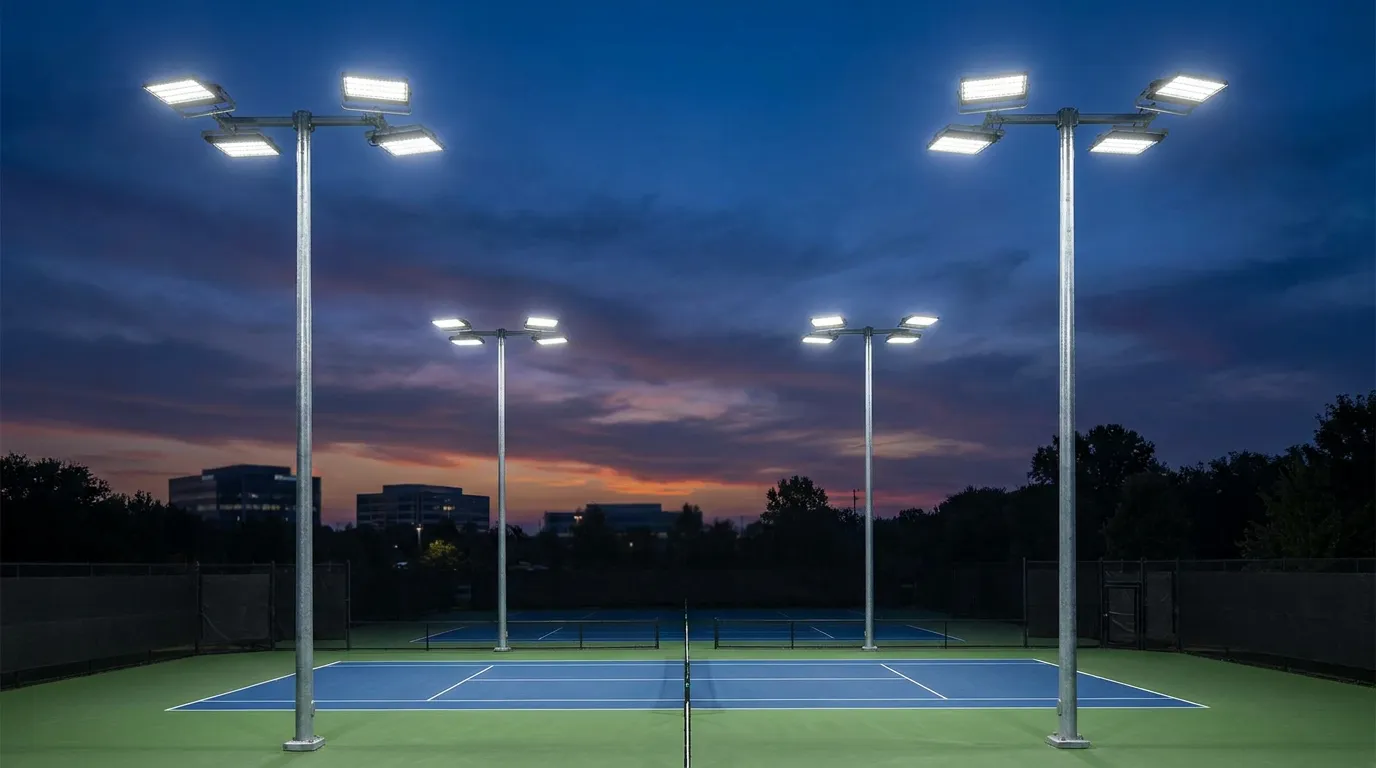

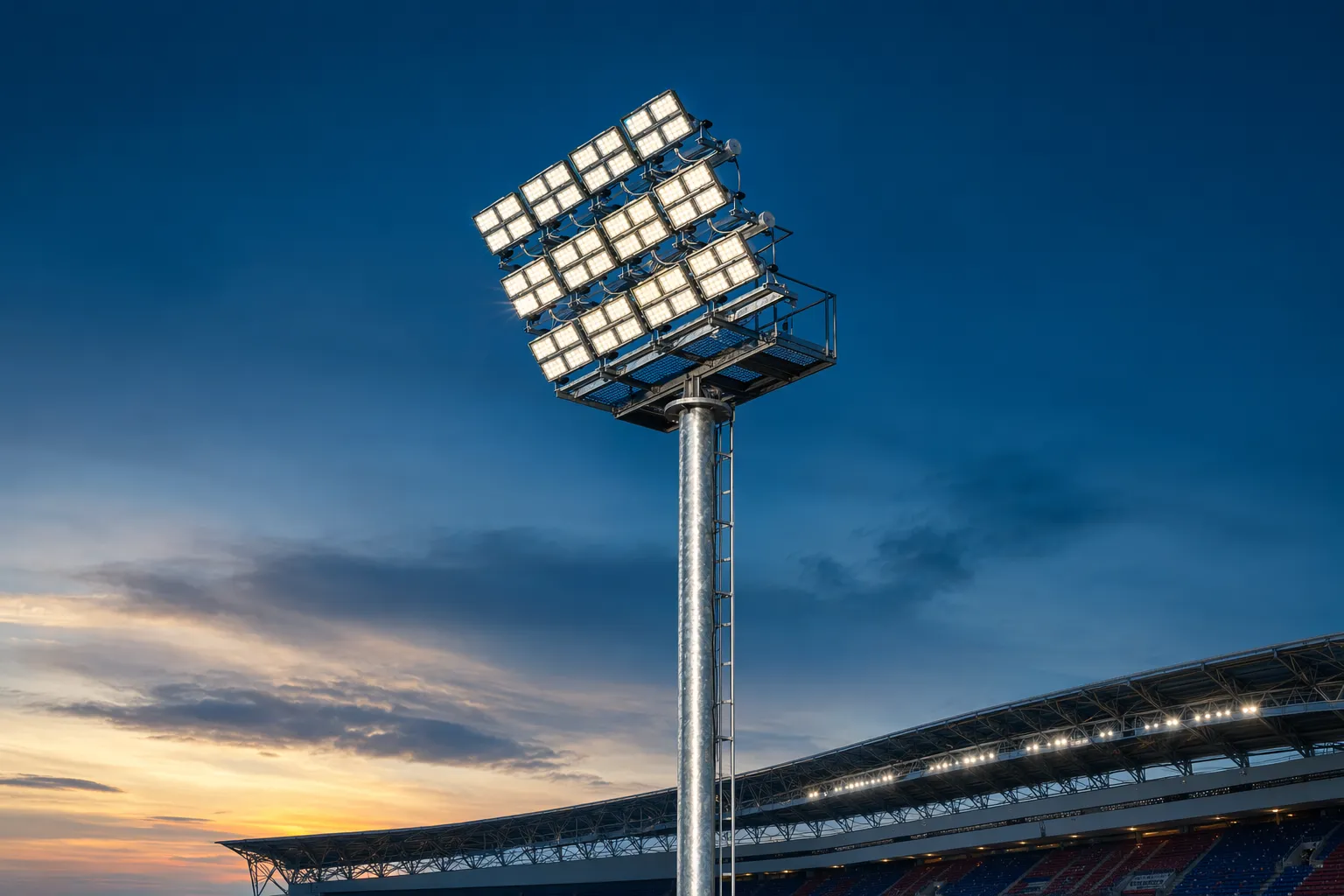

Flood light pole configurations can be developed for sports facilities, parking areas, industrial yards, transport sites and other outdoor lighting projects. Final geometry and structural inputs are confirmed from the approved project specification.

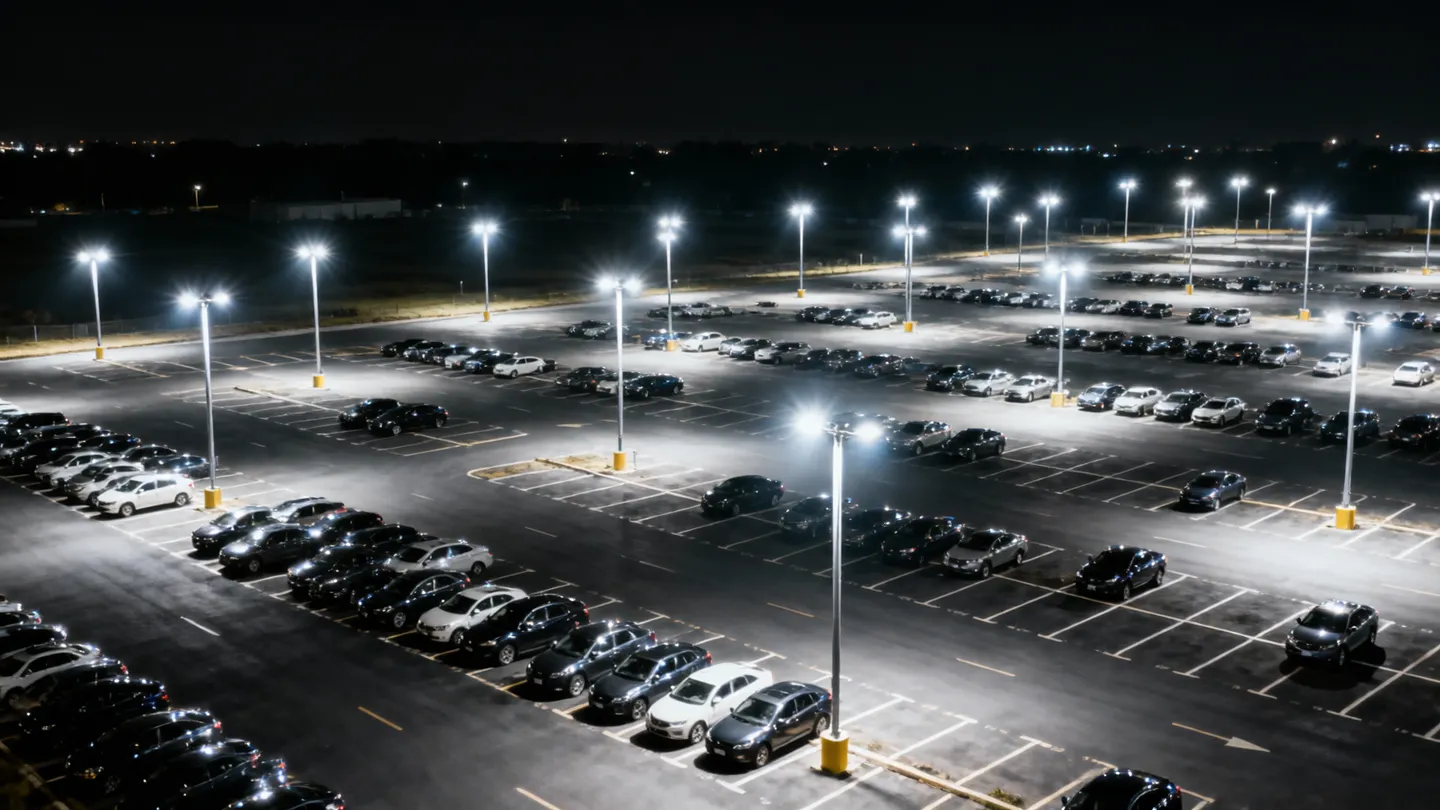

Uniform illumination for parking structures, logistics hubs, and industrial complexes. Asymmetric beam distribution eliminates dark spots while minimizing light trespass.
