Y Shaped Light Pole
- The original manufacturer of stainless steel light poles
- We'll give you the factory price directly
- Customization based on provided drawings is available

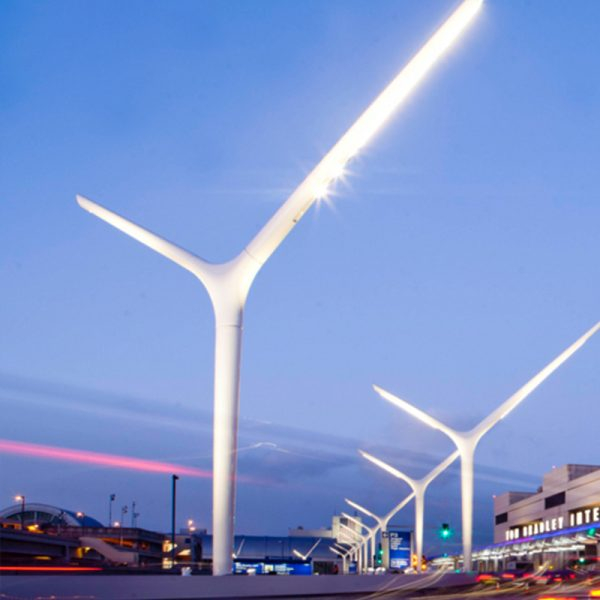

YLDG-Y Stainless Steel Y Shaped Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Y
- 304/L 316/L Stainless Steel
- 6 - 12 Meters
- 60 mm
- 255 mm
- 2.5 - 6.0 mm
- 180 KM/H
- 20 - 40 Feet
- 2.36 Inches
- 10 Inches
- 0.1 - 0.25 Inches
Stainless Steel Y Shaped Light Pole Specification
| MODEL | HEIGH | LEFT ARM HEIGHT | LEFT ARM WIDTH | RIGHT ARM HEIGHT | RIGHT ARM WIDTH |
|---|---|---|---|---|---|
| YLDG-Y1 | 4000 | 5500 | 3500 | 8000 | 2200 |
| YLDG-Y2 | 6000 | 7500 | 3500 | 10000 | 2200 |
| YLDG-Y3 | 8000 | 9500 | 3500 | 12000 | 2200 |
| YLDG-Y4 | 10000 | 11500 | 3500 | 14000 | 2200 |
Surface Treatment
1. Powder Coating
Purpose: Adds color, improves aesthetics, and provides an extra layer of protection.
Process: Electrostatic application of dry powder, then cured under heat.
Benefits:
– UV-resistant, preventing fading.
– Scratch and chip-resistant.
– Wide range of color options.
– Best for: Urban, coastal, or high-visibility areas.
2. Electroplating
Purpose: Improves corrosion resistance and adds a shiny metallic finish.
Process: Electrolytic deposition of metal (e.g., chrome, nickel, or zinc).
Benefits:
– High luster for decorative appeal.
– Extra corrosion protection.
– Best for: High-end architectural applications.
Description
Engineered for superior light distribution, our Y-Shape Light Pole features a distinctive bifurcated design that combines stainless steel durability with contemporary aesthetics. Perfect for wide-area lighting with visual impact.
Key Features
Patented Y-Branch Structure
– 40°-60° symmetrical split for balanced coverage
– Adjustable arm angles (custom geometries available)
– Integrated strain relief for cable management
Marine-Grade Construction
– 316L stainless steel (coastal/harsh environments)
– 304 stainless (standard urban applications)
– 8-12mm reinforced base plate
Premium Applications
– Highway interchange lighting
– Airport tarmac perimeter
– Iconic city center plazas
– Stadium entrance lighting
– Industrial complex roadways
Advanced Customization
– Asymmetric arm lengths for special layouts
– RGBW LED integration with DMX control
– Decorative crown elements
– Anti-climb textured surface
Engineering Support Includes:
– Finite Element Analysis (FEA) reports
– Foundation load calculations
– Lighting simulation models
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Y
- 304/L 316/L Stainless Steel
- 6-12 Meters
20-40 Feet - 60MM
2.36 Inches - 255MM
10 Inches - 2.5-6.0MM
0.1-0.25 Inches - 180KM/H
