Stainless Steel Davit Arm Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- Warranty ：
- YLDG-D
- 304/L 316/L Stainless Steel
- 3-12 Meters | 10-40 Feet
- 60MM | 2.36 Inches
- 255MM | 10 Inches
- 2.5-6.0MM | 0.1-0.25 Inches
- 180KM/H
- 10+ Years
Pole Specification
| MODEL | HEIGHTH | TOP OD | BASE OD | THICK | ARM L1 | DOOR HEIGHTH | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-D1 | 5000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 298x298x12 |
| YLDG-D2 | 6000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 298x298x12 |
| YLDG-D3 | 7000 | 76 | 166 | 4.0 | 1500 | 500 | 80×250 | 298x298x12 |
| YLDG-D4 | 8000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D5 | 9000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D6 | 10000 | 76 | 200 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
Surface Treatment
1. Powder Coating
Purpose: Adds color, improves aesthetics, and provides an extra layer of protection.
Process: Electrostatic application of dry powder, then cured under heat.
Benefits:
– UV-resistant, preventing fading.
– Scratch and chip-resistant.
– Wide range of color options.
– Best for: Urban, coastal, or high-visibility areas.
2. Electroplating
Purpose: Improves corrosion resistance and adds a shiny metallic finish.
Process: Electrolytic deposition of metal (e.g., chrome, nickel, or zinc).
Benefits:
– High luster for decorative appeal.
– Extra corrosion protection.
– Best for: High-end architectural applications.
Description

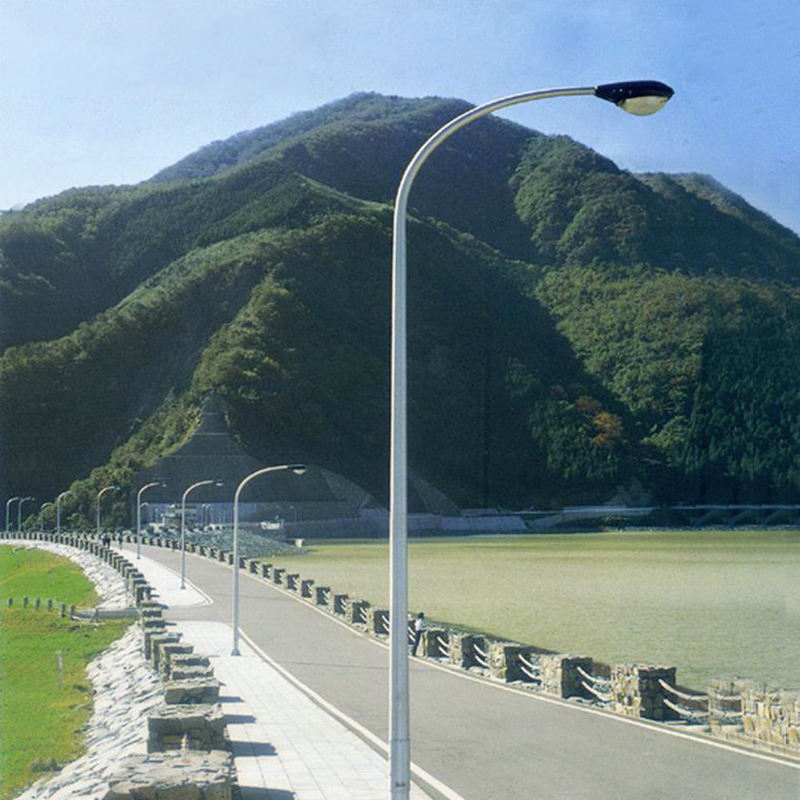

A stainless steel davit arm light pole combines durability and functionality, featuring a corrosion-resistant stainless steel construction (typically 304 or 316 grade) with an extended horizontal arm for optimal light projection.
Key Features:
Material: High-quality stainless steel for long-lasting, rust-free performance.
Design: Sturdy davit arm (overhang) for wider illumination coverage.
Applications: Streets, parking lots, docks, walkways, and perimeter lighting.
Benefits: Weather-resistant, low maintenance, and strong structural support.
Ideal for areas requiring side-mounted lighting with enhanced coverage. Let me know if you need specifications or customization options!
