- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-TP
- 201 304 316 Stainless Steel
- 3-12 Meters
- 60 MM
- 255 MM
- 2.5-6.0 MM
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches
Pole Specification
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|
| YLDG-TP1 | 3000 | 76 | 152 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP2 | 4000 | 76 | 152 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP3 | 5000 | 76 | 152 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP4 | 6000 | 76 | 152 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP5 | 7000 | 76 | 166 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP6 | 8000 | 76 | 166 | 4.0 | 500 | 80×250 | 298x298x12 |
| YLDG-TP7 | 9000 | 76 | 180 | 4.0 | 500 | 100×300 | 305x305x19 |
| YLDG-TP8 | 10000 | 76 | 200 | 4.0 | 500 | 100×300 | 305x305x19 |
Plating Colors
Description

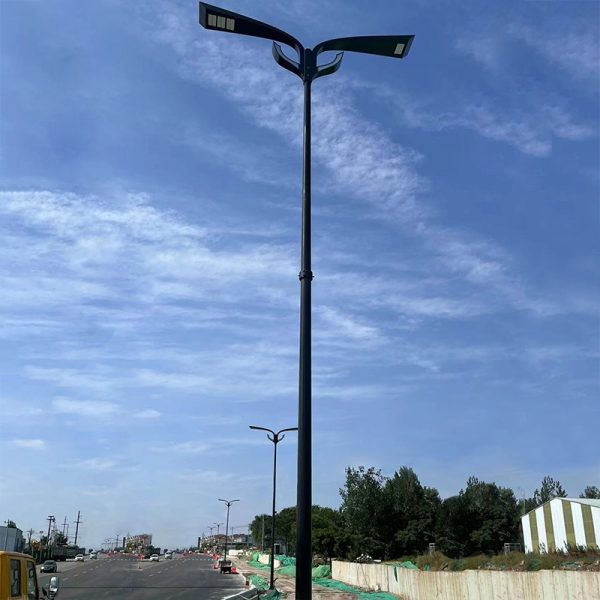

A stainless steel titanium plated light pole combines durability, corrosion resistance, and an attractive finish. Here’s a breakdown of its features and benefits:
1. Material Composition
– Base Material: High-quality stainless steel (typically 304 or 316 grade) for strength and corrosion resistance.
– Coating: A titanium plating (often via PVD—Physical Vapor Deposition) for enhanced aesthetics and extra protection.
2. Key Benefits
Corrosion Resistance – Stainless steel resists rust, while titanium plating adds an extra protective layer against harsh weather and salt (ideal for coastal areas).
Aesthetic Appeal – Titanium plating gives a sleek, metallic finish (gold, bronze, gunmetal, or iridescent hues) for modern urban landscapes.
Durability – Resistant to UV rays, scratches, and fading, maintaining appearance for years.
Low Maintenance – Unlike painted steel, it doesn’t require frequent repainting.
Eco-Friendly – No harmful coatings or peeling paint.
3. Common Applications
Urban streetscapes & pedestrian walkways
High-end commercial & residential areas
Coastal/industrial zones (due to salt & chemical resistance)
Architectural lighting (decorative & functional uses)
4. Considerations
Cost: More expensive than standard galvanized or powder-coated poles but offers longer lifespan.
Installation: Similar to other metal light poles but requires care to avoid damaging the titanium finish.
