- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-TS
- 6061 6063 T6 Aluminum Alloy201/304/316 Stainless SteelHDG Steel Q235/Q355
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches

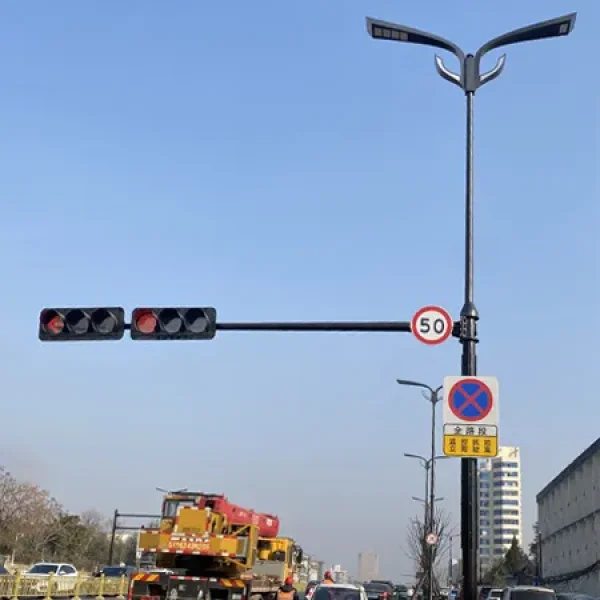

Traffic Light Pole Details
This is a made to order item. We will provide the customized services whether the quantities is above twenty pieces . Whether your needs include an attractive, decorative design or a more traditional traffic signal light structure, Yaolong Aluminium traffic light pole will not only meet your requirements for improved safety in our evermore busier roads and public spaces. They will also outperform any other pole when it comes to maintenance and flexibility of design.
Feature：
This traffic light pole produced from aluminum, has a 5 meter signal light arm which can be installed with three signal lights simultaneously. the lamp pole is 6 meters(20feet) high,with a 4mm (0.157inches) wall thickness.We also offer a complete line of standard steel traffic poles that combine functionality with clean, simple lines.
Available with standard fixed connection or with unique adjustable clamp-on connection
Straight or curved mast arms with and without additional luminaire arms
Complete packages tailored to your needs and load requirements
Pole：
The signal light arm and light pole shaft are both made from aluminum 6063 and heat treated to t6 temper .
Signal Light：
The traffic signal is fixed by screws or upon customer’s requirement. Other types of signal lights are available at a surcharge.
Anchor Base：
Base plate is square/round with slotted holes for anchor bolt and dimension as per client’s requirement.
Anchor bolts:
Anchor bolts per ASTM A576. Nuts washers and threaded portion of bolt are hot dip galvanized,Bolts are provided with four foundation bolts and flat washers.The top of bolts have an square locating plate.
Finish：
The finish for this traffic light pole with extension arm is specified as white power coated finished.Additional finished and colors are available upon request.
