25 Foot Aluminum Light Pole

A 25 foot aluminum light pole is a tall, slender, and durable post used to mount high-output lighting fixtures for broad outdoor illumination.

Simple Breakdown:

  • Purpose:  Raises powerful area lights high above the ground for safety and visibility.

  • Height:  25 feet from its base to the top (fixture adds extra height).

  • Material:  Made of aluminum, so it won’t rust and needs very little maintenance.

  • Common Use:  Ideal for lighting large parking lots, major roadways, big box store perimeters, and athletic/sports complexes where wide, powerful coverage is needed.

  • Structure: Typically a tapered, round pole with a thick, flanged base that gets bolted to a substantial concrete foundation for stability.

  • Welcome to contact us for more details.

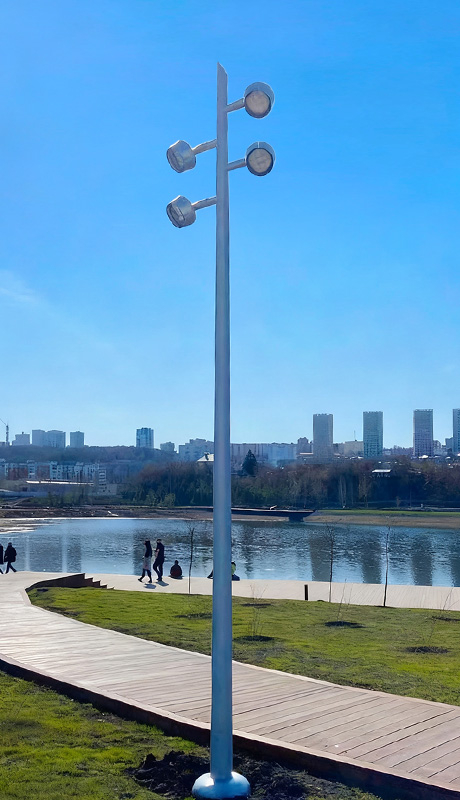

25 foot aluminum light pole

Pole Top

A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies

Handhole

A covered handhole with hardware and grounding provision are provided

Anchor Base

The anchor base is cast from A356 alloy aluminum.

The completed assembly is heat-treated to a T6 temper.

Aluminum nut covers are included with anchor base unless otherwise specified

MODELBASE ODBASE SIZETHICKHOLE SPACING
YLDG-PB1152260 x 26012210x210
YLDG-PB2166285 x 28519210x210
YLDG-PB3180305 x 30519210x210
YLDG-PB4200305 x 30519210x210
Base-Plate
Cast Aluminum Base Plate
Press Aluminium Base Plate
(Suitable for light poles not higher than 6 meters)

Anchor Bolts

Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.

Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end

Base Cover

Optional round or square base cover available as special orderprovided

Anchor Bolts
Base Cover

Surface Treatments

We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:

Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.

Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.

RAL COLORS
RAL COLORS
