Aluminum Davit Light Pole

Model:
Materials:
Height:
Min. Diameter:
Max. Diameter:
Wall Thickness:
Wind Resistant:

Aluminum Davit Light Pole Specification

The Davit Arm Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.

MODEL	HEIGHTH	TOP OD	BASE OD	THICK	ARM L1	DOOR HEIGHTH	DOOR SIZE	BASE SIZE
YLDG-D1	5000	76	152	4.0	1500	500	80×250	260x260x12
YLDG-D2	6000	76	152	4.0	1500	500	80×250	260x260x12
YLDG-D3	7000	76	166	4.0	1500	500	80×250	285x285x12
YLDG-D4	8000	76	180	4.0	1500	500	100×300	305x305x19
YLDG-D5	9000	76	180	4.0	1500	500	100×300	305x305x19
YLDG-D6	10000	76	200	4.0	1500	500	100×300	305x305x19

Pole Top

A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies

Handhole

A covered handhole with hardware and grounding provision are provided

Anchor Base

The anchor base is cast from A356 alloy aluminum.

The completed assembly is heat-treated to a T6 temper.

Aluminum nut covers are included with anchor base unless otherwise specified

MODEL	BASE OD	BASE SIZE	THICK	HOLE SPACING
YLDG-PB1	152	260 x 260	12	210x210
YLDG-PB2	166	285 x 285	19	210x210
YLDG-PB3	180	305 x 305	19	210x210
YLDG-PB4	200	305 x 305	19	210x210

Anchor Bolts

Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.

Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end

Base Cover

Optional round or square base cover available as special orderprovided

Surface Treatments

We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:

Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.

Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.

Premium Aluminum Davit Light Poles: Elegant Design Meets Superior Performance

Discover our exceptional range of Aluminum Davit Light Poles, engineered to deliver both aesthetic elegance and exceptional lighting performance. Crafted from premium-grade 6063-T6 aluminum alloy, these self-bending poles feature a distinctive curved arm design that combines modern aesthetics with outstanding durability and reliability

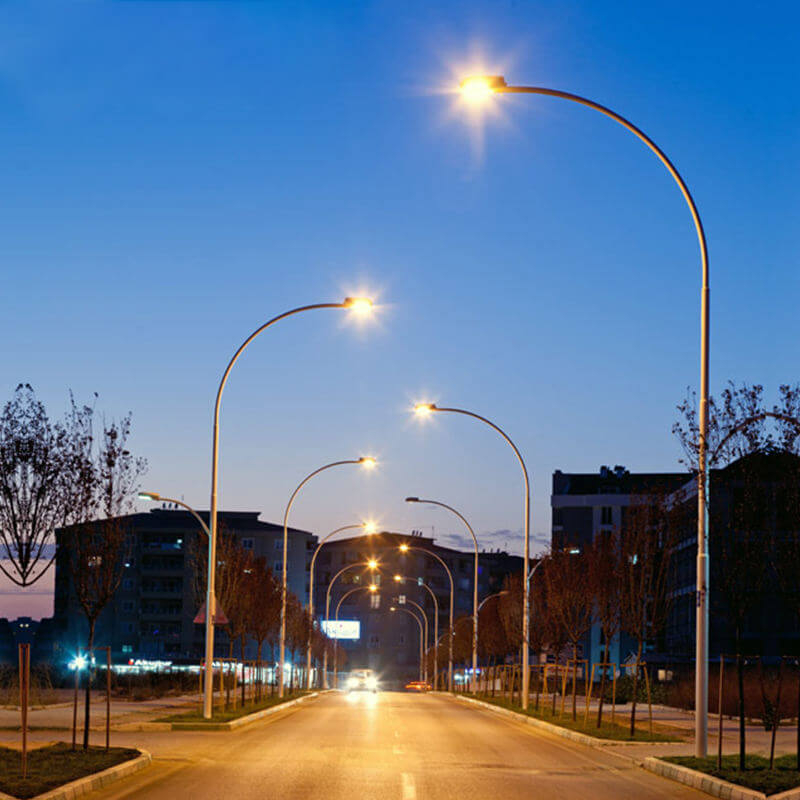

What is an Aluminum Davit Light Pole?

An aluminum davit light pole is a specialized lighting structure featuring a gracefully curved or bent arm that extends outward from the main pole shaft. This elegant design, also known as a cantilever or self-bending pole, allows for optimal light distribution while maintaining a sleek, contemporary appearance. The davit configuration is particularly popular in urban streetscapes, pedestrian pathways, and commercial areas where both functionality and visual appeal are essential

Key Features and Benefits

Premium 6063-T6 Aluminum Alloy Construction: Each aluminum davit light pole is meticulously fabricated from high-grade 6063-T6 aluminum alloy. This superior material is renowned for its exceptional strength-to-weight ratio, outstanding corrosion resistance, and superior workability. Unlike traditional steel poles, aluminum naturally resists rust and environmental degradation, ensuring extended longevity with minimal maintenance requirements

Versatile Height Range: Available in a flexible height range of 6 to 12 meters (approximately 20 to 40 feet), our davit light poles accommodate diverse project requirements, from residential neighborhoods and commercial districts to major urban corridors and public parks. This adaptability ensures appropriate illumination intensity and visual harmony for any application

Elegant Curved Arm Design: The signature curved davit arm extends gracefully from the pole shaft, creating an elegant silhouette that enhances the visual appeal of any streetscape. This distinctive design not only provides superior light distribution but also reduces visual clutter while maintaining structural integrity and stability

Lightweight and Installation Efficiency: The inherent lightweight nature of aluminum simplifies transportation, handling, and installation compared to steel alternatives. This characteristic significantly reduces labor costs and project timelines without compromising structural performance or safety standards

Optimal Light Distribution: The outward-extending davit arm positions the luminaire away from the pole shaft, enabling superior light distribution patterns and reduced shadows. This configuration is particularly effective for illuminating wide areas such as streets, parking facilities, and pedestrian zones

Applications and Use Cases

Urban Street Lighting: Aluminum davit light poles are ideal for modern street lighting systems where aesthetic appeal and efficient illumination are equally important. Their elegant curved design complements contemporary urban architecture while providing reliable, uniform lighting coverage.

Pedestrian Pathways and Parks: The graceful profile of davit poles makes them perfect for parks, promenades, and pedestrian walkways where both safety and visual aesthetics enhance the overall environment.

Parking Lots and Facilities: The superior light distribution provided by the davit arm configuration makes these poles highly effective for parking areas and commercial facilities requiring comprehensive illumination.

Why Choose Our 6063-T6 Aluminum Davit Light Poles?

Investing in our 6063-T6 aluminum davit light poles means choosing a product that represents the pinnacle of quality, durability, and design excellence. These poles combine the aesthetic elegance of the davit design with the proven performance characteristics of premium aluminum alloy construction. With exceptional resistance to environmental factors, minimal maintenance requirements, and superior structural integrity, our davit light poles represent a smart, long-term investment for any lighting project .

The curved arm design not only provides superior functionality but also creates a distinctive visual statement that enhances the character of any streetscape. Whether for municipal infrastructure, commercial development, or residential enhancement, our aluminum davit light poles deliver reliable performance and enduring beauty.
