Stainless Steel Tapered Light Pole
- The original manufacturer of stainless steel light poles
- We'll give you the factory price directly
- Customization based on provided drawings is available
YLDG-Z Stainless Steel Tapered Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Z
- 304/L 316/L Stainless Steel
- 3-12 Meters
- 60MM
- 255MM
- 2.5-6.0MM
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches
Stainless Steel Tapered Light Pole Specification
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|
| YLDG-Z1 | 3000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z2 | 4000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z3 | 5000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z4 | 6000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z5 | 7000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z6 | 8000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z7 | 9000 | 76 | 180 | 4.0 | 500 | 100×300 | 305x305x19 |
| YLDG-Z8 | 10000 | 76 | 200 | 4.0 | 500 | 100×300 | 305x305x19 |
Surface Treatment
1. Powder Coating
Purpose: Adds color, improves aesthetics, and provides an extra layer of protection.
Process: Electrostatic application of dry powder, then cured under heat.
Benefits:
– UV-resistant, preventing fading.
– Scratch and chip-resistant.
– Wide range of color options.
– Best for: Urban, coastal, or high-visibility areas.
2. Electroplating
Purpose: Improves corrosion resistance and adds a shiny metallic finish.
Process: Electrolytic deposition of metal (e.g., chrome, nickel, or zinc).
Benefits:
– High luster for decorative appeal.
– Extra corrosion protection.
– Best for: High-end architectural applications.
Description

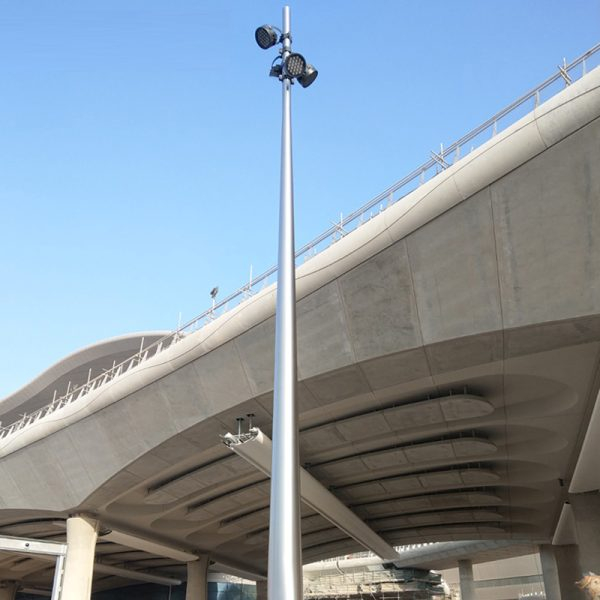

A stainless steel tapered light pole is a sleek, durable, and corrosion-resistant lighting solution designed for outdoor applications. Its tapered shape provides structural strength and wind resistance, while stainless steel (typically 304 or 316 grade) ensures long-lasting performance in harsh environments.
Key Features:
Material: High-quality stainless steel (rust-proof, low maintenance).
Design: Tapered for stability and modern aesthetics.
Applications: Streets, parks, highways, parking lots, and architectural lighting.
Benefits: Weather-resistant, long lifespan, and elegant appearance.
Ideal for projects requiring both durability and visual appeal. Let me know if you need specifications or supplier recommendations!
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Z
- 304/L 316/L Stainless Steel
- 3-12 Meters
10-40 Feet - 60MM
2.36 Inches - 255MM
10 Inches - 2.5-6.0MM
0.1-0.25 Inches - 180KM/H
