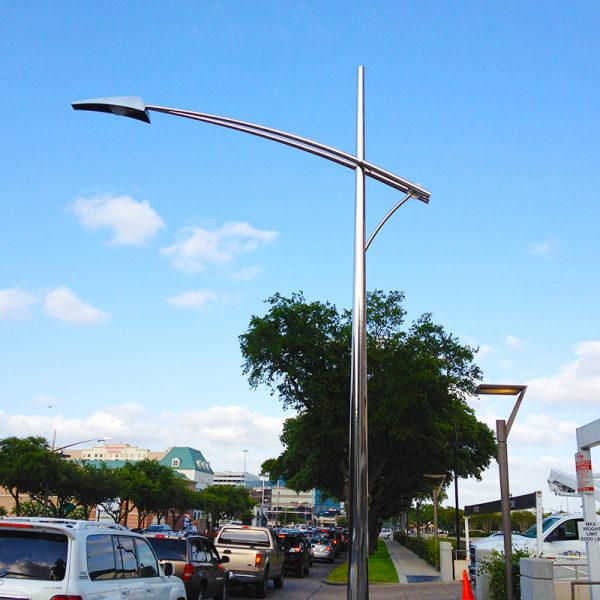

YLDG-L Stainless Steel Single Arm Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-L
- 304/L 316/L Stainless Steel
- 3-12 Meters | 10-40 Feet
- 60MM | 2.36 Inches
- 255MM | 10 Inches
- 2.5-6.0MM | 0.1-0.25 Inches
- 180KM/H
Stainless Steel Single Arm Light Pole Specification
| MODEL | HEIGHT | TOP OD | BASE OD | OD | ARM | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|---|---|
| YLDG-L1 | 5000 | 80 | 152 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L2 | 6000 | 80 | 152 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L3 | 7000 | 80 | 166 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L4 | 8000 | 80 | 180 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
| YLDG-L5 | 9000 | 80 | 180 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
| YLDG-L6 | 10000 | 80 | 200 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
Surface Treatment
1. Powder Coating
Purpose: Adds color, improves aesthetics, and provides an extra layer of protection.
Process: Electrostatic application of dry powder, then cured under heat.
Benefits:
– UV-resistant, preventing fading.
– Scratch and chip-resistant.
– Wide range of color options.
– Best for: Urban, coastal, or high-visibility areas.
2. Electroplating
Purpose: Improves corrosion resistance and adds a shiny metallic finish.
Process: Electrolytic deposition of metal (e.g., chrome, nickel, or zinc).
Benefits:
– High luster for decorative appeal.
– Extra corrosion protection.
– Best for: High-end architectural applications.
Description
Our Stainless Steel Single Arm Light Pole combines minimalist design with rugged stainless steel performance, offering reliable illumination for modern streetscapes. Engineered from marine-grade 304/316 stainless steel, it delivers decades of maintenance-free service in any environment.
Key Features
Ultra-Durable Construction
– 304 (urban) or 316 (coastal/industrial) stainless steel options
– Brushed satin finish standard (optional powder coating)
– Seamless TIG welding for clean aesthetics
Optimized Performance
– 6-12 meter standard heights (custom lengths available)
– 45° angled arm for optimal road coverage
– 150km/h wind rating with reinforced base
Smart City Ready
– Pre-wired for IoT sensors and smart controls
– Concealed cable channels
– 5G antenna mounting options
Technical Specifications
– Wall Thickness: 4-8mm (tapered design)
– Mounting: Flange or direct burial
– Load Capacity: Up to 80kg luminaires
– Finish: Self-passivating for rust resistance
Ideal Applications
– Urban street lighting
– Residential area pathways
– Parking lot perimeter lighting
– Campus and corporate parks
– Transit station platforms
Why Choose Our Single Arm Pole?
→ 30% lighter than galvanized steel
→ Zero maintenance corrosion resistance
→ Plug-and-play smart city integration
→ 15-year structural warranty
Custom Options:
– Decorative crowns or finials
– Luminaire mounting adapters
– Anti-vandalism fasteners
– Custom powder coat colors
