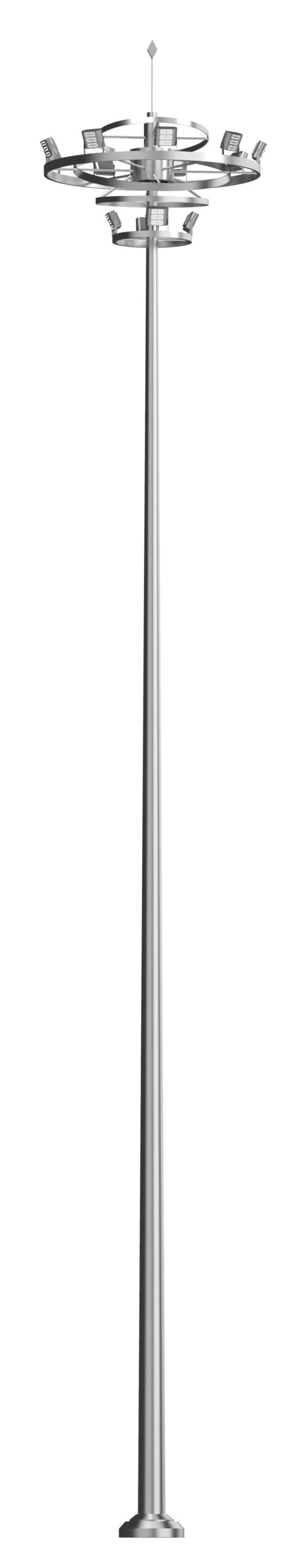

High Mast Flood Light Pole

A High Mast Flood Light Pole is a specialized piece of outdoor lighting infrastructure engineered to illuminate vast, expansive areas with powerful, uniform light from a significant height. Unlike standard streetlights, which are typically between 8 and 15 meters tall, high mast systems are defined by their towering height, generally ranging from 20 meters (65 feet) to over 45 meters (150 feet). Their primary purpose is to replace a multitude of shorter poles by consolidating lighting into a single, centralized point, thereby achieving unparalleled efficiency and coverage for large-scale venues where safety, security, and high visibility are paramount.

The most defining characteristic of these structures is their exceptional height, which serves a critical optical function. By positioning the light source far above the area to be lit, the system minimizes extreme contrasts between bright spots and deep shadows, creating a more even and diffuse illumination. This reduces glare for users of the space, whether they are drivers on a highway interchange, pilots on a tarmac, or players on a sports field, as the light is cast downward at a less direct angle. The elevated position allows a single pole to cover an area that would otherwise require dozens of shorter poles, eliminating visual clutter and potential obstacles. This is especially crucial in locations like container yards or freight terminals, where large cranes and stacking equipment require unobstructed maneuverability.

To service these immense heights, high mast poles are equipped with a lowering device, a critical engineering feature for maintenance and lamp replacement. Instead of requiring a technician to ascend the pole in a dangerous and time-consuming maneuver, the entire luminaire assembly, known as the “luminaire ring” or “bucket,” is winched down to ground level safely and efficiently. This system typically consists of a motorized winch housed in a base cabinet and a series of cables or chains. The luminaire ring itself is a robust circular or hexagonal frame that houses multiple high-wattage floodlights, often Metal Halide (HID) or, increasingly, cutting-edge LED fixtures. The number of fixtures can vary from four to over twenty-four, depending on the size of the area and the required light levels.

The construction of the pole itself is a feat of engineering designed to withstand immense environmental stresses. While made from materials like steel for its superior strength-to-weight ratio, aluminum and steel are also common. The pole is always a tapered, tubular monopole, which offers excellent aerodynamic properties to resist wind loads. Its foundation is perhaps its most crucial component; a massive reinforced concrete footing, several meters deep and wide, is required to act as a counterweight and anchor, preventing the colossal lever arm of the pole from tipping over in severe weather. The entire structure, from foundation to finial, is meticulously calculated to endure hurricane-force winds, ice loading, and seismic activity.

The applications for High Mast Flood Lighting are specific to large, open-area venues that require blanket illumination. They are the standard for lighting major motorway interchanges, cloverleafs, and toll plazas, where they provide consistent visual guidance and enhance driver safety across complex lane patterns. In the world of logistics, they are indispensable at rail yards, port terminals, and large trucking depots, enabling 24/7 operational security and safety. Furthermore, they are the preferred solution for illuminating expansive sports complexes, such as football stadiums’ external parking lots and FIFA-sanctioned soccer practice fields, as well as securing the perimeter of industrial plants and airport aprons where planes are serviced. In essence, the High Mast Flood Light Pole is a testament to functional engineering, representing the convergence of structural, mechanical, and electrical design to master the challenge of lighting the night on a grand scale.
