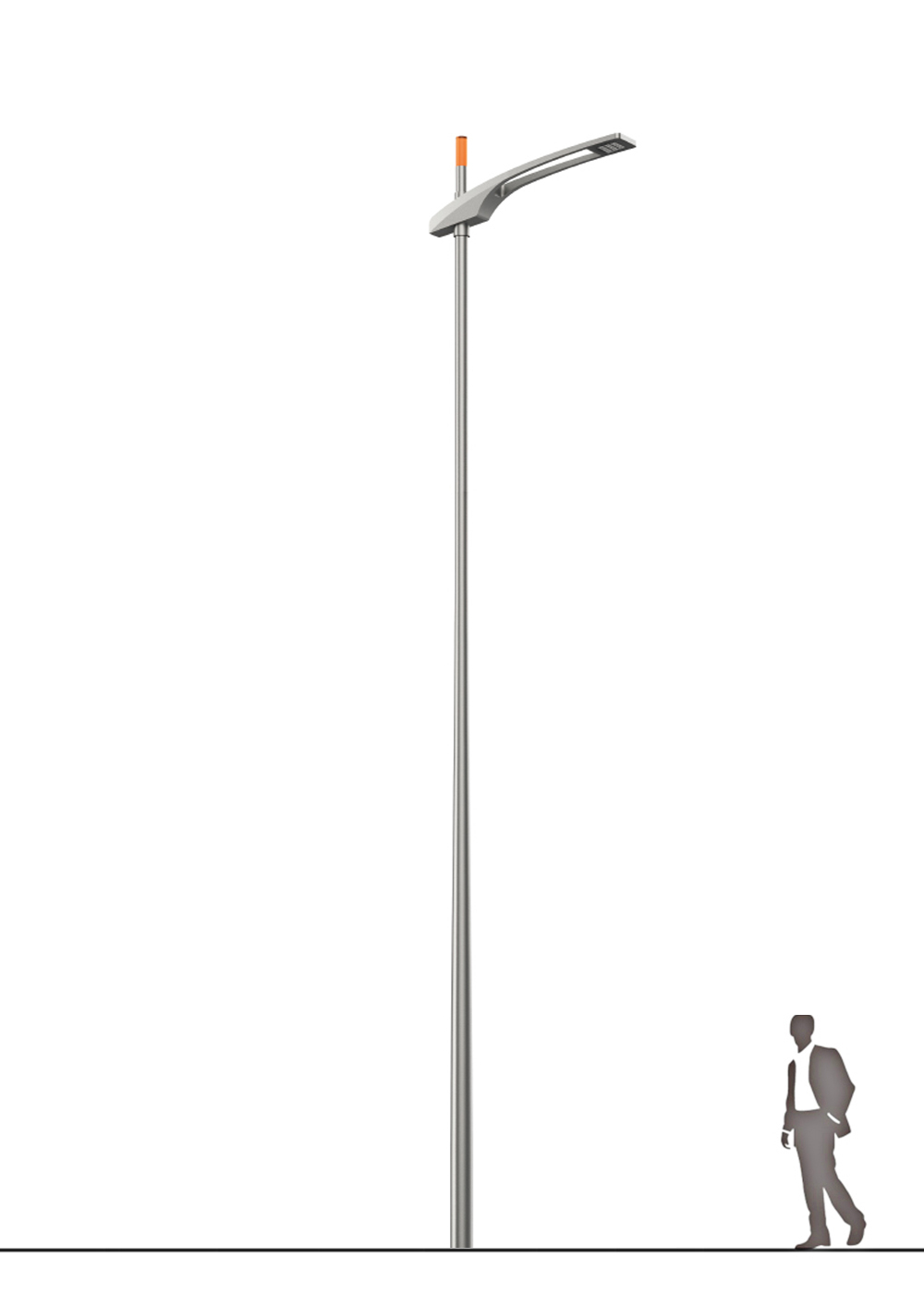

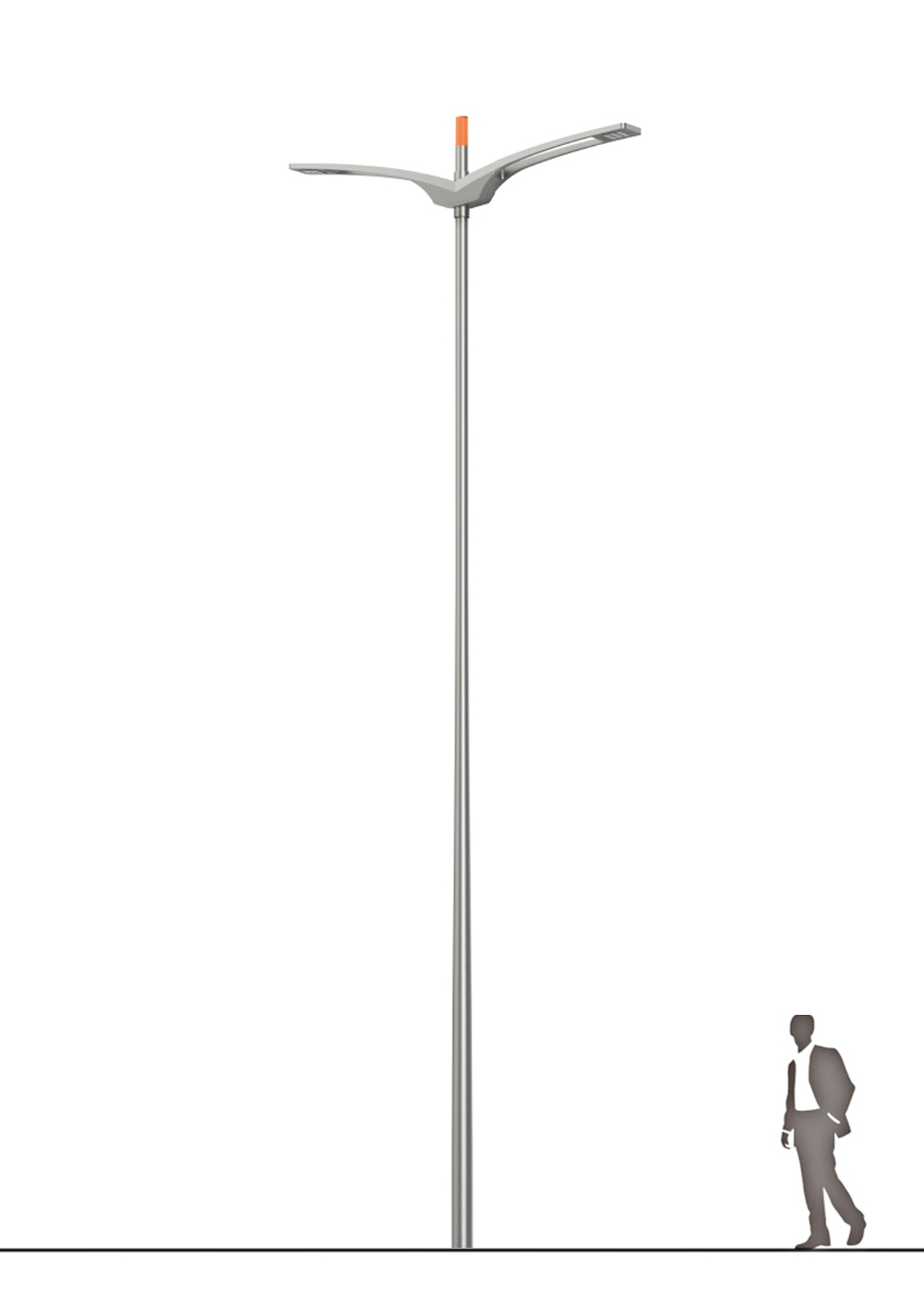

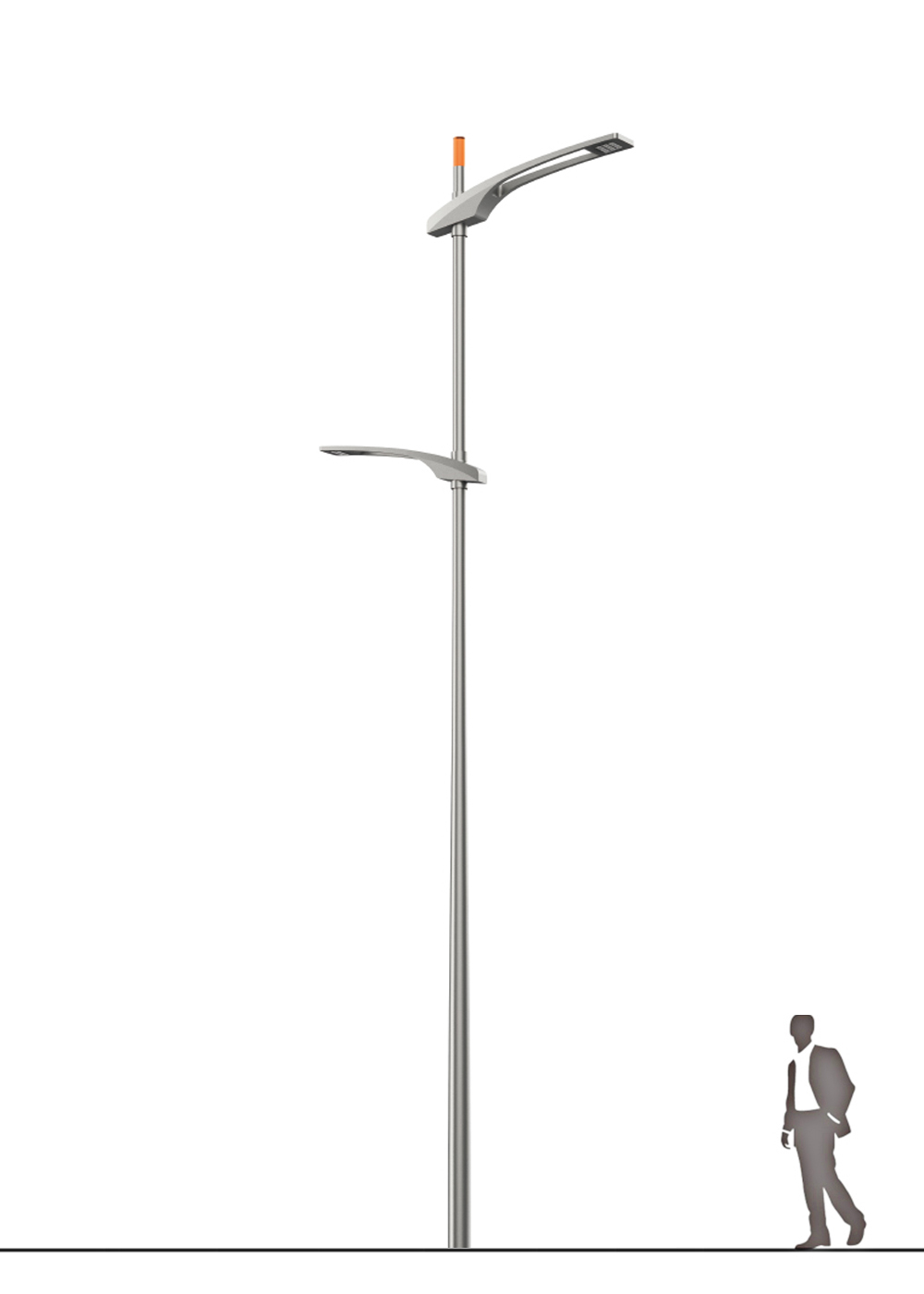

RL012 Aluminum Street Lamp Pole
Product Description
The design of this lamp is extracted from the oriole element, the lamp arm lamp is integrated, simple and fashionable
The whole is made of aluminum alloy or stainless steel surface spraying treatment
Light source is LED module 60W/group can adjust the number of units according to road conditions
Color temperature : 3000K-5000K
Color index : ≥Ra70
Protection level : IP67
Pole Specification
| Material | Maximum diameter | Minimum diameter | wall thickness (t/mm) | Height range (H/m) | Upper caliber (D1/mm) | Lower caliber (D2/mm） | Base size mm |
| Aluminium alloy+Q235 | 210mm | 150mm | 5 | 8≤H≤10 | 130 | 210 | 400*400 |
| 210mm | 150mm | 5 | 10≤H≤12 | 150 | 210 | 400*400 | |
| 210mm | 150mm | 5 | 10≤H≤12 | 150 | 210 | 400*400 |
