RL003 Aluminum Single-arm Light Pole
Product Description
The integrated design of this street lamp, the lamp is perfectly combined with the light pole from thick to thin, modern and concise
The whole is made of aluminum alloy or stainless steel surface spraying treatment
Light source is LED module 60W/group can adjust the number of units according to road conditions
Color temperature : 3000K-5000K
Color index : ≥Ra70
Protection level : IP67

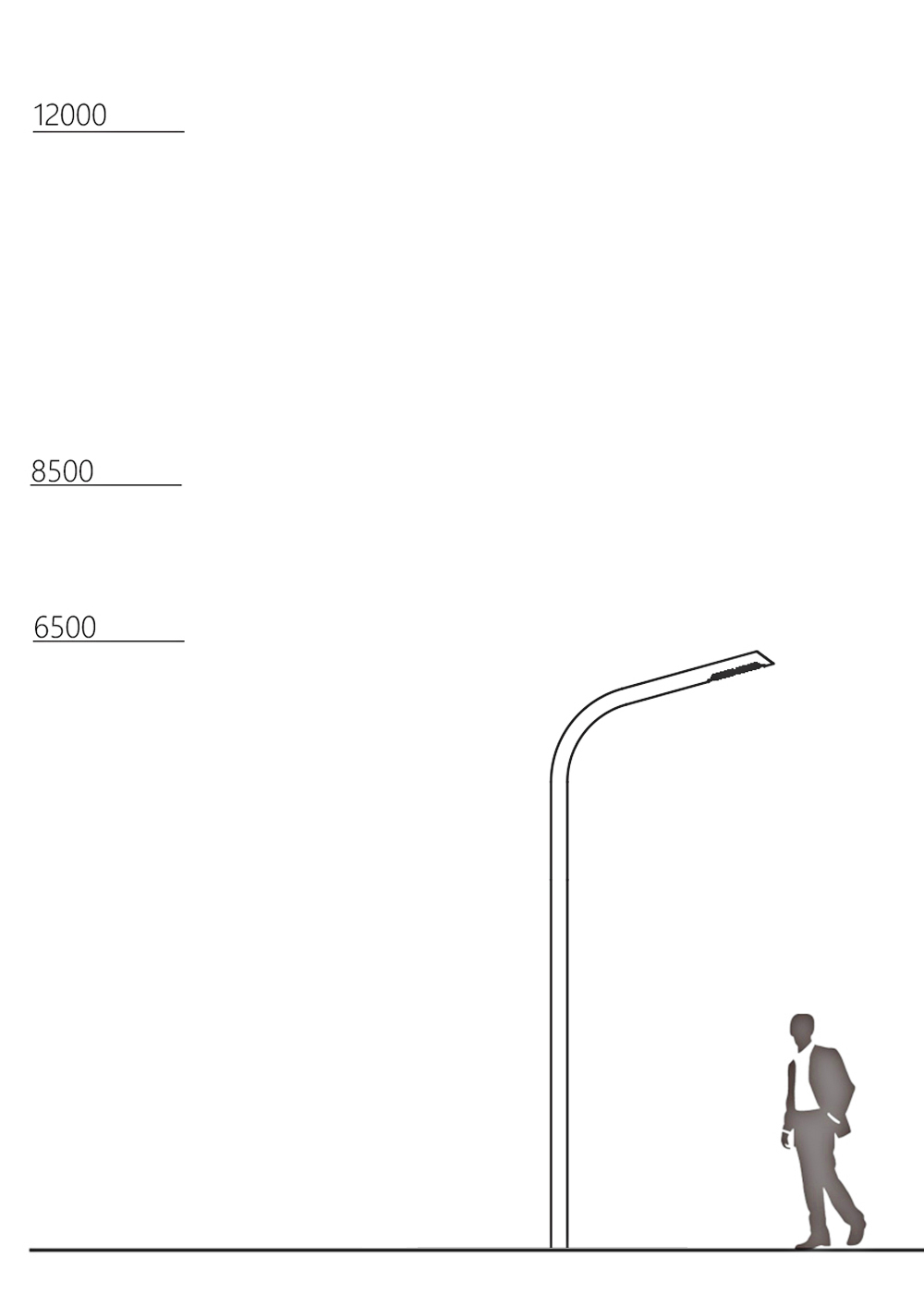

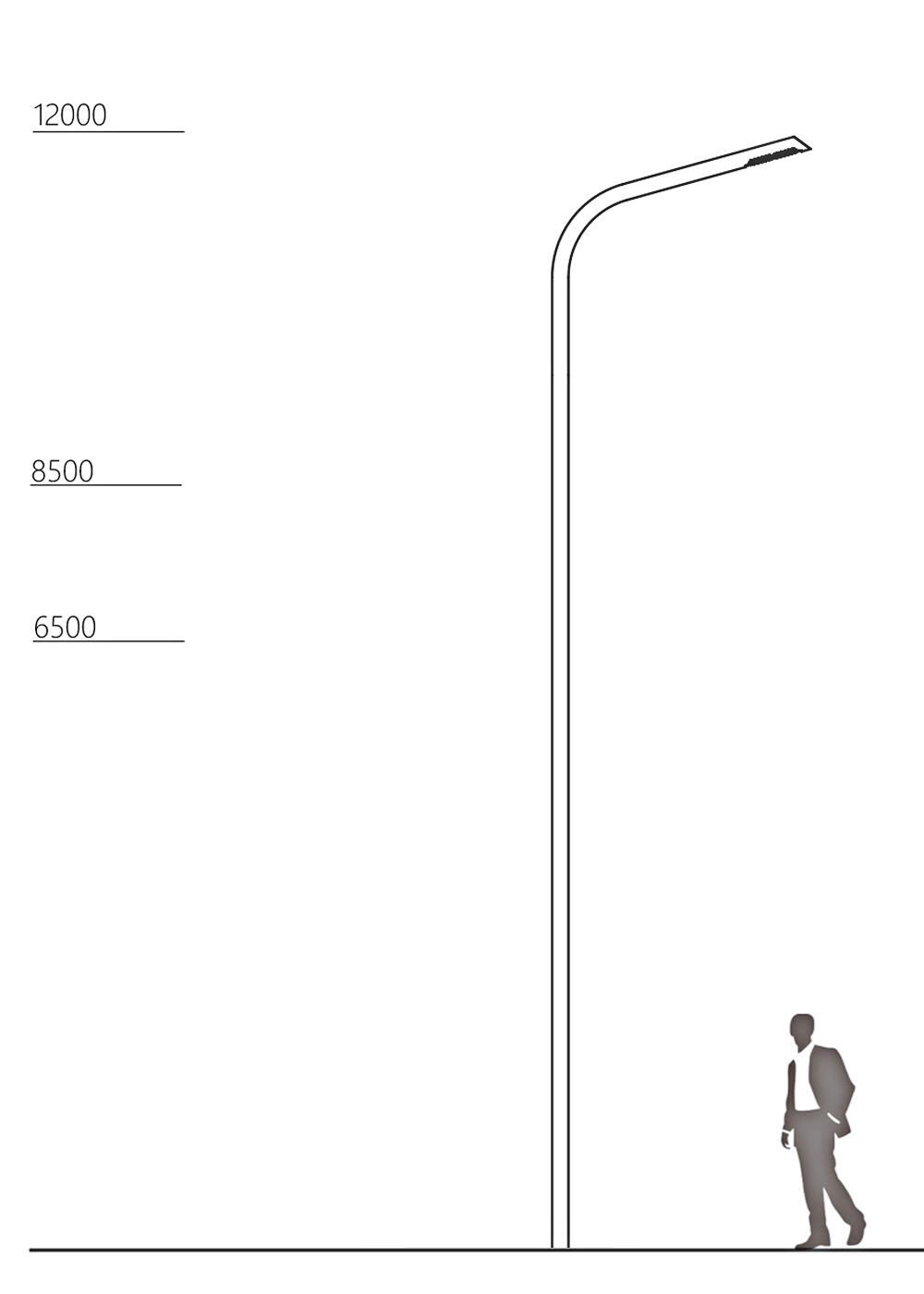

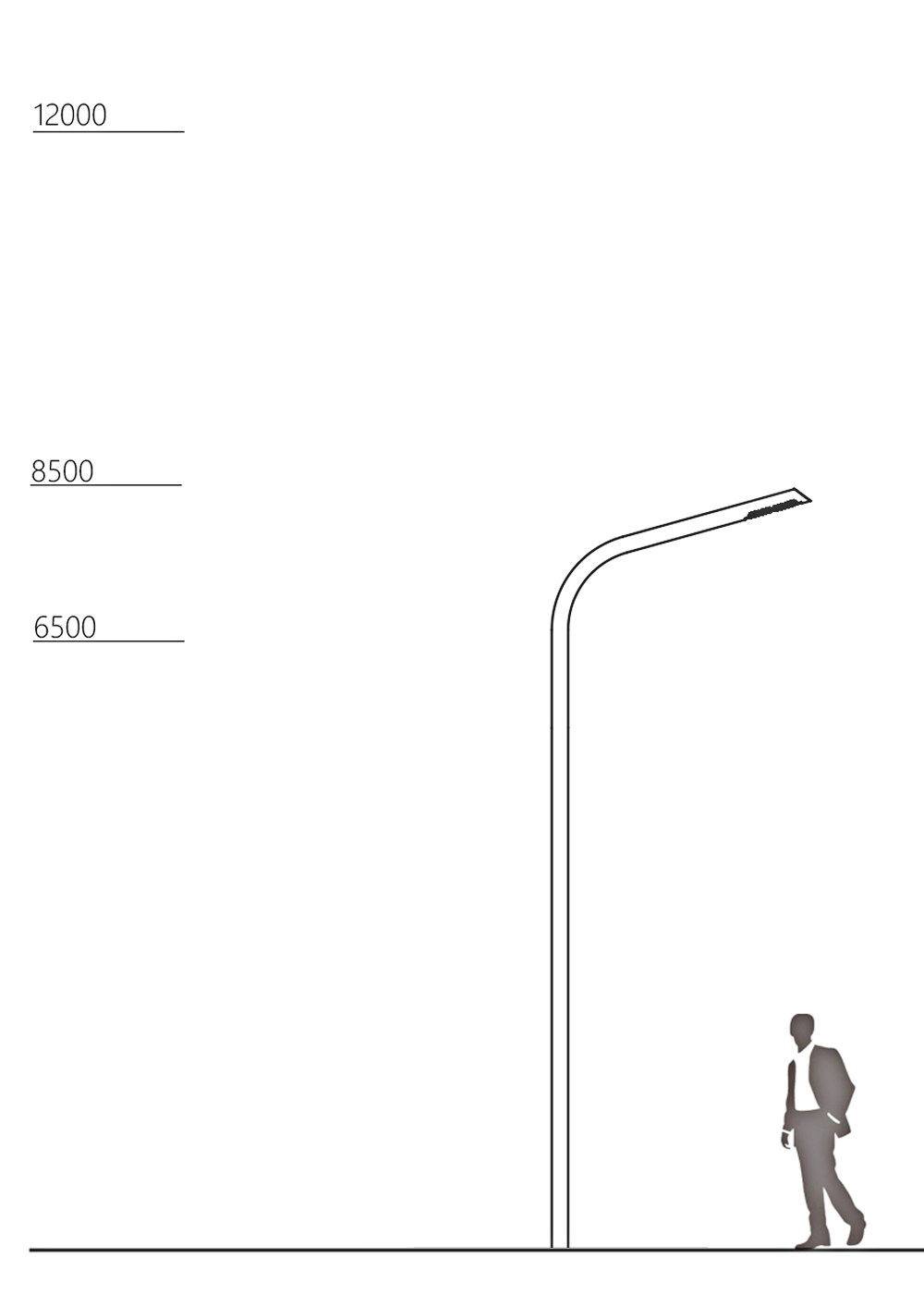

Pole Specification
| Material | diameter Maximum | diameter Minimum | Wall thickness t/mm | Height Range H/m | Upper Caliber D1/mm | Lower Caliber D2/mm | Base size mm |
| Aluminium alloy | 127mm | 100mm | 3 | 3.5≤H≤6 | 110*160 | 127 | 300*300 |
| 166mm | 110mm | 3.5~4 | 6.5≤H≤8.5 | 120*170 | 166 | 300*300 | |
| 210mm | 130mm | 5 | 9≤H≤12 | 140*230 | 210 | 400*400 |
