YLDG-K Aluminum Curved Arms Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-K
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters | 10-40 Feet
- 60MM | 2.36 Inches
- 255MM | 10 Inches
- 2.5-6.0MM | 0.1-0.25 Inches
- 180KM/H
Curved Arms Light Pole Specification
The Curved Arms Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.

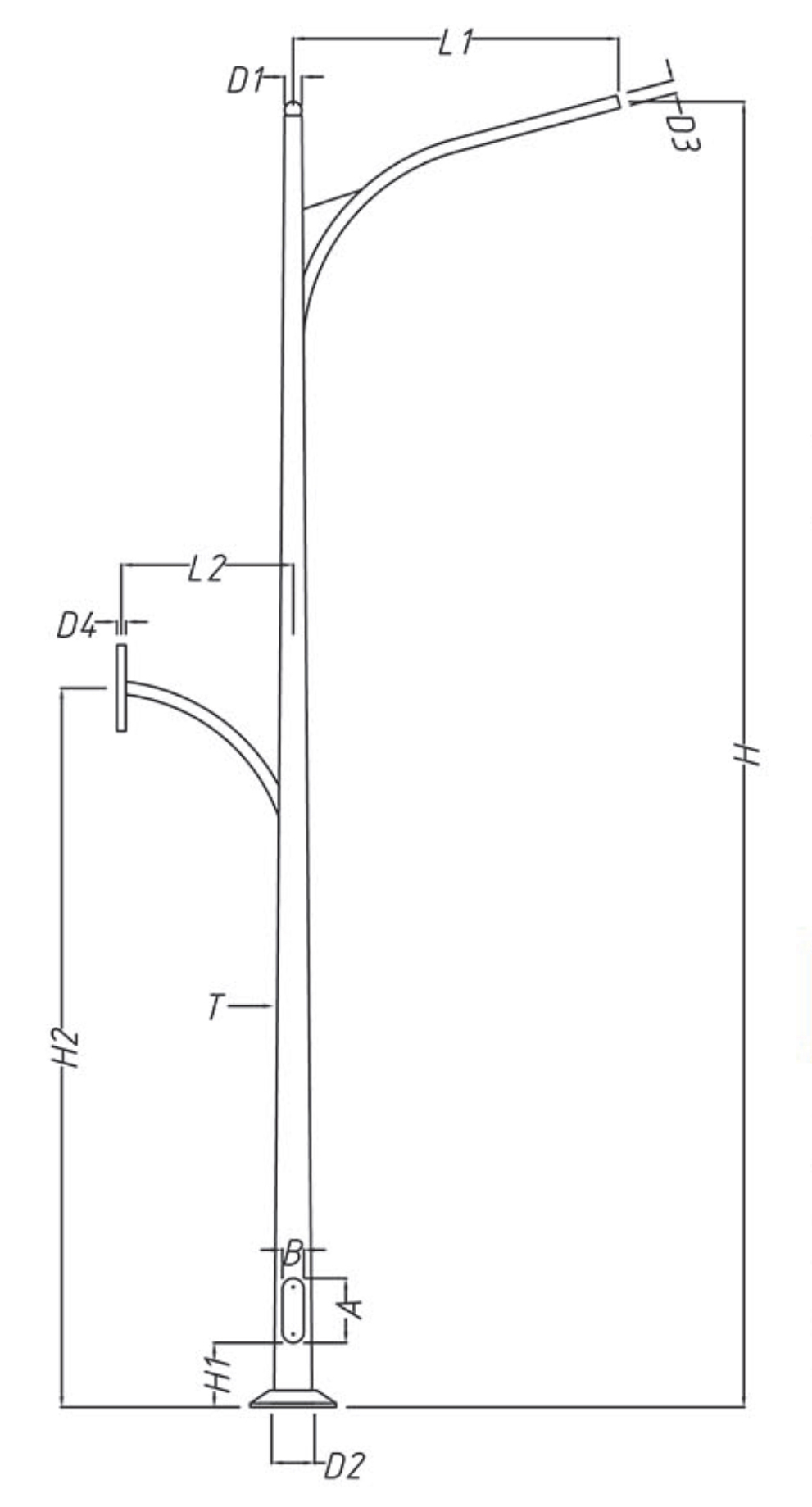

| MODEL | HEIGHT | TOP OD | BASE OD | OD | HEIGHT2 | ARM L1 | ARM L2 | THICK | BASE SIZE |
|---|---|---|---|---|---|---|---|---|---|
| YLDG-K1 | 5000 | 76 | 152 | 60 | 3000 | 1500 | 800 | 4.0 | 298x298x12 |
| YLDG-K2 | 6000 | 76 | 152 | 60 | 4000 | 1500 | 800 | 4.0 | 298x298x12 |
| YLDG-K3 | 7000 | 76 | 166 | 60 | 5000 | 1500 | 800 | 4.0 | 298x298x12 |
| YLDG-K4 | 8000 | 76 | 180 | 60 | 6000 | 1500 | 800 | 4.0 | 305x305x19 |
| YLDG-K5 | 9000 | 76 | 180 | 60 | 7000 | 1500 | 800 | 4.0 | 305x305x19 |
| YLDG-K6 | 10000 | 76 | 200 | 60 | 8000 | 1500 | 800 | 4.0 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided

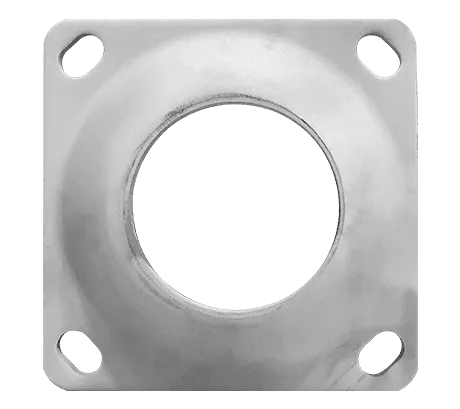

Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 298x298 | 12 | 210x210 |
| YLDG-PB2 | 166 | 298 x298 | 12 | 210x210 |
| YLDG-PB3 | 180 | 305 x305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x308 | 19 | 210x210 |

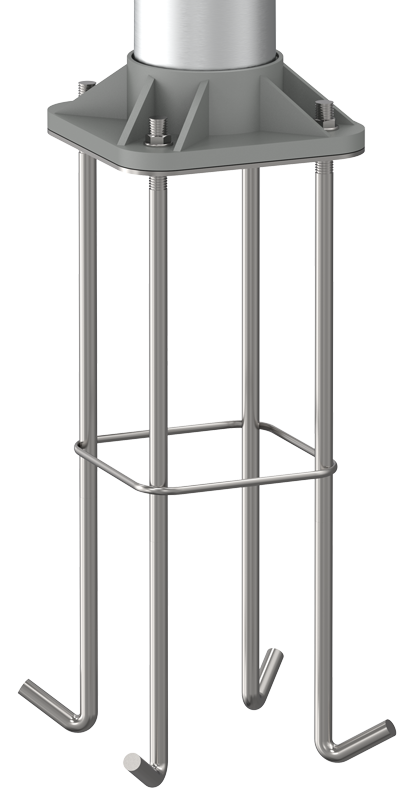

Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in accordance with Landmark’s Specifications. Additional finish options available upon request
Description of High and Low Double Curved Arms Light Pole
A High and Low Double Curved Arms Light Pole is a type of light pole that features two curved arms of different heights extending from the main pole. The “high double curved arm” and the “low double curved arm” provide a unique aesthetic appeal while serving functional purposes in lighting design.
The high double curved arm is positioned at a higher level on the pole, which allows for wider light distribution and coverage over a larger area. It is ideal for illuminating expansive spaces such as parking lots, parks, or roadways.
On the other hand, the low double curved arm, situated closer to the ground, is suitable for providing more focused lighting on specific areas, pathways, or landscaping features. It can create a softer ambiance or accentuate certain architectural elements.
These double curved arms light poles are not only functional but also add a touch of elegance and sophistication to outdoor environments. The aluminum construction ensures durability, corrosion resistance, and lightweight properties, making them suitable for various outdoor lighting applications.
The unique design of high and low double curved arm aluminum light poles allows for creativity and customization in lighting layout and distribution, enhancing the visual appeal of the illuminated space.
