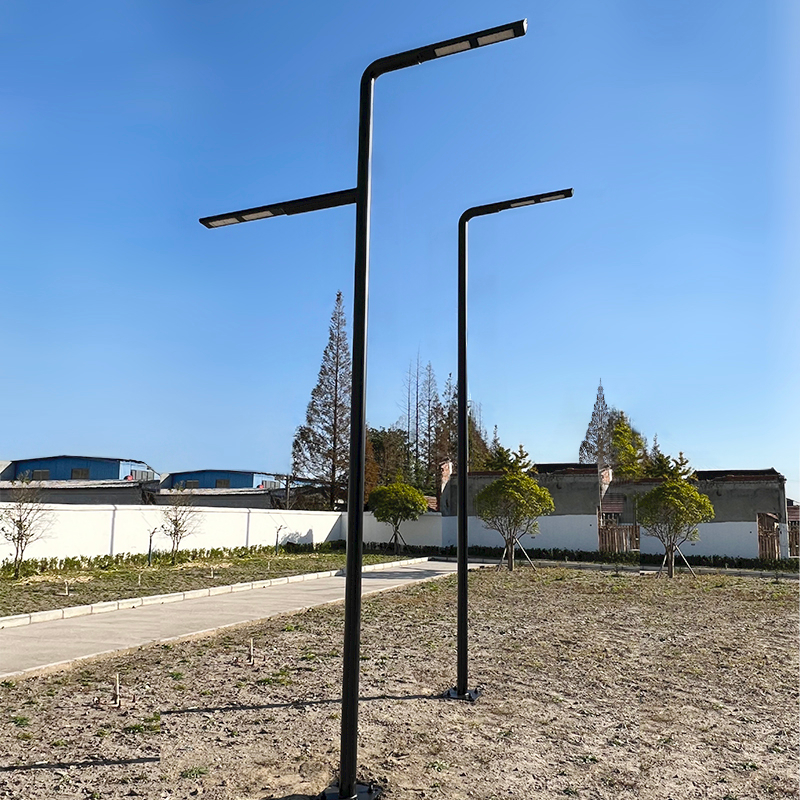

Aluminum High & Low Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-G
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches
High and Low Arms Light Pole Specification
The High and Low Arms Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | ARM L1 | ARM L2 | DOOR HEIGHT | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-G1 | 5000 | 76 | 152 | 4.0 | 1500 | 800 | 500 | 298x298x12 |
| YLDG-G2 | 6000 | 76 | 152 | 4.0 | 1500 | 800 | 500 | 298x298x12 |
| YDG-G3 | 7000 | 76 | 166 | 4.0 | 1500 | 800 | 500 | 298x298 x12 |
| YLDG-G4 | 8000 | 76 | 180 | 4.0 | 1500 | 800 | 500 | 305x305 x19 |
| YLDG-G5 | 9000 | 76 | 180 | 4.0 | 1500 | 800 | 500 | 305x305x19 |
| YLDG-G6 | 10000 | 76 | 200 | 4.0 | 1500 | 800 | 500 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:
Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.
Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.
