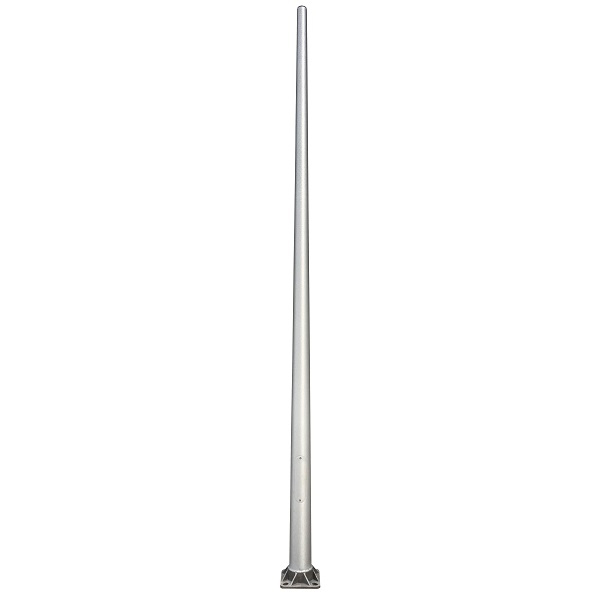

YLDG-Z 6063 T6 Aluminum Tapered Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Z
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches

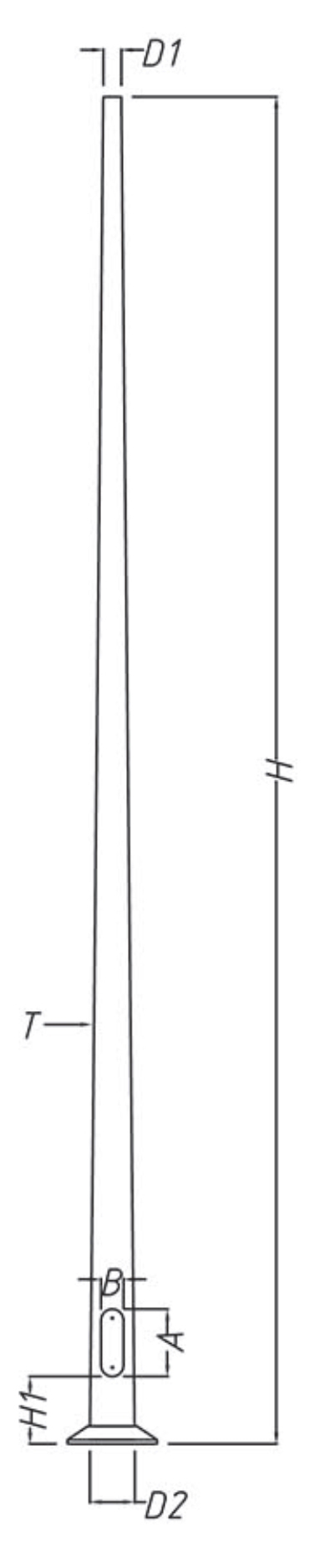

Specification
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|
| YLDG-Z1 | 3000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z2 | 4000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z3 | 5000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z4 | 6000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z5 | 7000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z6 | 8000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z7 | 9000 | 76 | 180 | 4.0 | 500 | 100×300 | 305x305x19 |
| YLDG-Z8 | 10000 | 76 | 200 | 4.0 | 500 | 100×300 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies

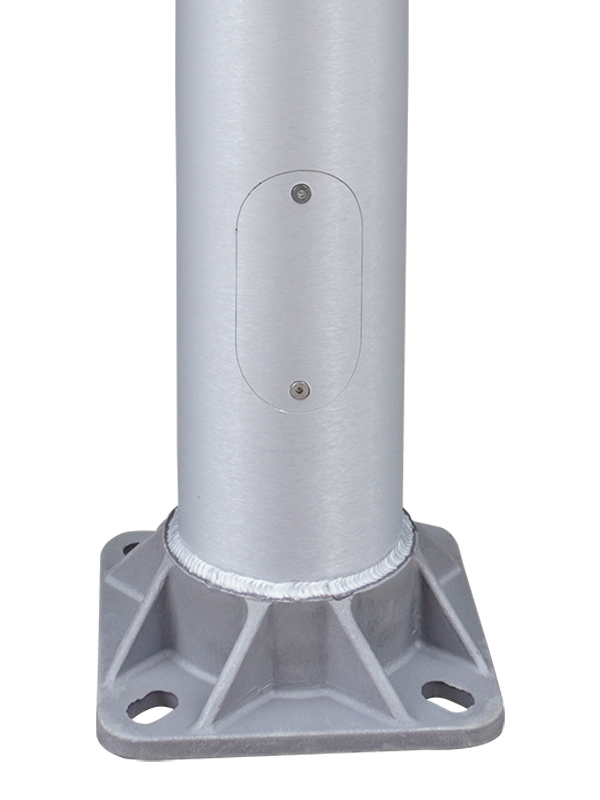

Handhole
A covered handhole with hardware and grounding provision are provided

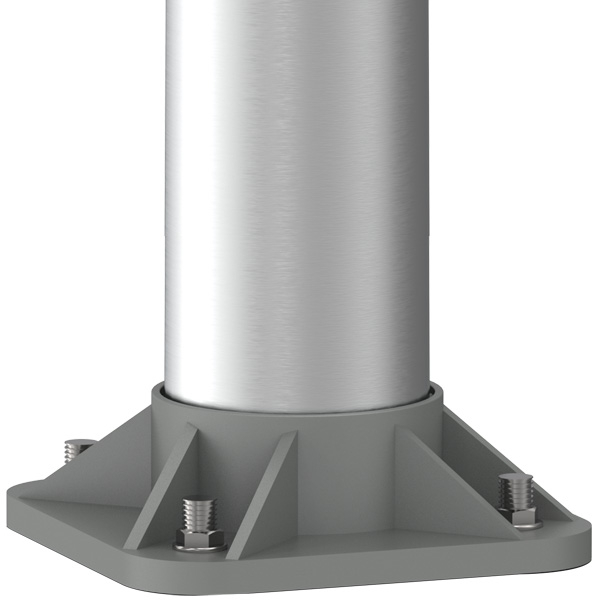

Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in accordance with Landmark’s Specifications. Additional finish options available upon request
