Single Arm Aluminum Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-L
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches
Specification
The Single Arm Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.

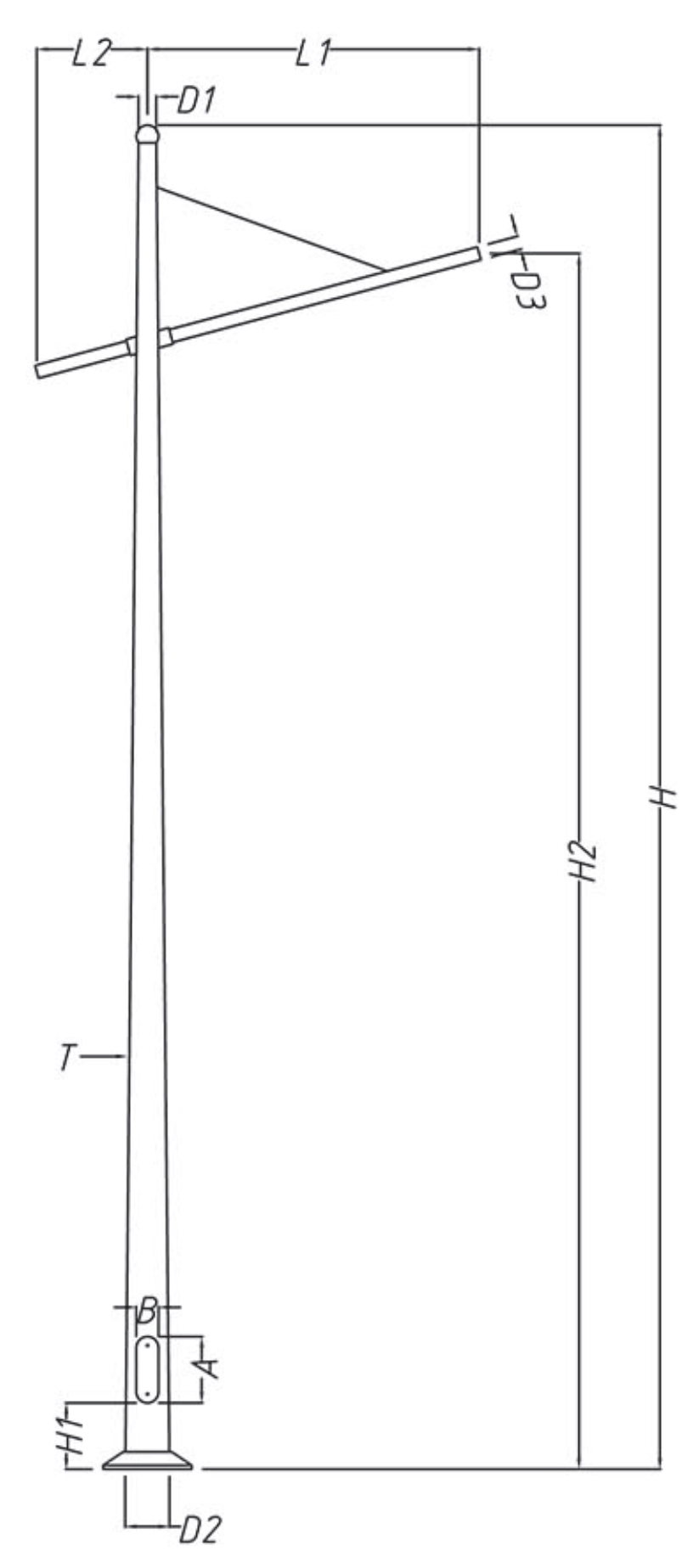

| MODEL | HEIGHT | TOP OD | BASE OD | OD | ARM | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|---|---|
| YLDG-L1 | 5000 | 80 | 152 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L2 | 6000 | 80 | 152 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L3 | 7000 | 80 | 166 | 60 | 1500 | 4.0 | 500 | 80x250 | 298x298x12 |
| YLDG-L4 | 8000 | 80 | 180 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
| YLDG-L5 | 9000 | 80 | 180 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
| YLDG-L6 | 10000 | 80 | 200 | 60 | 1500 | 4.0 | 500 | 100x300 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided

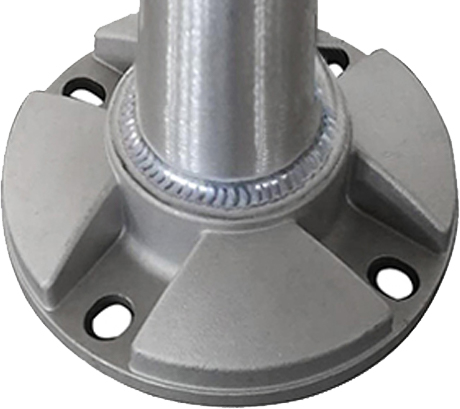

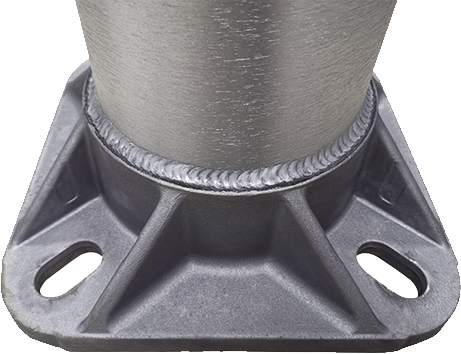

Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |

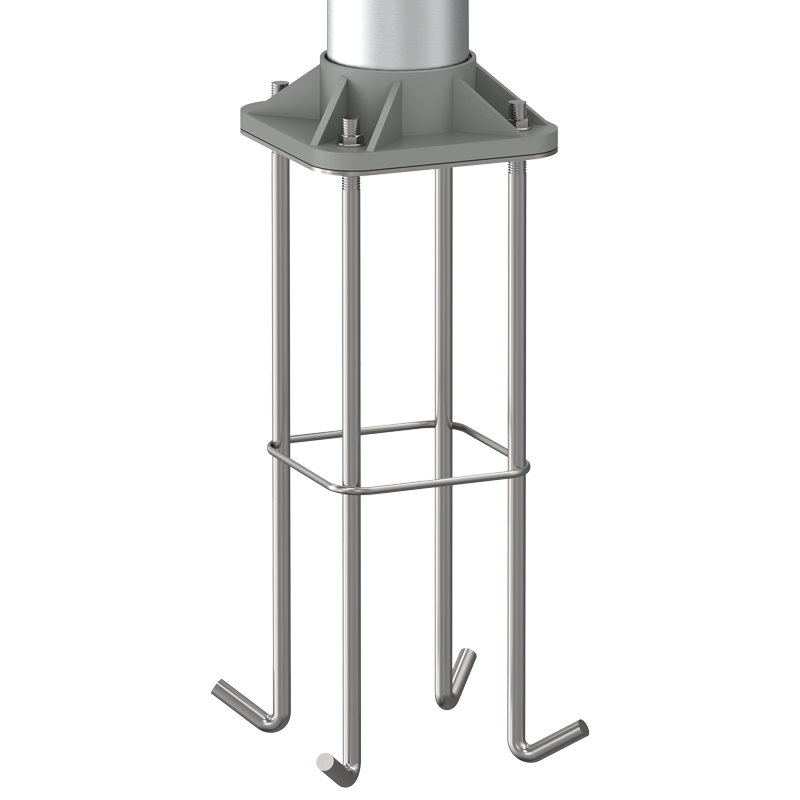

Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:
Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.
Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.
The single arm aluminum light pole is a versatile and widely used exterior lighting structure designed to extend a light fixture over a roadway, pathway, or designated area from a singular, side-mounted position. This configuration, often referred to as a “cobra head” or “roadway” style, consists of a vertical, typically tapered aluminum shaft with a projecting arm or mast arm attached at the top. The primary function of this arm is to position the luminaire directly above the space requiring illumination, such as a traffic lane or parking aisle, ensuring optimal light distribution and coverage while keeping the pole itself neatly aligned at the curb or edge. Constructed from extruded aluminum alloy, the entire assembly benefits from the material’s signature advantages: it is remarkably lightweight for easier installation, inherently corrosion-resistant for long service life in harsh environments, and readily accepts durable powder-coat finishes for aesthetic customization and further protection. The design prioritizes practical engineering, with the arm length, mounting height, and pole thickness carefully calculated to handle specific wind loads and weight requirements. While offering less formal symmetry than twin-arm or decorative poles, the single arm aluminum pole excels in functional efficiency and cost-effectiveness, making it the most common sight along municipal streets, highway ramps, parking lots, and utility corridors where clear, targeted illumination is the paramount concern.
