Description of Aluminum Double Arms Light Pole
In the orchestration of outdoor lighting, where functionality meets civic artistry, the choice of a light pole is a decisive factor in shaping the character and effectiveness of a space. While the single-arm pole is a versatile workhorse, there are scenarios demanding a greater level of illumination, symmetry, and architectural statement. This is where the aluminum double-arm light pole rises to the occasion. A design featuring a singular mast bifurcating into two independent horizontal arms, this configuration represents a significant amplification of both light output and visual impact, serving specific and demanding applications with exceptional proficiency.
The foundational strengths of the double-arm pole are inherited from its material: aluminum. This alloy confers a set of advantages that are crucial for a structure supporting the additional weight and wind load of a second fixture. Its exceptional corrosion resistance, inherent from the self-renewing oxide layer that forms on its surface, ensures the pole remains free from rust and structural decay for decades, even in harsh coastal or industrial environments. This longevity is a key economic factor, minimizing maintenance needs and replacement costs over a lifecycle that can easily exceed 25 years.
Furthermore, aluminum’s high strength-to-weight ratio is arguably even more critical for a double-arm design. While substantially stronger and capable of supporting more load than a single-arm equivalent, the aluminum double-arm pole remains remarkably lightweight compared to a steel alternative. This facilitates easier transportation, more efficient handling on-site, and a less complex installation process, often resulting in lower overall project costs. The material’s innate malleability allows for the creation of strong, elegant, and sometimes tapered designs that can support the significant cantilevered load of two arms without excessive bulk.
The primary purpose of the double-arm configuration is to dramatically enhance functional illumination. By mounting two luminaires on a single pole, lighting designers can achieve superior uniformity and intensity across a wide area. This is paramount in locations where safety and security are the highest priorities. A single double-arm pole can effectively illuminate multiple travel lanes, a wide intersection, or a large swath of a parking lot, often eliminating dark spots and shadows that could be created by a single light source. This targeted approach also contributes to reducing light pollution, as the fixtures can be precisely aimed to focus light downward onto the intended area rather than allowing it to scatter or trespass.
YLDG-S Aluminum Double Arms Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-S
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters | 10-40 Feet
- 60MM | 2.36 Inches
- 255MM | 10 Inches
- 2.5-6.0MM | 0.1-0.25 Inches
- 180KM/H
Double Arms Light Pole Specification
The Double Arms Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.
MODEL | HEIGHT | TOP OD | BASE OD | THICK | ARM L1 | ARM L2 | DOOR HEIGHT | BASE SIZE |
---|---|---|---|---|---|---|---|---|
YLDG-S1 | 5000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 298x298x12 |
YLDG-S2 | 6000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 298x298x12 |
YLDG-S3 | 7000 | 76 | 166 | 4.0 | 1500 | 1500 | 500 | 298x298x12 |
YLDG-S4 | 8000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
YLDG-S5 | 9000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
YLDG-S6 | 10000 | 76 | 200 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
---|---|---|---|---|
YLDG-PB1 | 152 | 298x298 | 12 | 210x210 |
YLDG-PB2 | 166 | 298 x298 | 12 | 210x210 |
YLDG-PB3 | 180 | 305 x305 | 19 | 210x210 |
YLDG-PB4 | 200 | 305 x308 | 19 | 210x210 |

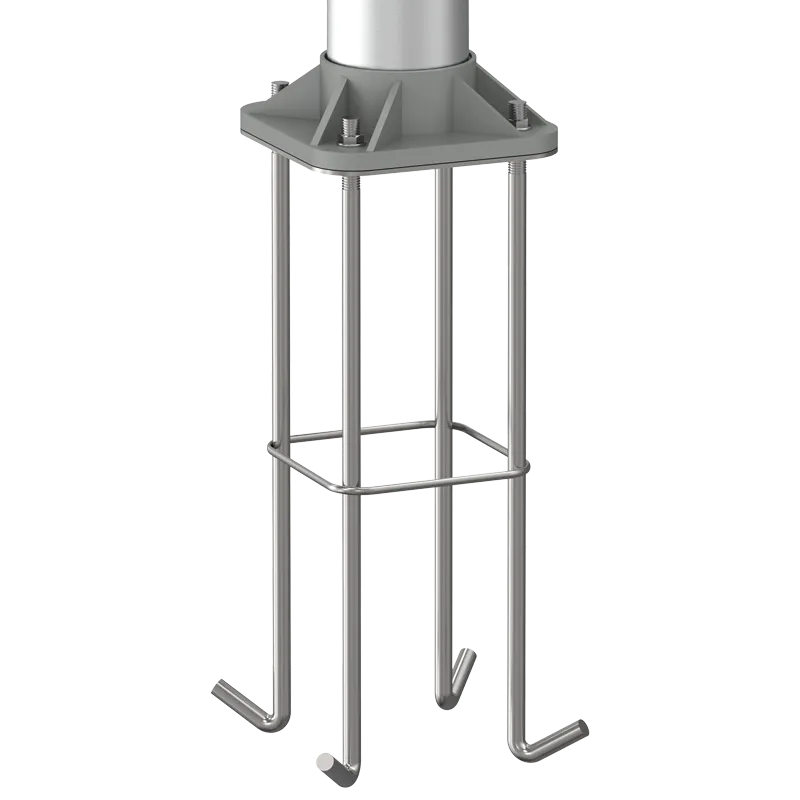

Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in accordance with Landmark’s Specifications. Additional finish options available upon request
