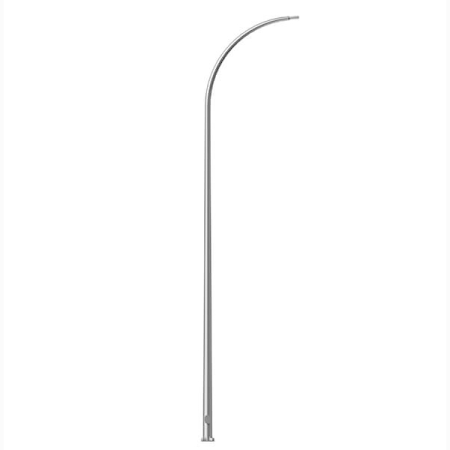

Single Davit Arm Aluminum Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-D
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches
Davit Arm Light Pole Specification
The Davit Arm Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.
| MODEL | HEIGHTH | TOP OD | BASE OD | THICK | ARM L1 | DOOR HEIGHTH | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-D1 | 5000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 260x260x12 |
| YLDG-D2 | 6000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 260x260x12 |
| YLDG-D3 | 7000 | 76 | 166 | 4.0 | 1500 | 500 | 80×250 | 285x285x12 |
| YLDG-D4 | 8000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D5 | 9000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D6 | 10000 | 76 | 200 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in accordance with Landmark’s Specifications. Additional finish options available upon request
Surface Treatments
We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:
Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.
Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.

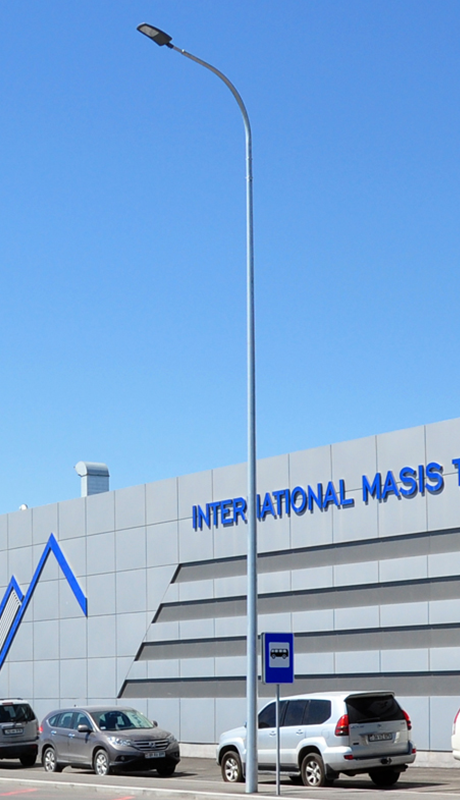

The single davit arm aluminum light pole is a distinct and elegant category of outdoor lighting structure, characterized by its singular, gracefully curved or angled arm that extends from the top of the pole to support a luminaire over a designated space. Often perceived as a more architectural or decorative sibling to the standard straight “cobra head” pole, the davit arm features a smooth, sweeping cantilever that projects the light source outward. This design creates a pronounced visual statement, offering a blend of strong functional performance and elevated aesthetics. The pole is manufactured from extruded aluminum alloy, which provides an excellent strength-to-weight ratio, making the installation of these often larger-scale poles more manageable while ensuring exceptional resistance to corrosion from weather and environmental salts. The inherent versatility of aluminum allows the entire unit—both shaft and arm—to be finished in a wide spectrum of durable powder-coat colors, enabling seamless integration into upscale urban streetscapes, waterfront promenades, commercial plazas, park pathways, and historic districts. The fundamental purpose of the davit arm remains functional: to position the fixture optimally over roadways, walkways, or gathering areas. However, its curved profile also allows for strategic placement of the light source, which can enhance visual comfort and reduce glare compared to some straight-arm designs. The single davit arm aluminum light pole thus serves as a preferred solution where municipalities, architects, and landscape designers seek to combine authoritative illumination with a sculptural form that contributes positively to the built environment.
