Aluminum Curving Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-V
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
- 10-40 Feet
- 2.36 Inches
- 10 Inches
- 0.1-0.25 Inches

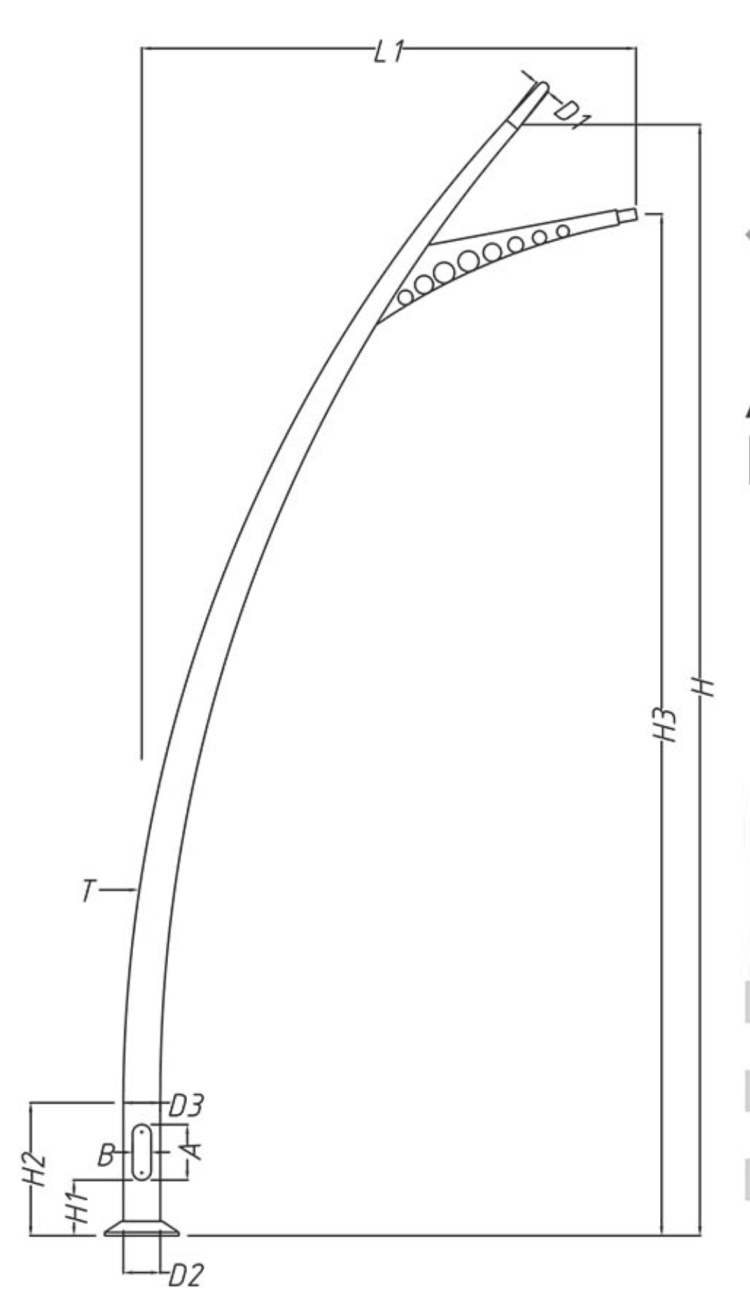

Aluminum Curving Light Pole Specification
The Curving Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.
| MODEL | HEIGHT | TOP OD | BASE OD | HEIGHT2 | HEIGHT3 | ARM | THICK | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-V1 | 5000 | 76 | 152 | 1000 | 4500 | 1500 | 4.0 | 298x298x12 |
| YLDG-V2 | 6000 | 76 | 152 | 1000 | 5500 | 1500 | 4.0 | 298x298x12 |
| YLDG-V3 | 7000 | 76 | 166 | 1200 | 6500 | 1800 | 4.0 | 298x298x12 |
| YLDG-V4 | 8000 | 76 | 180 | 1200 | 7500 | 1800 | 4.0 | 305x305x19 |
| YLDG-V5 | 9000 | 76 | 180 | 1500 | 8500 | 2000 | 4.0 | 305x305x19 |
| YLDG-V6 | 10000 | 76 | 200 | 1500 | 9500 | 2000 | 4.0 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:
Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.
Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.
Description of Aluminum Curving Light Pole
An Aluminum Curving Light Pole is a unique and stylish lighting fixture that features a curved or arched shape in its design. This type of light pole is typically made from aluminum material, known for its lightweight properties, durability, and resistance to corrosion.
Curving Light Pole offer a modern and sleek look to outdoor lighting installations. The curved design not only adds a touch of elegance but also provides an aesthetic appeal to the surrounding environment. These poles are often used in urban settings, parks, walkways, and commercial areas to enhance the overall lighting ambiance.
The curve of the pole can vary in degree, allowing for different styles and configurations to suit various lighting needs. Additionally, arc-shaped aluminum light poles can be customized in terms of height, color, and finish to blend seamlessly with the existing landscape and architectural elements.
Overall, Arc-shaped aluminum light poles are a contemporary and eye-catching choice for outdoor lighting solutions, providing both functionality and aesthetic charm to any space.
