YLDG-H Aluminum Curved Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-H
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters | 10-40 Feet
- 60MM | 2.36 Inches
- 255MM | 10 Inches
- 2.5-6.0MM | 0.1-0.25 Inches
- 180KM/H
Aluminum Curved Light Pole Specification
The Curved Light Pole shaft is crafted from precision-spun, seamless 6063 T6 aluminum alloy tubing.
MODEL | HEIGHT | TOP OD | BASE OD | THICK | ARM | HEIGHT | DOOR HEIGHT | BASE SIZE |
---|---|---|---|---|---|---|---|---|
YLDG-H1 | 5000 | 76 | 152 | 4.0 | 1500 | 1000 | 500 | 298x 298 x12 |
YLDG-H2 | 6000 | 76 | 152 | 4.0 | 1500 | 1000 | 500 | 298x 298 x12 |
YLDG-H3 | 7000 | 76 | 166 | 4.0 | 1800 | 1200 | 500 | 298x 298 x12 |
YLDG-H4 | 8000 | 76 | 180 | 4.0 | 1800 | 1200 | 500 | 305x305x19 |
YLDG-H5 | 9000 | 76 | 180 | 4.0 | 2000 | 1500 | 500 | 305x305x19 |
YLDG-H6 | 10000 | 76 | 200 | 4.0 | 2000 | 1500 | 500 | 305x305x19 |
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
---|---|---|---|---|
YLDG-PB1 | 152 | 298x298 | 12 | 210x210 |
YLDG-PB2 | 166 | 298 x298 | 12 | 210x210 |
YLDG-PB3 | 180 | 305 x305 | 19 | 210x210 |
YLDG-PB4 | 200 | 305 x308 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in accordance with Landmark’s Specifications. Additional finish options available upon request

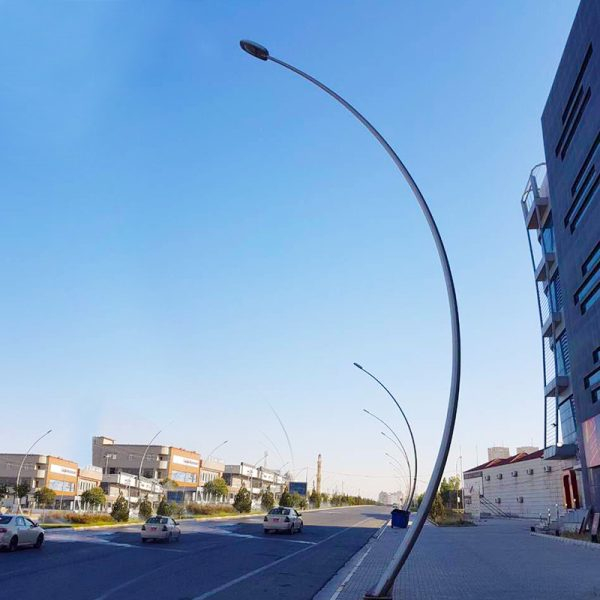

Description of Aluminum Curved Light Pole
A Curved Light Pole is a contemporary and stylish lighting solution that adds a touch of modern elegance to outdoor spaces. Crafted from durable 6063 Aluminum alloy, these light poles boast a sleek and sophisticated design featuring a graceful curve or arc shape.
These poles are not just functional elements providing illumination; they are also pieces of art that enhance the aesthetics of their surroundings. Whether lining a pathway, illuminating a park, or accentuating a street, Curved Light Poles are designed to attract attention and elevate the visual appeal of any outdoor environment.
6063 Aluminum alloy is chosen for its durability, corrosion resistance, and low maintenance requirements, making it an ideal material for outdoor applications. The curved design of these light poles offers a unique and contemporary look that sets them apart from traditional straight poles, adding a touch of creativity and flair to lighting installations.
With their combination of form and function, Curved Aluminum Light Poles are not just lighting fixtures; they are architectural elements that contribute to creating inviting and visually appealing outdoor spaces. So, if you’re looking to add a touch of sophistication and style to your outdoor lighting project, consider incorporating Curved Aluminum Light Poles for a modern and attractive lighting solution.
