Flood Light Pole
Flood Light Pole
- The original manufacturer of higt masts
- We'll give you the factory price directly
- Customization based on provided drawings is available
- Model
-
Materials
- Height
- Wall Thickness
- Diameter
- Wind Resistant
- Applications
- YLDG-M
- 201/304/316 Stainless Steel Hot-dip Galvanized Steel Q235/Q355
- 10-50 Meters
- 5-30mm
- 230-1080mm
- 180 KM/H
- Highways and interchanges, Airports, Shipping ports, Railway yards, Sports stadiums, Large parking lots, Industrial complexes
- 30-165 Feet
- 0.2-0.25 Inches
- 9.0-42.5 Inches
Design Options





High Mast Pole Accessories

Square Flood Lamps

Round Flood Lamps

Aeronautical Light

Access Door

Pole Base
High mast lighting refers to tall poles (typically 50 to 165 feet or more) equipped with multiple high-wattage light fixtures at the top. These systems are used to illuminate large, open areas with uniform and bright lighting.
- Model
-
Materials
- Height
- Wall Thickness
- Diameter
- Wind Resistant
- Applications
- YLDG-M
- 201/304/316 Stainless Steel
- 15-50 Meters
- 5-30mm
- 230-1080mm
- 180 KM/H
- Highways and interchanges, Airports, Shipping ports, Railway yards, Sports stadiums, Large parking lots, Industrial complexes
Flood Light Pole Specification
| Height | 15m / 50feet | 20m / 65feet | 25m / 80feet | 30m / 100feet | 35m / 115feet | 40m / 130feet |
|---|---|---|---|---|---|---|
| Top OD | 230mm | 230mm | 260mm | 260mm | 300mm | 300mm |
| Bottom OD | 520mm | 580mm | 750mm | 800mm | 980mm | 1080mm |
| Shape | Dodecagonal/Round | Dodecagonal/Round | Octadecagon/Round | Octadecagon/Round | Octadecagon/Round | Octadecagon/Round |
| Wall Thickness(mm) | T6,6 | T6,6,8 | T6,8,8 | T6,8,10,10 | T8,10,10,12 | T8,10,12,12,14 |
| Bottom Flange(mm) | δ20×Φ820 | δ25×Φ920 | δ30×Φ1130 | δ35×Φ1250 | δ40×Φ1420 | δ45×Φ1520 |
| Hole Spacing(mm) | 12-M30×Φ680×2000 | 12-M36×Φ760×2000 | 12-M45×Φ950×2500 | 12-M45×Φ1050×2500 | 16-M52×Φ1220×2500 | 16-M52×Φ1320×3000 |
| Lamp Panel Diameter | Φ2200mm | Φ2500mm | Φ3500mm | Φ3500mm | Φ3500mm | Φ3500mm |
| Lifting Capacity: | 600kg | 600kg | 800kg | 1000kg | 1200kg | 1200kg |
| Lamp Panel Pipe Thickness(mm) | T4 | T4 | T4 | T4 | T4 | T4 |
| Anchor Bolts(mm) | 12-M30(material: 45# steel)x 700XH2000, equipped with 2 T10*820 fixed plates, with 24 square washers and 60 grade 8 nuts | 12-M36(material: 45# steel)x760XH2000, equipped with 2 fixed plates of T10*920, with 24 square washers and 60 grade 8 nuts | 12-M45(material: 45# steel)x950XH2500, equipped with 2 T10* 1130 fixed plates, with 24 square washers and 60 grade 8 nuts | 16-M45(material: 45# steel)x1050XH2500, equipped with 2 T10* 1250 fixed plates, with 32 square washers and 90 grade 8 nuts | 16-M52(material: 45# steel)x1220XH2500, equipped with 2 T10* 1420 fixed plates, 32 square washers, 90 grade 8 nuts | 16-M60(material: 45# steel)X1320XH3000, equipped with 2 T10* 1520 fixed plates, 32 square washers, and 90 grade 8 nuts |
| Reference Base Size(mm) | 2500*2500*2500 | 2900*2900*2900 | 3300*3300*3300 | 3600*3600*3600 | 4000*4000*4000 | 4300*4300*4300 |
| Wire | One 20-meter 4-core cable, 4*4mm³, and eight 4-meter 3-core cables, 3*1.5mm³ | One 25-meter 4-core cable, 4*4mm³, and twelve 4-meter 3-core cables, 3*1.5mm³ | One 30-meter 4-core cable, 4*4mm³, and twelve 5-meter 3-core cables, 3*1.5mm³ | One 35-meter 4-core cable, 4*4mm³, and twelve 5-meter 3-core cables, 3*1.5mm³ | One 40-meter 4-core cable, 4*6mm³, and twelve 5-meter 3-core cables, 3*1.5mm³ | One 45-meter 4-core cable, 4*6mm³, and twelve 5-meter 3-core cables, 3*1.5mm³ |
| Reference Lamp Power | 8-300W | 12-300W | 12-500W | 12-600W | 12-900W | 12-1200W |
| Remarks | Stainlness Steel 304/304L/316/316L Material :Q355B; Surface treatment: Hot-dip galvanizing, powder coating |
|||||

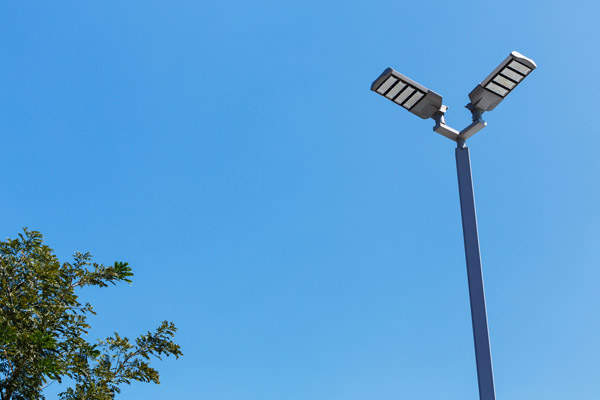

A flood light pole is a dedicated structure designed to support and position one or more high-intensity, broad-beamed floodlights for the purpose of illuminating a specific, targeted area. Unlike ambient street lights, its primary goal is functional visibility for safety, security, or activity. You commonly see them standing guard in parking lots, illuminating building façades and yards, bathing sports fields and construction sites in light, or highlighting monuments and signage. The pole itself, typically made of steel, aluminum, or concrete, acts as a sturdy mounting platform at a height chosen to maximize coverage and minimize obstruction.
The defining characteristic is the fixture it holds: a floodlight. These are rugged, weatherproof housings containing powerful lamps—historically metal halide or high-pressure sodium, but now overwhelmingly LED—that project a wide, controlled “wash” of light. The fixtures are mounted on adjustable brackets or arms, allowing precise aiming. This adjustability is key, enabling technicians to direct the light exactly where it’s needed, whether that’s across a tennis court, onto a warehouse loading dock, or away from neighboring properties to prevent light trespass.
While a high mast pole is a singular, towering giant for illuminating acres, a flood light pole is often more modular and tactical. Multiple poles can be strategically placed around a perimeter or field to eliminate shadows and provide overlapping coverage. The design is straightforward: a robust foundation, a pole of necessary height, and one or more powerful, directional lights aimed to serve a specific practical purpose, making the unseen seen after dark.
