RL003 Aluminum Single-Arm Light Pole
Product Description
Model: RL003

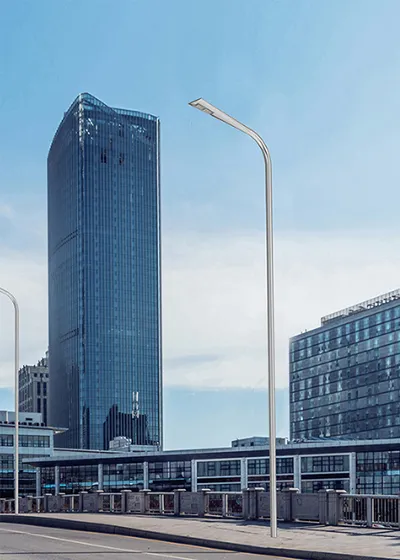

RL003 uses an integrated single-arm design with a clean, tapered visual profile that coordinates the luminaire and pole as one architectural element.
The pole is available in aluminum alloy with a project-specific surface finish.
The illustrated luminaire uses 60 W LED modules per group. The required module quantity should be confirmed through the project lighting design.
Luminaire color temperature: 3000–5000 K
Luminaire color rendering index (CRI): Ra ≥ 70
Luminaire ingress protection: IP67
Related Single-Arm Pole Solutions
RL003 is a model-specific single-arm configuration. Review our main aluminum single-arm light pole page or explore other aluminum pole designs.
Pole Specification
- Material
- Maximum Diameter
- Minimum Diameter
- Wall Thickness
- Height Range
- Top Diameter
- Base Diameter
- Base Plate Size (mm)
- Aluminum Alloy
- 127,166,210mm
- 100,110,130mm
- 3-5mm
- 3.8-12 m
- 110*160mm, 120*170mm, 140*230mm
- 1270,166,210mm
- 300*300,400*400mm
