Aluminium Double Arm Light Pole, 5 m – 10 m Tapered Street Lighting Pole with Detachable Twin Bracket Arms, Custom Outreach, Anodized or Powder Coated, OEM Available
- YLDG-S Series
- Spun-tapered 6063-T6 shaft with two detachable aluminium arms
- Symmetrical 180° layout standard; custom arm geometry available
- Combined twin-luminaire wind-load review available
| MOQ | 10 sets (mixed heights and arm configurations accepted) |
|---|---|
| Height range | 5 m / 6 m / 7 m / 8 m / 9 m / 10 m — custom available |
| Arm layout | Two detachable arms · 180° symmetrical standard |
| Arm outreach | 1.5 m standard per side · custom outreach subject to engineering review |
| Arm connection | Bolted flange or slip-fit connection with stainless hardware |
| Finish | Mill / Anodized · Matte Black · Bronze · Matte Grey · Gloss White |
| Lead time | 15 – 25 days after deposit & drawing approval |
| Port | Ningbo / Shanghai · FOB, CIF, DDP available |
Manufacturing aluminium poles for export markets
Own factory with spinning, welding & coating lines
Annual capacity across 3 production lines
Exported to EU, North America, Middle East, SEA
Technical Specifications
Standard catalogue values for detachable double arm aluminium light poles. Final shaft dimensions, arm geometry, luminaire loads and structural requirements are confirmed against the approved project drawing.
| Model | YLDG-S Series |
|---|---|
| Shaft material | Aluminium alloy 6063-T6 (6061-T6 optional) |
| Forming process | CNC spinning, seamless conical taper |
| Cross-section | Round tapered (octagonal optional) |
| Taper ratio | 1:100 – 1:80, depending on height and structural design |
| Wall thickness — shaft | Project-specific, based on height, EPA and wind speed |
| Arm quantity | Two detachable aluminium arms |
| Arm material | 6063-T6 extruded aluminium tube |
| Arm arrangement | 180° symmetrical standard; custom included angles available |
| Arm outreach | 1,500 mm standard per side; custom outreach available |
| Arm tilt | 0° / 5° / 10° / 15°, independently configurable |
| Arm connection | Machined bolted flange or reinforced slip-fit connection |
| Top diameter | 76 mm standard; project-specific options available |
| Bottom diameter | 128 – 255 mm for standard 5 – 10 m configurations |

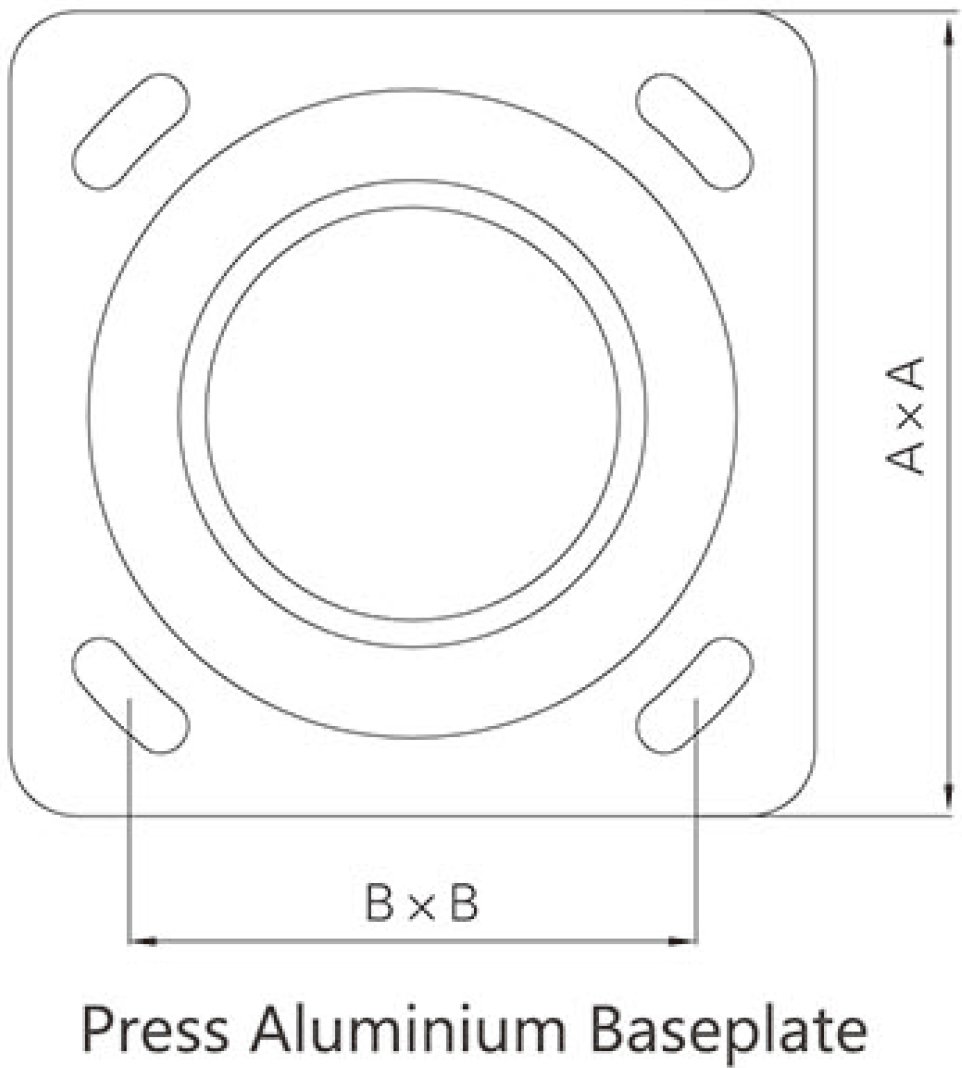

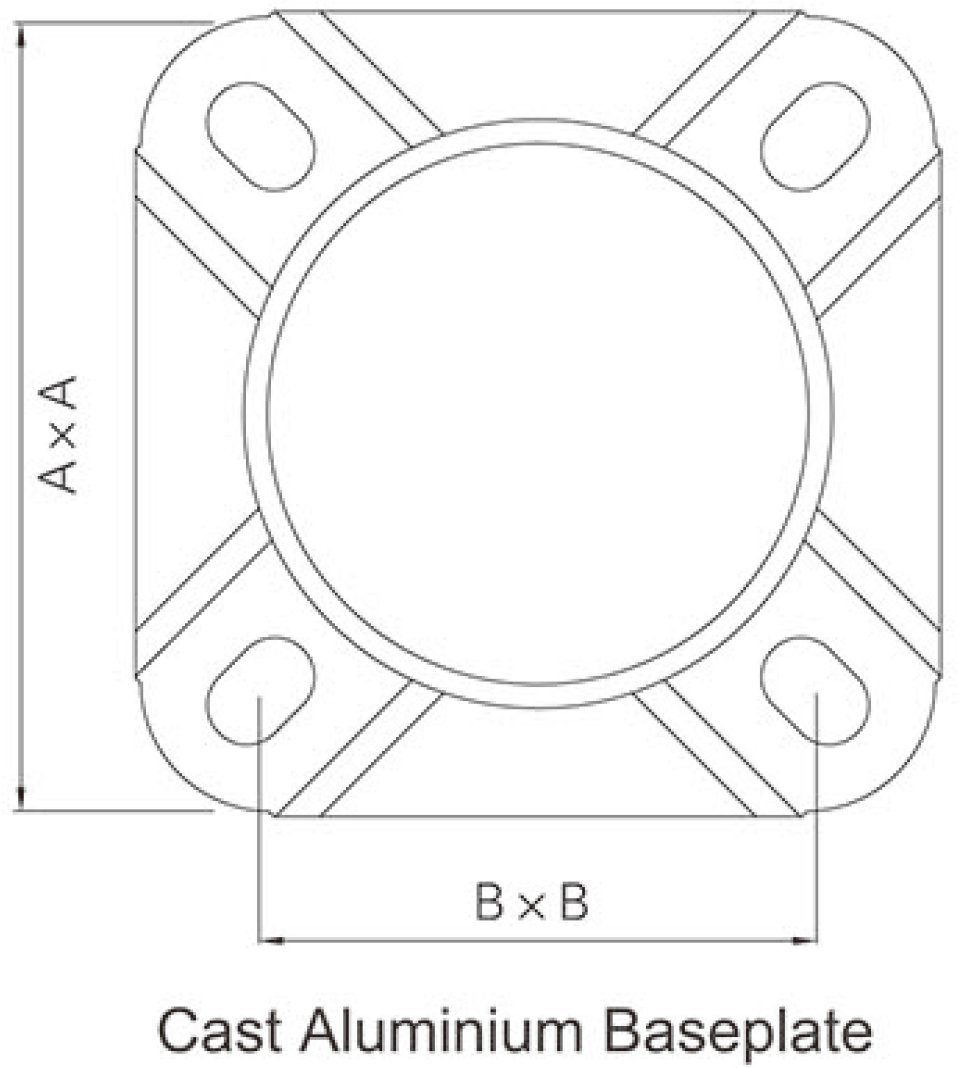

| Base plate | 298 × 298 × 12 mm or 305 × 305 × 19 mm |
| Anchor bolts | Hot-dip galvanized anchor set supplied with template |
| Hand hole | Reinforced access opening with lockable aluminium cover |
| Surface treatment | Polyester powder coating / anodizing / PVDF fluorocarbon |
|---|---|
| Coating thickness | 60 – 100 μm (80 μm nominal) |
| Colour | Any RAL; standard options include RAL 7016, RAL 9005, RAL 9016 and bronze |
| Pre-treatment | Degrease → alkaline etch → chromate-free conversion |
| Salt spray test | Project-specific test documentation available |
| Joint sealing | EPDM gasket and stainless hardware with protected internal cable paths |
| Wind resistance | Calculated for the complete pole, two arms and two luminaires |
| Design standard | EN 40 / AASHTO requirements available subject to project specification |
| Luminaire configuration | Two luminaires; weight and projected area confirmed per project |
| Certification | ISO 9001, ISO 14001, CE and SGS material reports |
| Service life | More than 25 years inland; coastal specification available |
| Earthing | Internal grounding provision with copper lug |
| Cable route | Internal wiring through shaft and both arms |
| Installation | Anchor-base flange; other mounting options on request |
Standard Sizes of Aluminum Double Arm Light Pole
| MODEL M | HEIGHT H | TOP OD D1 | BASE OD D2 | THICK T | ARM L1 | ARM L2 | DOOR HEIGHT H1 | DOOR SIZE (A×B) | BASE SIZE (L×W×T) |
|---|---|---|---|---|---|---|---|---|---|
| YLDG-S1 | 5000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-S2 | 6000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-S3 | 7000 | 76 | 166 | 4.0 | 1500 | 1500 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-S4 | 8000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 100 × 300 | 305 × 305 × 19 |
| YLDG-S5 | 9000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 100 × 300 | 305 × 305 × 19 |
| YLDG-S6 | 10000 | 76 | 200 | 4.0 | 1500 | 1500 | 500 | 100 × 300 | 305 × 305 × 19 |
Five stock finishes, any RAL to order
The shaft and both detachable arms are prepared and coated in the same production batch. This keeps colour, gloss level and film thickness consistent across all three components and avoids a visible colour difference at the arm joints.
Natural aluminium, 25 μm anodic layer
Most requested for urban and architectural projects
Fine texture, hides dust and handling marks
Standard municipal specification in EU tenders
Parks, resorts, pedestrian zones
Two arms mean two joints — both must stay aligned and sealed
A double arm pole must keep both luminaires level, hold the specified included angle and protect two internal cable routes. Every shaft-and-arm set is trial-assembled before coating so alignment issues are corrected in the factory, not at the installation site.
Machined twin mounting faces
Both connection faces are machined to maintain arm alignment and even gasket compression. The mounting axes are checked against the approved included angle.
Independent sealed cable paths
Each luminaire cable passes through a protected internal route with radiused entries. No external conduit and no exposed cable at either joint.
Stainless, torque-controlled fasteners
Each bolted arm connection uses corrosion-resistant stainless hardware. Fasteners are tightened to the approved assembly requirement and marked for inspection.
Reinforced top connection zone
Internal sleeves or welded collars spread the two arm loads into the shaft and reduce stress concentration around the connection points.
Trial-fitted matched assembly
Both arms are installed together during factory inspection. Outreach, tilt, included angle and luminaire-spigot alignment are verified and match-marked.
Symmetrical, unequal or angled — specify each arm independently
Standard double arm poles use two equal arms positioned at 180°. For irregular roads, site boundaries or mixed lighting zones, the outreach, tilt and included angle of each arm can be specified separately.
Footpaths, small car parks, landscaped areas and pedestrian zones
Central medians, municipal roads, campuses and parking aisles
Wide roads, industrial sites and large open parking areas
Different outreach or tilt on each side for unequal road widths
90°, 120°, 180° or project-specific orientation to approved drawing
Where these poles are installed
Central medians, dual carriageways and large open areas
Double arm poles provide two-direction lighting from one foundation. They are ideal where luminaires must serve both sides of a road, two parking aisles or adjacent traffic and pedestrian zones.
Central road medians
8–10 m · 1.5–2.0 m per side
Dual carriageways
10–12 m · project-specific outreach
Large car parks
8–10 m · 1.5–2.0 m per side
Campuses & plazas
5–8 m · 1.0–1.5 m per side
Industrial roads
9–12 m · engineered configuration
Coastal developments
6–10 m · corrosion-resistant finish
Light two directions from one foundation
A double arm pole places two luminaires on one shaft, reducing the number of foundations, cable-entry points and poles required for central medians, parking areas and other two-direction lighting layouts. Detachable arms keep the system serviceable and adaptable.
Two-way lighting from one pole
Two luminaires serve opposite carriageways or adjacent zones from one foundation, simplifying the lighting layout and installation plan.
Symmetrical or unequal arms
Specify identical arms for balanced lighting or different outreach and tilt on each side for unequal road widths and site boundaries.
Complete twin-luminaire calculation
The shaft, two arms and both luminaires are reviewed as one structural system using the combined weight and projected area.
Independent arm replacement
Each arm can be removed separately. A damaged arm or upgraded luminaire can be replaced without disturbing the shaft or foundation.
Fewer foundations and cable points
One pole can serve two lighting directions, helping reduce foundations, trench connections and installation work on suitable layouts.
Compact export packing
Both arms ship detached and nested flat, avoiding projecting sections and improving protection during container transport.
A pole factory, not a trading company
Founded in 2003, we operate a 50,000 m² light-pole manufacturing plant with dedicated spinning, welding, arm-fabrication and surface-finishing capabilities. Annual output is approximately 120,000 poles.
We supply lighting contractors, distributors and project buyers across Europe, North America, the Middle East and Southeast Asia. Double arm poles can be produced to customer drawings with OEM branding, custom finishes and project-specific packing.
Our engineering team reviews pole height, left and right arm outreach, luminaire weight, projected area, design wind speed and foundation requirements before production.
Quality system
Environmental
EN 40 conformity
Material report
From aluminium tube to a matched three-piece assembly
The shaft, left arm and right arm are manufactured as one matched set. Both arms are trial-fitted before coating, then permanently identified so the correct orientation can be restored during site installation.
6063 aluminium tube is received with mill certificates and checked against the purchase specification.
The shaft is formed to the specified seamless conical taper on a programmed spinning line.
Solution treatment and artificial ageing achieve the specified aluminium temper.
Left and right arms are cut and machined to the approved outreach, tilt and included angle.
5. Flange and collar welding
Arm flanges, reinforcement collars, base plate and gussets are welded and inspected.
6. Three-piece trial assembly
Both arms are installed together; angle, level, outreach and alignment are checked and match-marked.

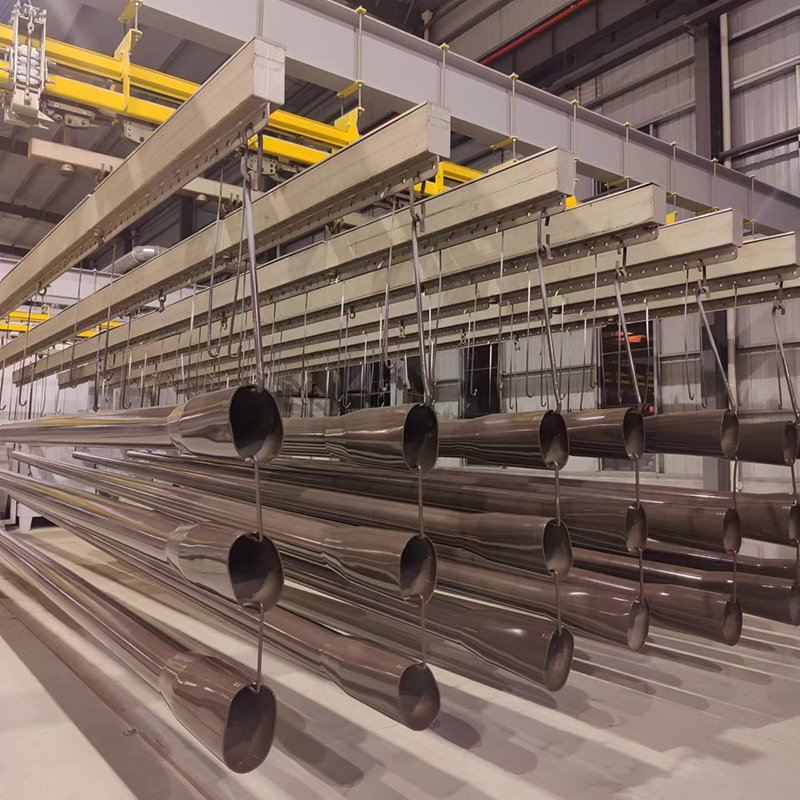

7. Coat, QC and pack
The shaft and arms are finished in one batch, inspected, labelled and packed separately.
Twin arms ship flat — compact, protected and match-marked
Detachable arms avoid the wasted container space and impact risk of one-piece curved twin-arm poles. Each left and right arm is protected, clearly identified and matched to its shaft.
Each shaft is wrapped in pearl cotton and woven polypropylene so finished surfaces do not touch.
Arms nest in protected cartons with the connection faces covered. Every arm is identified by side and matched to its shaft.
Shafts are nested head-to-tail in fumigated timber frames with forklift access and steel strapping.
~100 pcs
~200 pcs
15–25 days
Loading quantities based on 6m poles. 10m and 12m can be supplied in two slip-fit sections on request to reduce freight cost.
Questions buyers ask before ordering
Yes. Left and right outreach can be specified independently. Unequal configurations require a structural review using both luminaire loads and projected areas.
No. The standard arrangement is 180°, but 90°, 120° and other included angles can be manufactured to an approved drawing.
Not automatically. Shaft diameter and wall thickness depend on height, combined luminaire weight, total projected area, arm outreach and wind speed.
Yes. Each arm has an independent connection and cable route, so one arm can be replaced without removing the opposite arm or shaft.
Yes. Send the PDF or DWG with luminaire weight, projected area, wind speed and the required geometry. We will return a production drawing for approval.
Yes. Provide the terrain category, design wind speed and luminaire data for both sides. Project-specific calculations can be supplied with the quotation.
The standard supply includes the pole, two arms, connection hardware and anchor set. LED luminaires can be integrated from partner manufacturers when required.
Yes. Factory or third-party inspection is accepted. A dimensional and photo inspection report can also be supplied for each batch.
Add the luminaire weight, projected area, design wind speed and required included angle. We will prepare a preliminary double arm configuration and technical review with the quotation.
