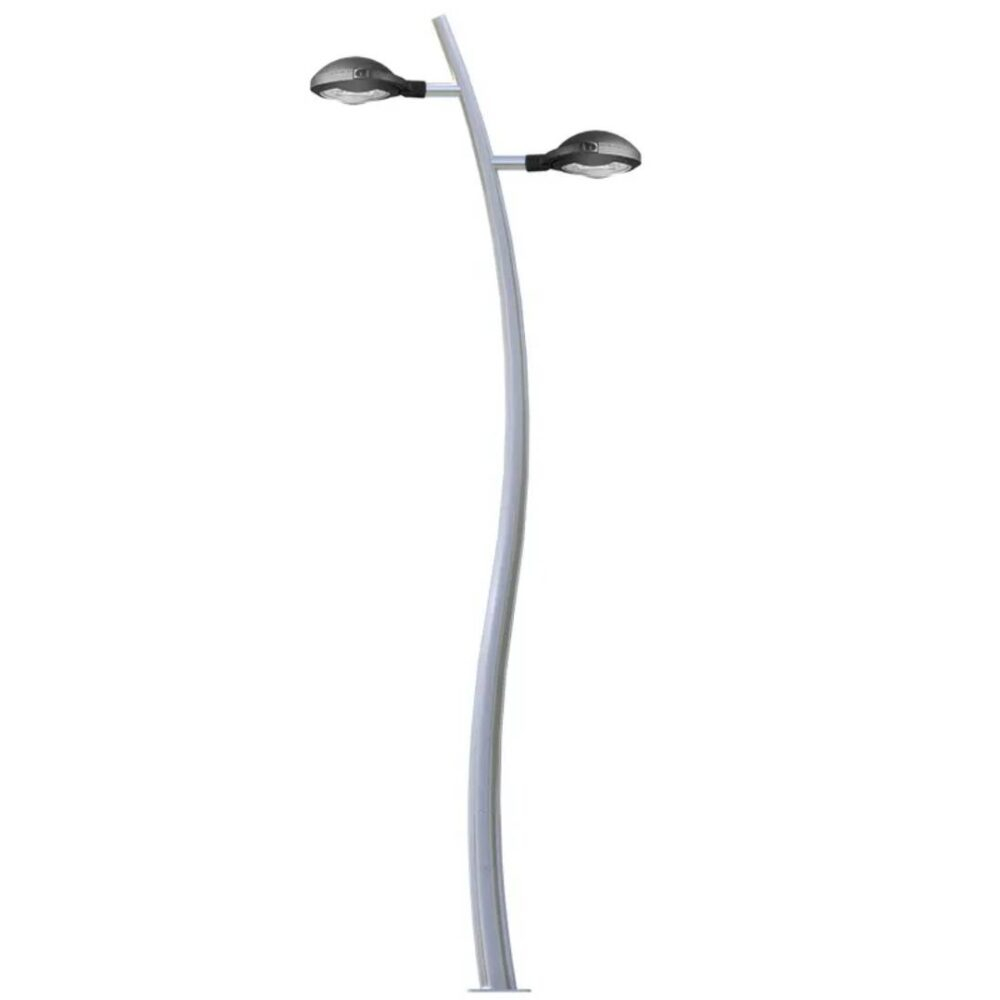

Aluminum S Shape Light Pole

Model:
Materials:
Height:
Min. Diameter:
Max. Diameter:
Wall Thickness:
Wind Resistant:

Tapered Aluminum Light Pole Specification

MODEL	HEIGHT	TOP OD	BASE OD	THICK	ARM L1	DOOR HEIGHT	DOOR SIZE	BASE SIZE
YLDG-E1	5000	76	152	4.0	1500	500	80x250	298x298x12
YLDG-E2	6000	76	152	4.0	1500	500	80x250	298x298x12
YLDG-E3	7000	76	166	4.0	1800	500	80x250	298x298x12
YLDG-E4	8000	76	180	4.0	1800	500	100x300	305x305x19
YLDG-E5	9000	76	180	4.0	2000	500	100x300	305x305x19
YLDG-E6	10000	76	200	4.0	2000	500	100x300	305x305x19

Pole Top

A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies

Handhole

A covered handhole with hardware and grounding provision are provided

Anchor Base

The anchor base is cast from A356 alloy aluminum.

The completed assembly is heat-treated to a T6 temper.

Aluminum nut covers are included with anchor base unless otherwise specified

MODEL	BASE OD	BASE SIZE	THICK	HOLE SPACING
YLDG-PB1	152	260 x 260	12	210x210
YLDG-PB2	166	285 x 285	19	210x210
YLDG-PB3	180	305 x 305	19	210x210
YLDG-PB4	200	305 x 305	19	210x210

Anchor Bolts

Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.

Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end

Base Cover

Optional round or square base cover available as special orderprovided

Surface Treatments

We focus on superior surface treatments to ensure long-lasting durability and aesthetic appeal for outdoor environments. Our products feature two primary finishing options:

Anodizing (30μm)
This electrochemical process creates an extremely hard, integral oxide layer on the aluminum surface. It offers outstanding corrosion and fade resistance, maintaining a classic metallic look in finishes such as champagne, bronze, and black. Anodizing is known for its exceptional longevity and weather resistance.

Powder Coating (60~80μm)
This process applies a dry, free-flowing powder electrostatically, which is then cured to form a tough, protective film. Powder coating provides superior flexibility in colors and textures, excellent impact resistance, and a durable barrier against the elements. It is the ideal choice for vibrant colors and enhanced design coordination.
