Premium Outdoor Lighting

Stainless Steel Y Shaped Light Pole

Engineered for elegance and durability. Our Y-shaped light poles combine premium stainless steel construction with a distinctive curved dual-arm design, delivering superior illumination for roads, parks, plazas, and urban landscapes.

SUS 304 / 316

Stainless Steel

4m - 10m

Height Range

Electroplated / Powder Coated

Finish Options

Product Overview

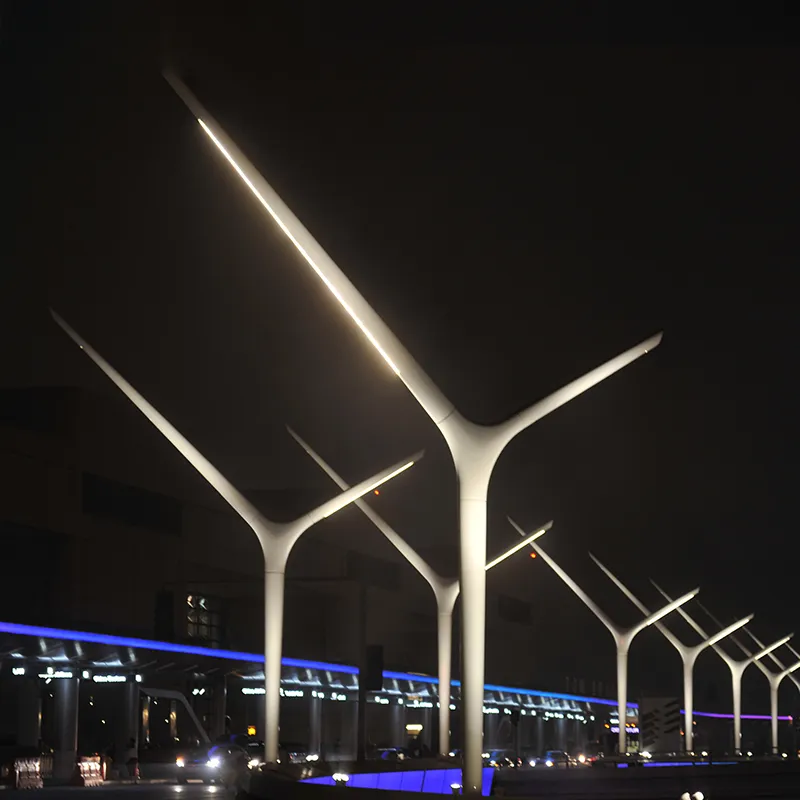

Distinctive Y Shaped Design for Modern Urban Landscapes

The YLDG Series features a signature Y-shaped profile where a single cylindrical stem seamlessly bifurcates into two gracefully curved arms. This aerodynamic design reduces wind load while maximizing light distribution coverage.

Premium Stainless Steel

Constructed from SUS 304 or SUS 316 stainless steel for exceptional corrosion resistance, structural integrity, and a service life exceeding 25 years in outdoor environments.

Dual Surface Treatment

Available in mirror-polished electroplated chrome finish or durable powder coated finish in any RAL color. Both processes deliver long-lasting protection against UV, moisture, and chemical exposure.

Premium Engineered AerodynamicsSteel

The Y-curve profile minimizes wind resistance by up to 40% compared to traditional cross-arm poles. Seamless welded construction eliminates stress concentration points for enhanced structural stability.

Technical Data

Specifications

Four standardized models to cover height requirements from 4 meters to 10 meters. All dimensions in millimeters (mm).

Model	Height (mm)	Left Arm Height (mm)	Left Arm Width (mm)	Right Arm Height (mm)	Right Arm Width (mm)
YLDG-Y1	4000	5500	3500	8000	2200
YLDG-Y2	6000	7500	3500	10000	2200
YLDG-Y3	8000	9500	3500	12000	2200
YLDG-Y4	10000	11500	3500	14000	2200

Material

SUS 304 / SUS 316 Stainless Steel

Wall Thickness

3.0mm — 6.0mm (model dependent)

Base Plate

Customizable, with anchor bolt cage

Wind Resistance

Up to 180 km/h (Grade 12)

Surface Treatment

Electroplating & Powder Coating

Two premium finishing options engineered for decades of outdoor performance. Choose based on your aesthetic and environmental requirements.

Electroplating (Chrome)

Our electroplating process deposits a micro-layer of chromium onto the stainless steel surface through an electrolytic bath, creating a mirror-bright, highly reflective finish that combines aesthetic brilliance with superior corrosion resistance.

Mirror Finish: Ra < 0.4μm surface roughness for a premium reflective appearance
Corrosion Resistance: Salt spray test rated >1000 hours per ASTM B117
UV Stability: Does not fade, chalk, or degrade under prolonged sun exposure
Thickness: Chrome layer 0.5–2.0μm with nickel undercoat for adhesion

Powder Coating

Electrostatic powder coating applies a thermoset polymer layer that is cured at high temperature, forming a tough, uniform skin over the stainless steel. Available in any RAL color to match your project's design requirements.

Color Range: Any RAL color code available — matte, satin, or textured finishes
Durability: Coating thickness 60–120μm with excellent impact and abrasion resistance
Weather Protection: Resists chalking, fading, and peeling for 15+ years in outdoor use
Eco-Friendly: Zero VOC emissions during application, recyclable overspray

Manufacturing

Precision Production Process

Our state-of-the-art manufacturing facility employs CNC bending, TIG welding, and multi-stage polishing to ensure every Y-shaped pole meets exacting quality standards.

Production Facility

Modern factory equipped with CNC tube bending machines, automatic welding robots, and surface treatment lines for consistent quality at scale.

Welding & Assembly

Precision TIG welding at the Y-junction ensures seamless structural integrity. Each weld is inspected via X-ray for internal defects before proceeding to surface treatment.
