Stainless Steel Tapered Light Pole
Engineered for decades of reliable outdoor performance. Our premium stainless steel tapered light poles combine structural integrity with advanced electroplating and powder coating surface treatments for superior corrosion resistance.
Height Range
Year Lifespan
Wind Resistance
Built for Municipal & Commercial Excellence
Our stainless steel tapered light poles are manufactured from high-grade SS304 and SS316 alloys, delivering unmatched durability for urban infrastructure, highways, parks, and commercial developments worldwide.
Superior Corrosion Resistance
Stainless steel with a project-specified electroplated or powder-coated finish can provide durable outdoor performance. Grade, pretreatment, finish, fasteners, inspection, and maintenance should match the actual environment.
Engineered Tapered Design
The precision-engineered tapered profile provides optimal strength-to-weight ratio, reducing material costs while maintaining structural rigidity. Slip-joint or flange base connections for flexible installation.
Customizable Configuration
Available in heights from 3m to 15m with customizable arm designs, base plates, and finish colors. Compatible with LED, HPS, and decorative luminaires. OEM and ODM orders welcome.
High Wind Load Capacity
Rated for wind speeds up to 160 km/h (Category 2 hurricane). Each pole undergoes finite element analysis (FEA) and structural testing to meet international standards including AS/NZS 1170 and EN 40.
Sustainable & Recyclable
100% recyclable stainless steel construction with eco-friendly surface treatment processes. Contributes to LEED certification points for sustainable building projects.
Integrated Wiring System
Internal wiring channel with hinged base door option for easy electrical access. Pre-wired configurations available to reduce on-site installation time by up to 40%.
Precision Engineering, Proven Performance
Every pole is manufactured to exacting tolerances with full traceability and mill certification.
- Material
- Height Range
- Bottom Diameter
- Top Diameter
- Wall Thickness
- Taper Ratio
- Surface Treatment
- Base Type
- Base Plate Size
- Wind Load Rating
- Luminaire Compatibility
- Electrical Access
- Certifications
- Warranty
- SS304 / SS316 / SS316L Stainless Steel
- 3m – 15m (custom heights available)
- 140mm – 280mm (height dependent)
- 60mm – 100mm
- 3.0mm – 6.0mm
- 6:1 to 12:1 (standard & custom)
- Electroplating / Powder Coating
- Flange plate / Direct burial / Hinged base
- 250x250mm – 500x500mm
- Up to 160 km/h
- LED, HPS, MH, spigot mount 60/76mm
- Side door / Hinged base door with lock
- ISO 9001, ISO 14001, CE, RoHS, SGS
- 10-year structural / 5-year finish warranty
Advanced Finish Technologies for Lasting Protection
We offer two premium surface treatment processes to match your project requirements for aesthetics, durability, and environmental conditions.
Electroplating Finish
Our electroplating process deposits a uniform metallic coating onto the stainless steel substrate through electrolytic deposition. This creates a dense, mirror-bright protective layer that enhances both corrosion resistance and visual appeal.
- Chrome, zinc, and nickel plating options available
- Coating thickness: 5–25μm with precise uniformity
- Mirror-bright or satin finish aesthetics
- Excellent adhesion with salt spray resistance >1000 hours
- Ideal for coastal areas and high-humidity environments
- Cost-effective for large-volume municipal projects
Powder Coating Finish
Electrostatic powder coating applies a dry polymer powder that is cured under heat to form a tough, continuous film. This process delivers exceptional color consistency, UV stability, and mechanical resistance far exceeding conventional liquid paints.
- Full RAL color matching — unlimited color options
- Coating thickness: 60–120μm for maximum protection
- UV-resistant polyester and polyurethane formulations
- Impact and abrasion resistant surface
- Salt spray resistance >2000 hours
- Environmentally friendly — zero VOC emissions

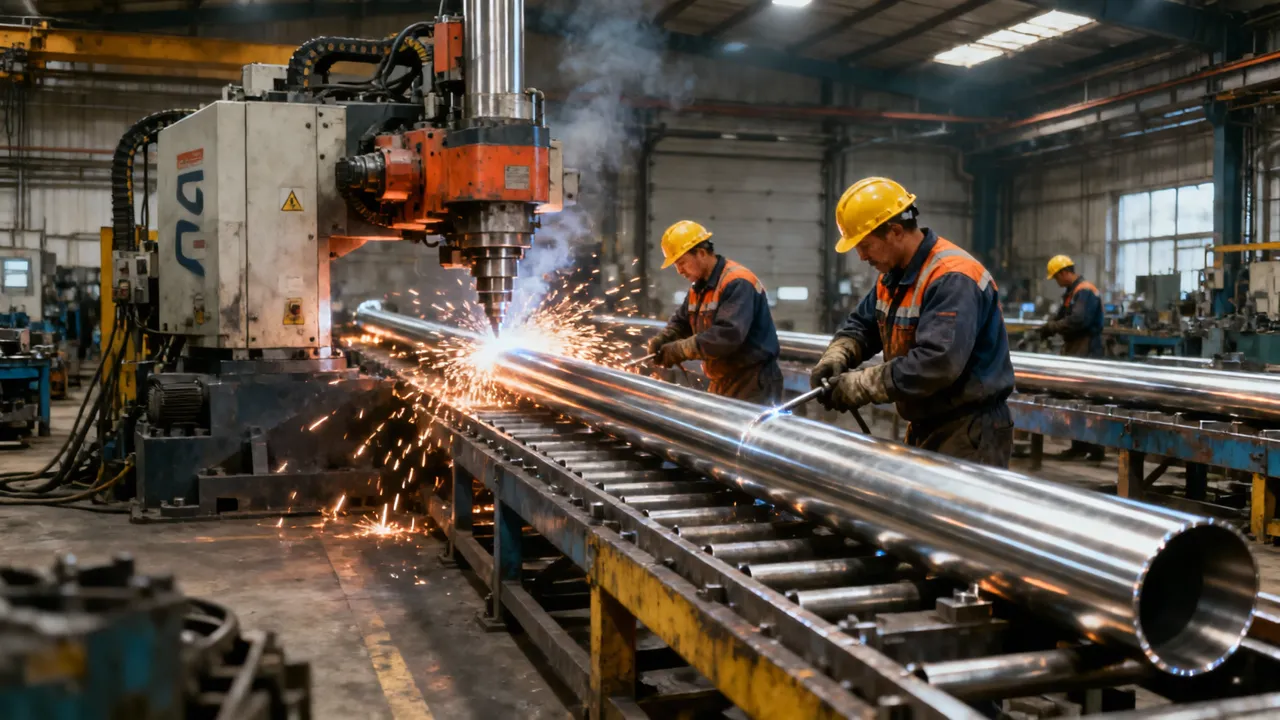

From Raw Steel to Finished Excellence
Our vertically integrated manufacturing facility controls every step of production, ensuring consistent quality from material sourcing to final packaging.
Material Selection & Cutting
Premium SS304/SS316 coils are inspected, certified, and precision-cut to specification using CNC plasma cutting systems.
CNC Taper Bending
Computer-controlled press brake forms the tapered profile with ±0.5mm tolerance, ensuring consistent geometry across every pole.
Automated Welding
Longitudinal seam welding using submerged arc welding (SAW) process produces full-penetration welds with X-ray inspection.
Surface Treatment
Electroplating or powder coating applied in climate-controlled booths with automated spray systems for uniform coverage.
Quality Inspection & Packaging
100% dimensional check, coating thickness verification, and salt spray testing. Poles are wrapped and palletized for container loading.
Trusted in Projects Worldwide
Our stainless steel tapered light poles are deployed across diverse environments, from bustling city centers to serene park landscapes.

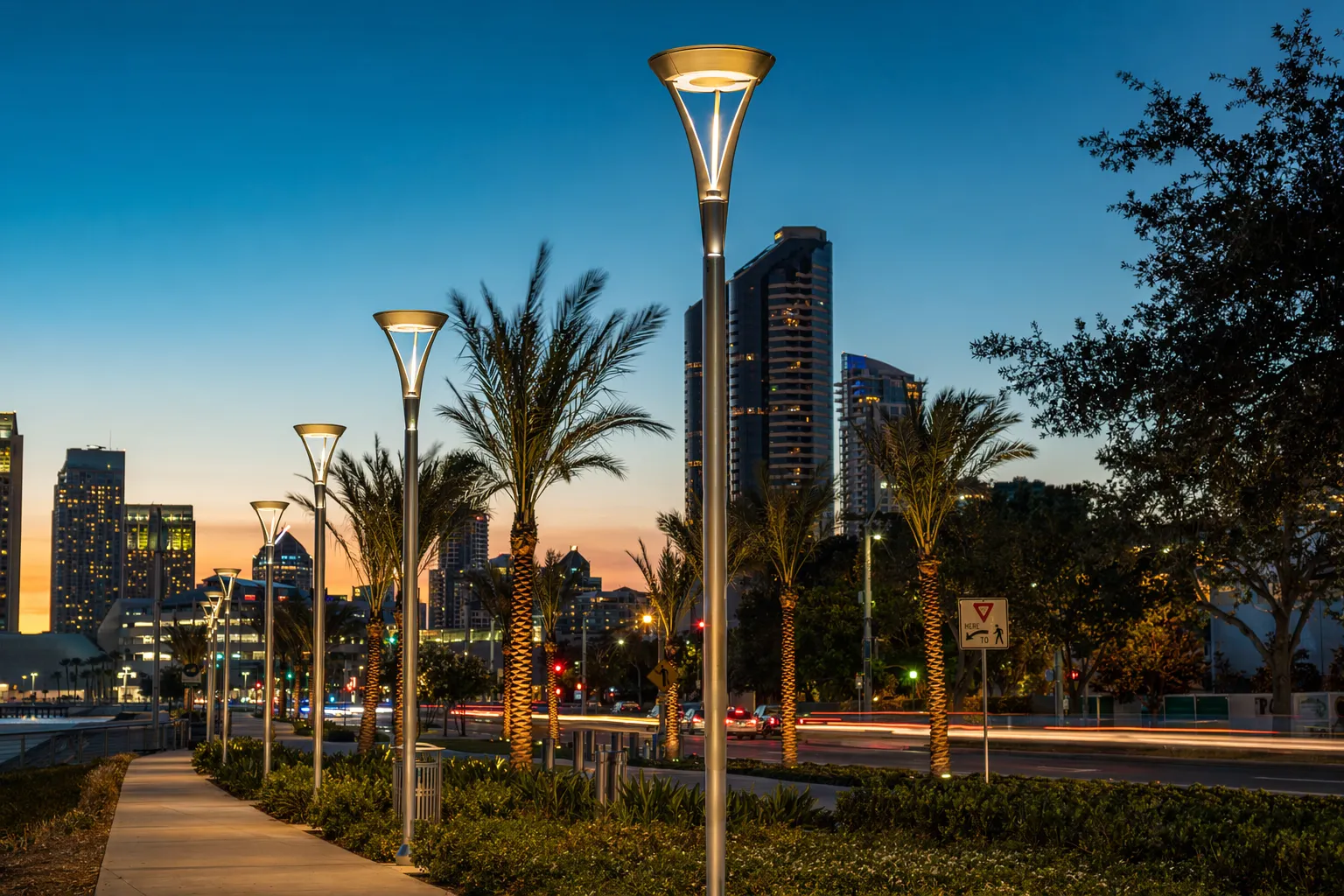

Urban Roads & Boulevards
Elegant streetscape lighting that enhances city aesthetics while providing safe illumination for traffic and pedestrians.
Highways & Interchanges
High-mast configurations for elevated roads and interchanges with superior wind resistance and structural stability.
Parks & Public Spaces
Decorative configurations for gardens, walkways, and recreational areas blending seamlessly with landscape design.
- Deep Design & Engineering Support
- CAD & Technical Drawings
- 3D Renderings & Visualization
- Prototyping & Sampling
- Flexible Manufacturing (OEM & ODM)
- Street Lighting & Roadway Poles
- Commercial & Residential Landscape Lighting
- High Mast Poles for areas, ports, and stadiums
- Decorative & Architectural Poles for urban beautification projects
- Solar Light Poles
