Stainless Steel Single Arm Light Pole

SUS304 or SUS316 stainless steel construction with electropolished or powder-coated finish options for roads, parks, plazas and commercial lighting infrastructure. Material grade and finish are selected for the project environment.

Product Advantages

Why Choose Our Stainless Steel Light Poles

Built to endure the harshest environments while maintaining structural integrity and aesthetic appeal for decades.

Superior Corrosion Resistance

Manufactured from SUS304 or SUS316 stainless steel alloy, providing exceptional resistance to rust, salt spray, and chemical corrosion — even in coastal and industrial zones.

Wind-Resistant Engineering

Wind-load design is reviewed for the project location, mounting height, arm outreach, luminaire weight and effective projected area. The final configuration is confirmed in the approved project drawing.

Modular Design Flexibility

Compatible with LED, HPS, and induction luminaires. Single arm design with adjustable tilt angle from 0-15°. Custom arm lengths and heights available for project-specific requirements.

Dual Surface Treatment Options

Choose between mirror-finish electropolishing for maximum corrosion protection or powder coating for custom color matching — both deliver exceptional long-term durability.

Sustainable & Recyclable

Stainless steel is recyclable and can support long service intervals when the grade and finish suit the exposure environment. Any project sustainability credits depend on the complete project documentation.

Easy Installation & Maintenance

The anchor-base configuration supports planned installation and access for inspection. Cleaning and maintenance frequency depend on the surface finish, exposure environment and site conditions.

Technical Specifications

Product Specifications

Standard specifications for our stainless steel single arm light pole series. Custom configurations available upon request.

SUS304 / SUS316L Stainless Steel
3m - 12m (customizable)
127mm - 255mm (based on height)
3.0mm - 6.0mm (based on height & wind load)
0.8m - 2.0m (adjustable)
0° - 15° adjustable
Electropolishing or Powder Coating (RAL color)
300×300mm - 400×400mm, thickness 10-16mm
M16 / M20 / M24 (4-bolt pattern)
Project-specific; confirmed from site wind criteria, pole height, arm outreach and luminaire EPA
LED (30W-200W), HPS (70W-400W), Induction
Internal wiring through pole body; junction-box specification confirmed per project
Luminaire and electrical protection classes depend on the selected components
Depends on grade, finish, exposure, installation and maintenance; warranty confirmed in quotation
Applicable documents and certification scope are confirmed for the selected product and order

Surface Finishing

Premium Surface Treatment Options

Two industry-leading surface finishing processes available, each tailored for specific environmental and aesthetic requirements.

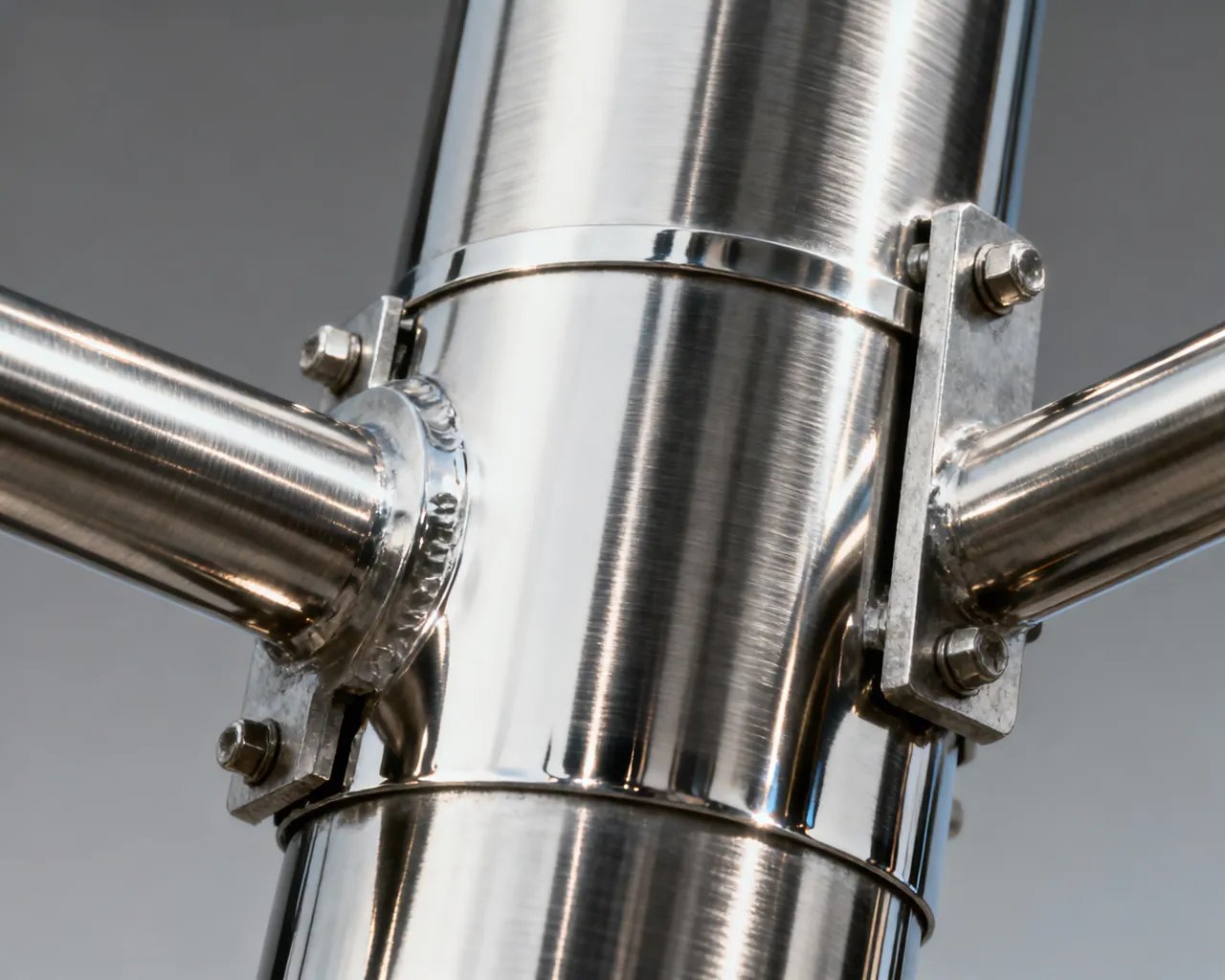

Electropolishing Treatment

An electrochemical process that removes the surface layer of stainless steel, producing a smooth, bright, mirror-like finish. This treatment enhances the natural corrosion resistance of stainless steel by removing surface impurities and creating a chromium-rich passive layer.

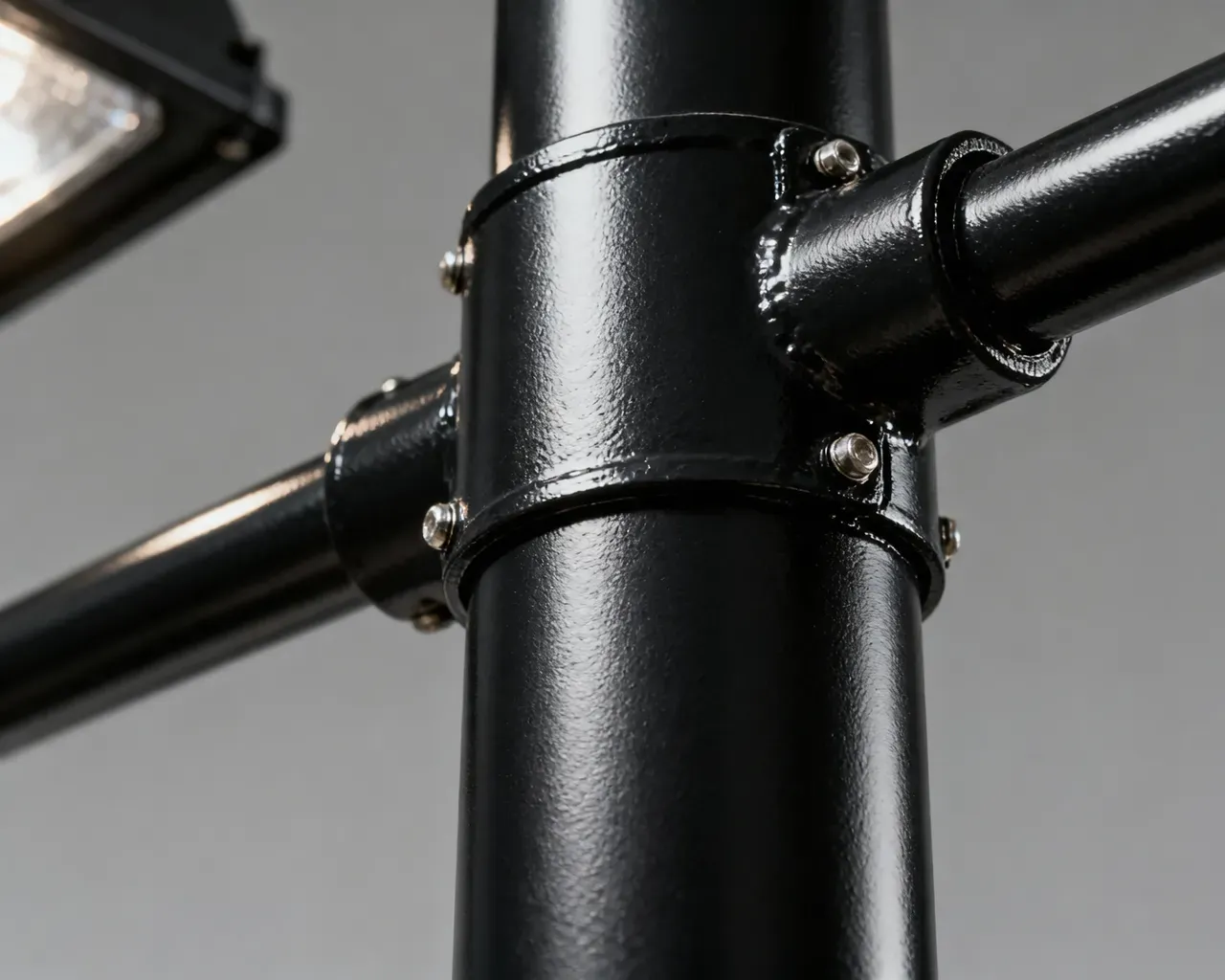

Powder Coating Treatment

Thermosetting polyester powder applied via electrostatic spray and cured at 180-200°C, forming a durable protective shell. Available in any RAL color to match your urban design scheme or brand identity while providing superior UV and weather resistance.

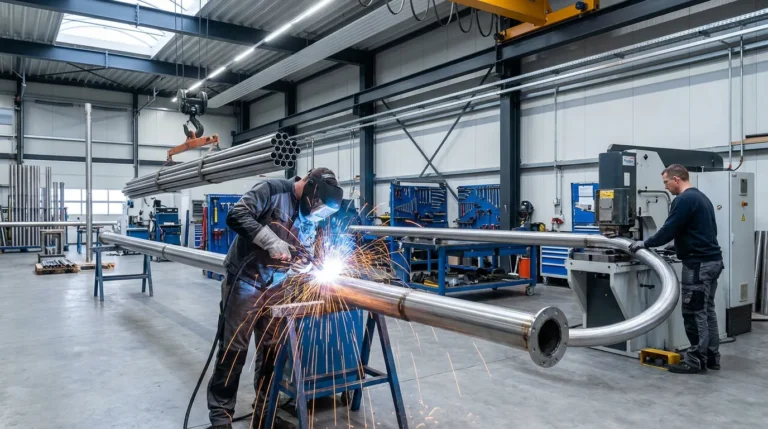

Manufacturing Process

Precision Production Facility

Manufacturing and quality-control steps are carried out against the approved drawings, material requirements and project-specific inspection plan.

Applicable Records

Quality-management, material and inspection records are reviewed for the selected product and order. Ask for currently valid certificates applicable to the contracting entity and model.

Project Documentation

Applicable test reports, drawings and certification scope are confirmed for the selected product, destination market and order.

Component Protection

Luminaire and electrical protection ratings depend on the selected components. Required IP ratings are confirmed in the approved specification.

Project-Specific Warranty

Warranty scope and duration are confirmed in the quotation for the selected material, finish, design and application.

Material Selection & Cutting

Premium SUS304/316 stainless steel plates are inspected for grade certification, then precision-cut using CNC laser cutting machines to ensure exact dimensions and clean edges.

CNC Bending & Forming

Computer-controlled forming is used to produce the pole body to the approved dimensions. Welding method and inspection requirements are defined by the project drawing and applicable quality plan.

Surface Treatment

Electropolishing bath or powder coating line applies the selected finish under controlled temperature and humidity. Each batch undergoes coating thickness and adhesion testing.

Assembly & Quality Inspection

The arm bracket, base plate and wiring channel are assembled, followed by dimensional and surface inspection. Any project-specific testing is carried out according to the approved quality plan.

Application Scenarios

Versatile Outdoor Lighting Solutions

Our stainless steel single arm light poles are deployed across diverse environments — from urban streets to scenic parks and large commercial complexes.

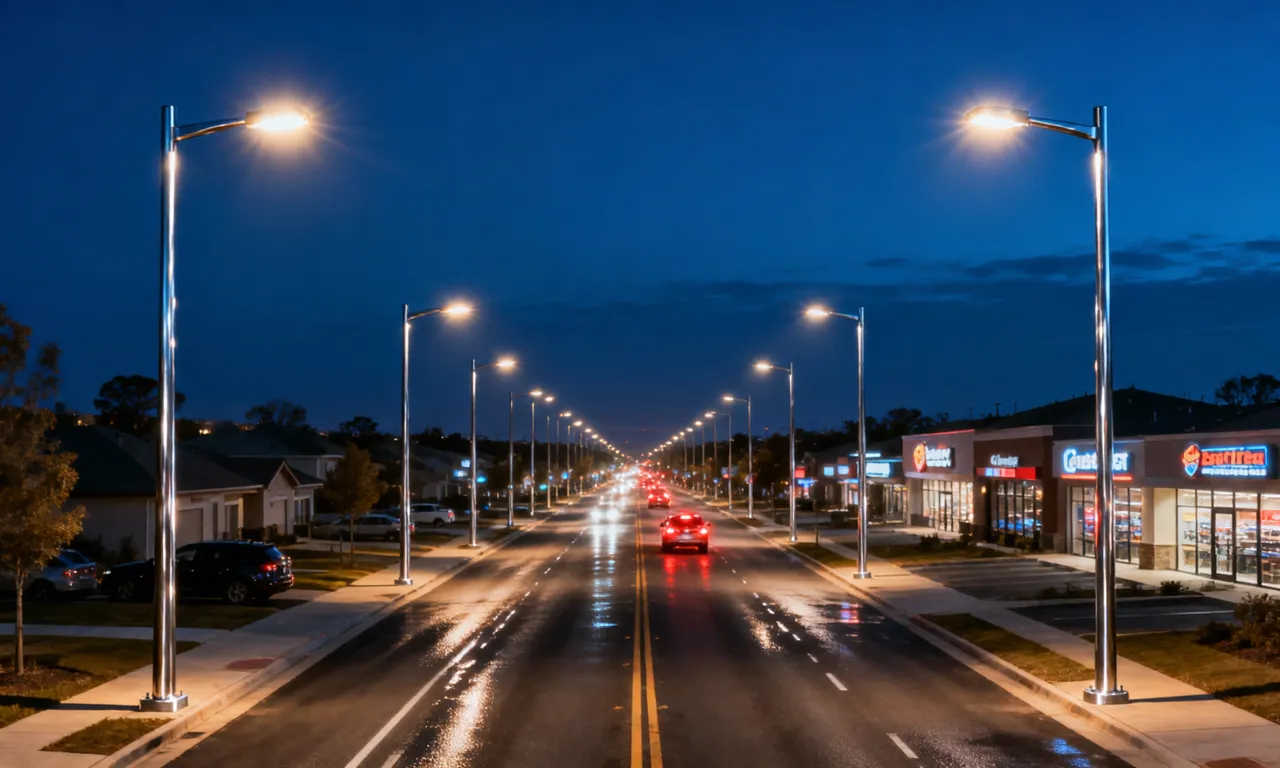

Urban Street Lighting

Roads, avenues, and residential streets with uniform illumination and modern aesthetics. Heights 6-10m with 15-30m spacing.

Park & Landscape Lighting

Walkways, gardens, and recreational areas requiring elegant, low-glare lighting that complements natural surroundings. Heights 3-6m.

Commercial & Parking Areas

Plazas, shopping centers, and parking lots requiring wide-area illumination with high uniformity. Heights 8-12m with high-lumen LED modules.
