Premium Outdoor Lighting Solutions

Stainless Steel Double Arms Light Pole

Engineered for excellence. Our premium SS304/SS316L stainless steel light poles combine structural integrity with stunning aesthetics — available with electrolytic polishing or powder coating surface finishes.

3–15m

Height Range

25+

Year Lifespan

160km/h

Wind Resistance

Product Overview

Built to Last. Designed to Impress.

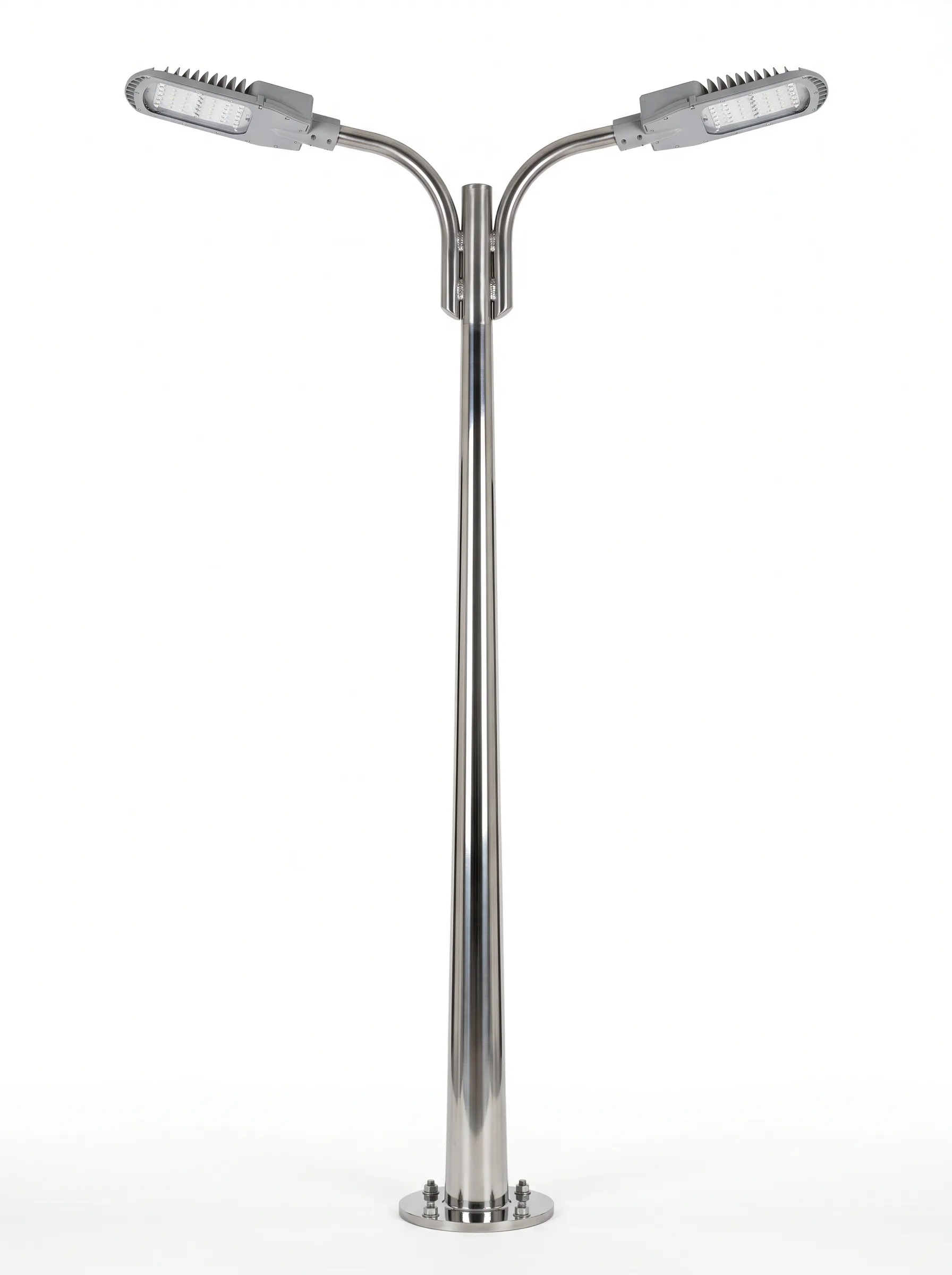

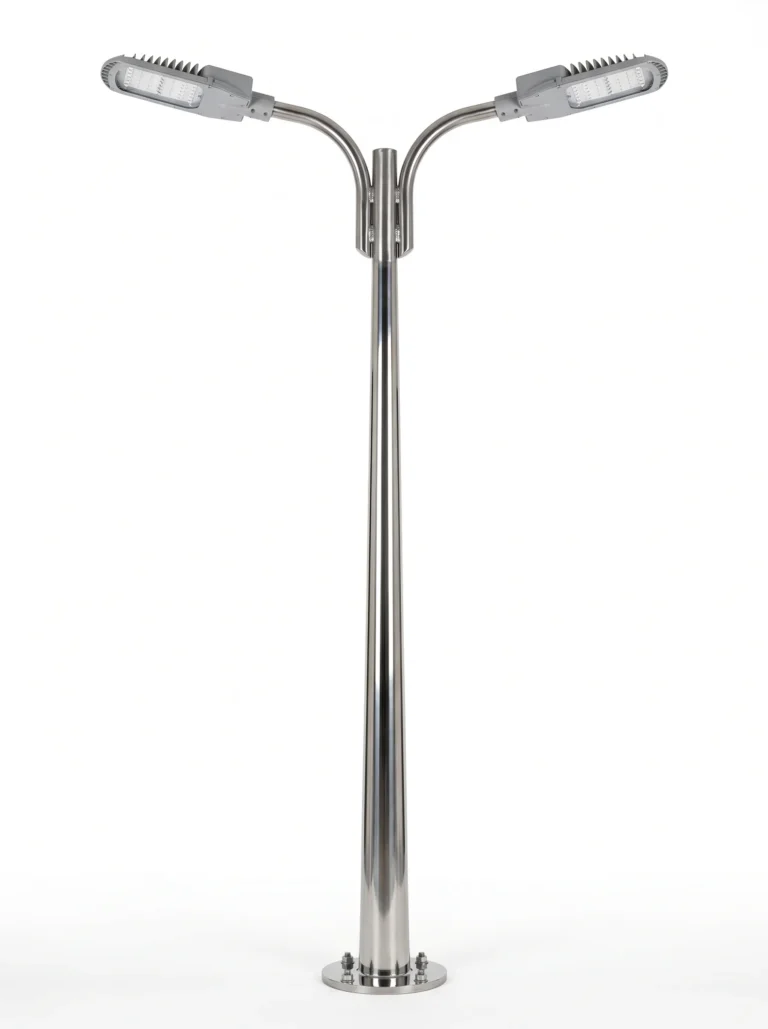

Our stainless steel double arms light poles are precision-engineered from premium SS304 and SS316 stainless steel, delivering unmatched corrosion resistance and structural performance for demanding outdoor environments.

The dual-arm configuration provides symmetrical illumination across roadways, walkways, and open areas, while the natural elegance of stainless steel enhances any urban landscape. Each pole is available with two premium surface treatment options — electrolytic polishing for a mirror-like natural finish, or powder coating for customized color and additional protection.

Corrosion Resistant

SS304/SS316L steel withstands harsh weather, salt spray, and industrial atmospheres without rusting.

25+ Year Lifespan

Minimal maintenance requirements ensure decades of reliable, beautiful performance.

Dual Arm Design

Symmetrical light distribution for roads up to 12m wide. Arms adjustable at 30°–45°.

Custom Solutions

OEM/ODM available. Custom heights, arm lengths, base designs, and surface treatments.

Technical Specifications

Engineered for Performance

Every dimension and detail is calculated for optimal structural integrity, illumination coverage, and long-term durability.

Material Grade
Overall Height
Arm Length
Pole Diameter (Base)
Pole Diameter (Top)
Wall Thickness
Base Plate
Arm Angle
Wind Load Rating
Luminaire Compatibility
Surface Finish — Polished
Surface Finish — Coated
Protection Class
Anti-corrosion Treatment
Cable Entry
Service Life
Certifications

SS304 / SS316 / SS316L Stainless Steel
6m — 14m
0.8m — 2.5m per side
Ø127mm — Ø300mm
Ø60mm — Ø80mm
2.5mm — 6.0mm
Custom bolt pattern
15° — 60° adjustable
Up to ≤200 km/h
Fits all standard brackets
Buff or electrolytic options
Any RAL color, 80–120μm
IP66 available
Additional PVD coating option
Internal junction box option
30+ years with proper treatment
UL, SAA on request

Surface Treatment Options

Two Premium Finishes, One Superior Standard

Choose the surface treatment that best suits your project requirements — from the timeless elegance of electrolytic polishing to the versatile color options of powder coating.

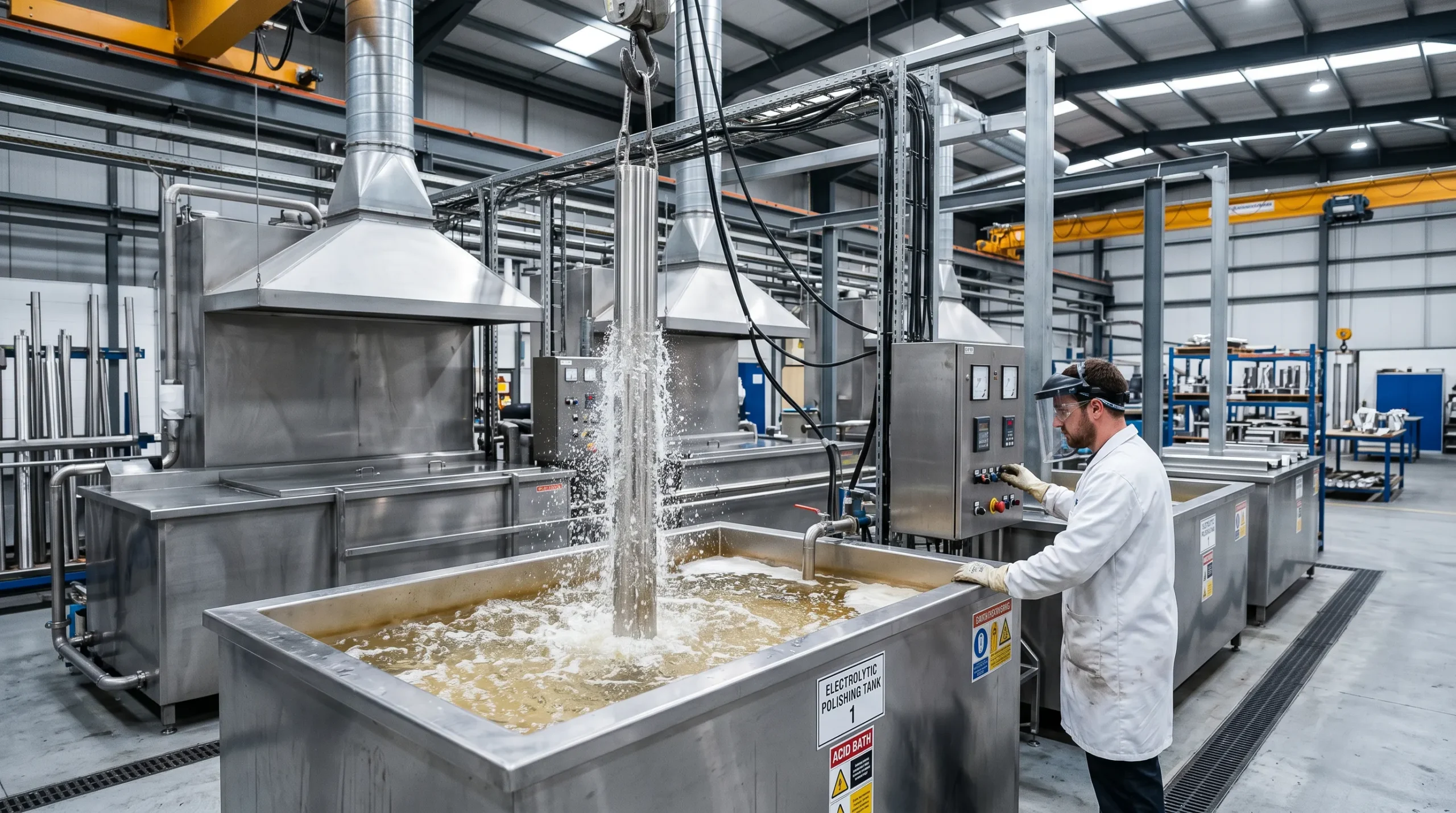

Mirror-Like Natural Finish

Electrolytic polishing (electropolishing) is an electrochemical process that removes the outer layer of stainless steel, leaving a smooth, bright, mirror-like passive surface. This process enhances the natural beauty of stainless steel while providing superior corrosion resistance.

Surface roughness reduced to Ra ≤ 0.5μm
Chromium oxide passive layer enhanced by 300%
Eliminates micro-imperfections and embedded contaminants
Self-healing passive film — 5x more corrosion resistant
UV-stable — maintains brilliance indefinitely without fading
No coatings to chip, peel, or degrade over time
Ideal for coastal, marine, and chemical environments

Color Versatility Meets Durability

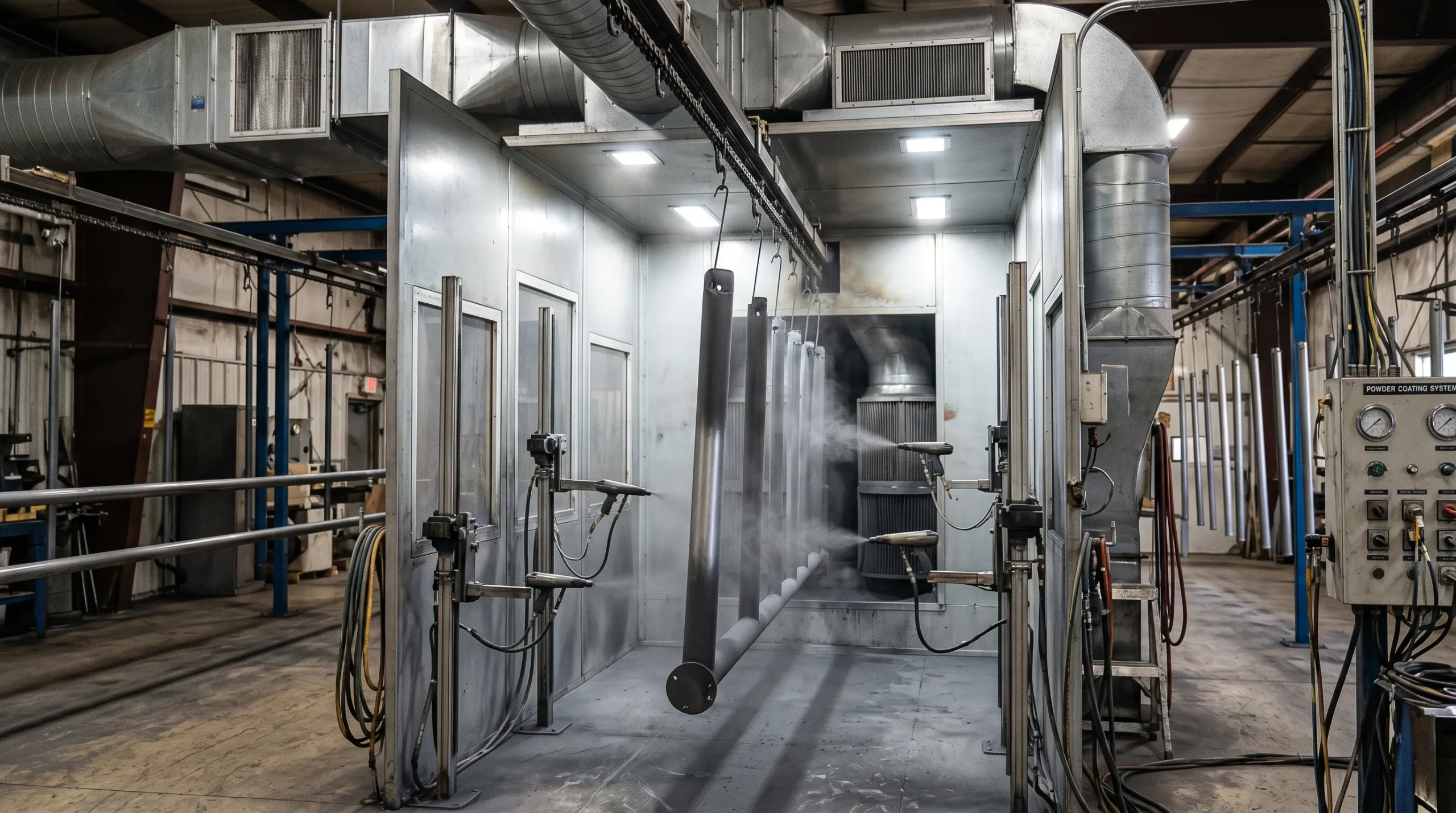

Electrostatic powder coating applies a dry polymer powder that is cured under heat to form a tough, uniform finish. Available in any RAL color, powder coating provides excellent UV resistance, impact protection, and color consistency across large production runs.

Available in 200+ RAL colors with matte, satin, or textured finishes
Film thickness: 80–120μm uniform coverage
Excellent UV resistance — ΔE < 1.0 after 5000hr QUV test
Salt spray resistance: 1000+ hours (ASTM B117)
Impact resistance: 50 kg·cm direct, no cracking or peeling
Environmentally friendly — zero VOC emissions
Perfect for branding, urban color schemes, and themed projects

Manufacturing Process

From Raw Material to Finished Product

Every light pole passes through a rigorous multi-step production process, with quality checks at each stage to ensure consistent performance and finish.

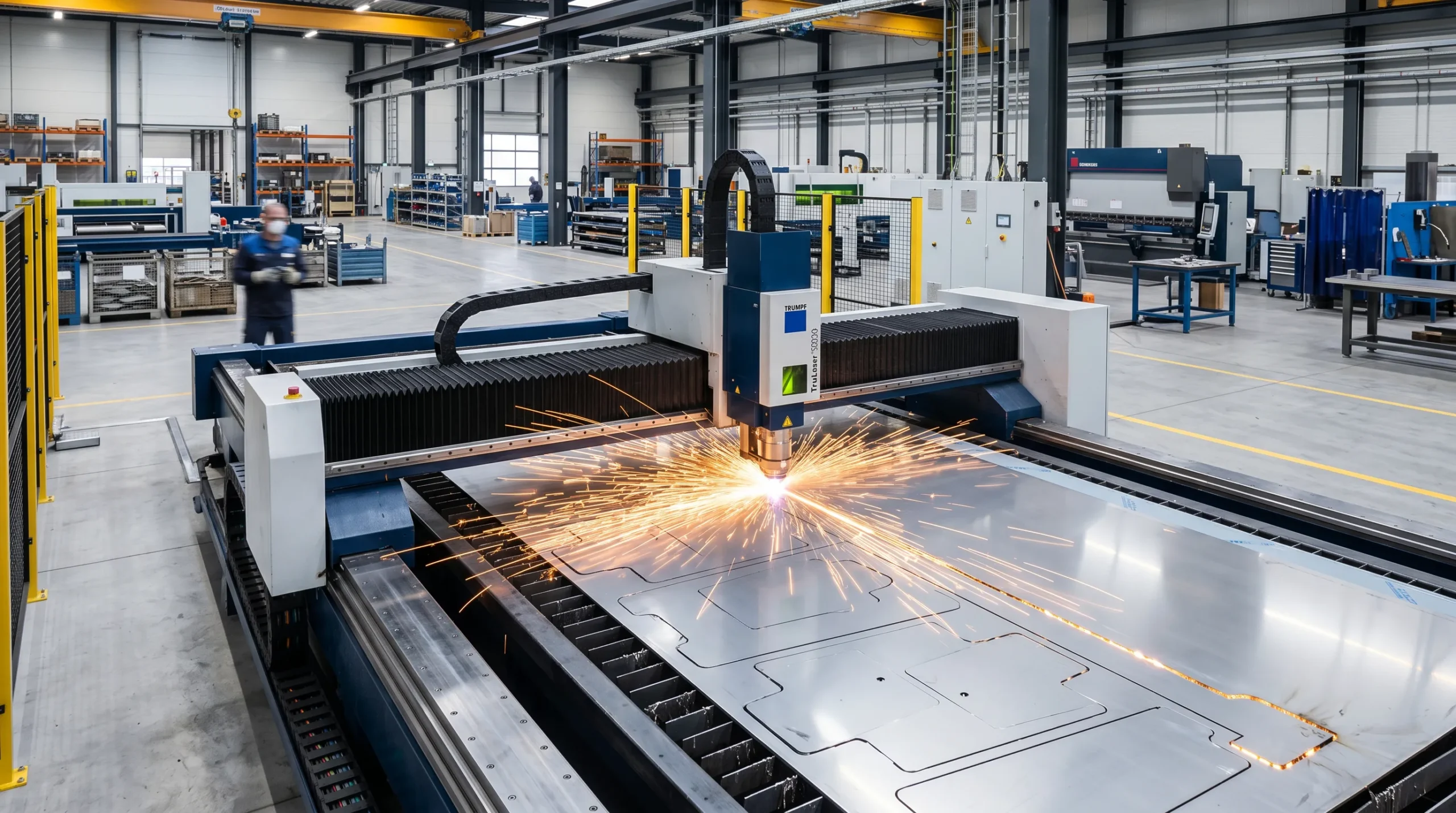

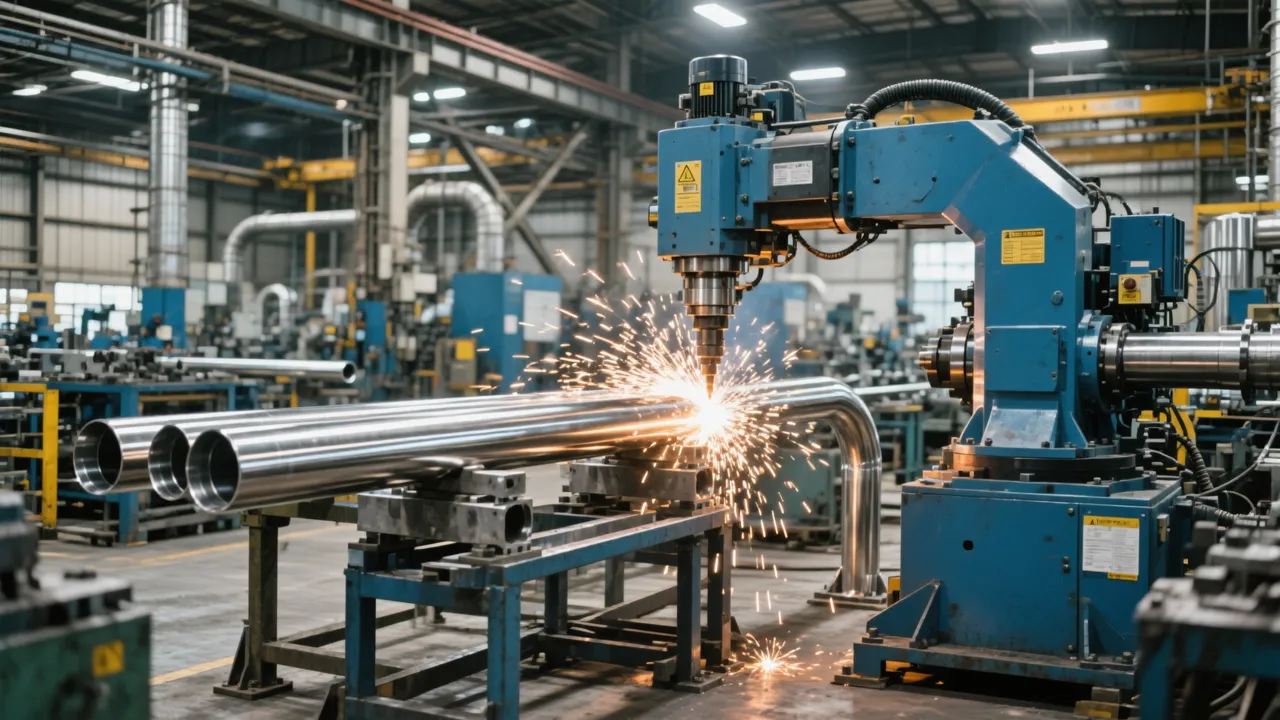

Our ISO 9001-certified production facility utilizes state-of-the-art CNC laser cutting, automatic TIG welding, and precision surface treatment lines. Each pole undergoes a 12-point quality inspection including dimensional checks, weld integrity testing (ultrasonic), surface quality assessment, and load testing before packaging. We ship worldwide in export-standard packaging with full container and less-than-container load options.

Applications

Illuminating Spaces Worldwide

From major highways to luxury parks, our stainless steel double arms light poles deliver reliable, beautiful illumination in the most demanding environments.

Highway & Expressway

High-mast illumination for safe nighttime driving

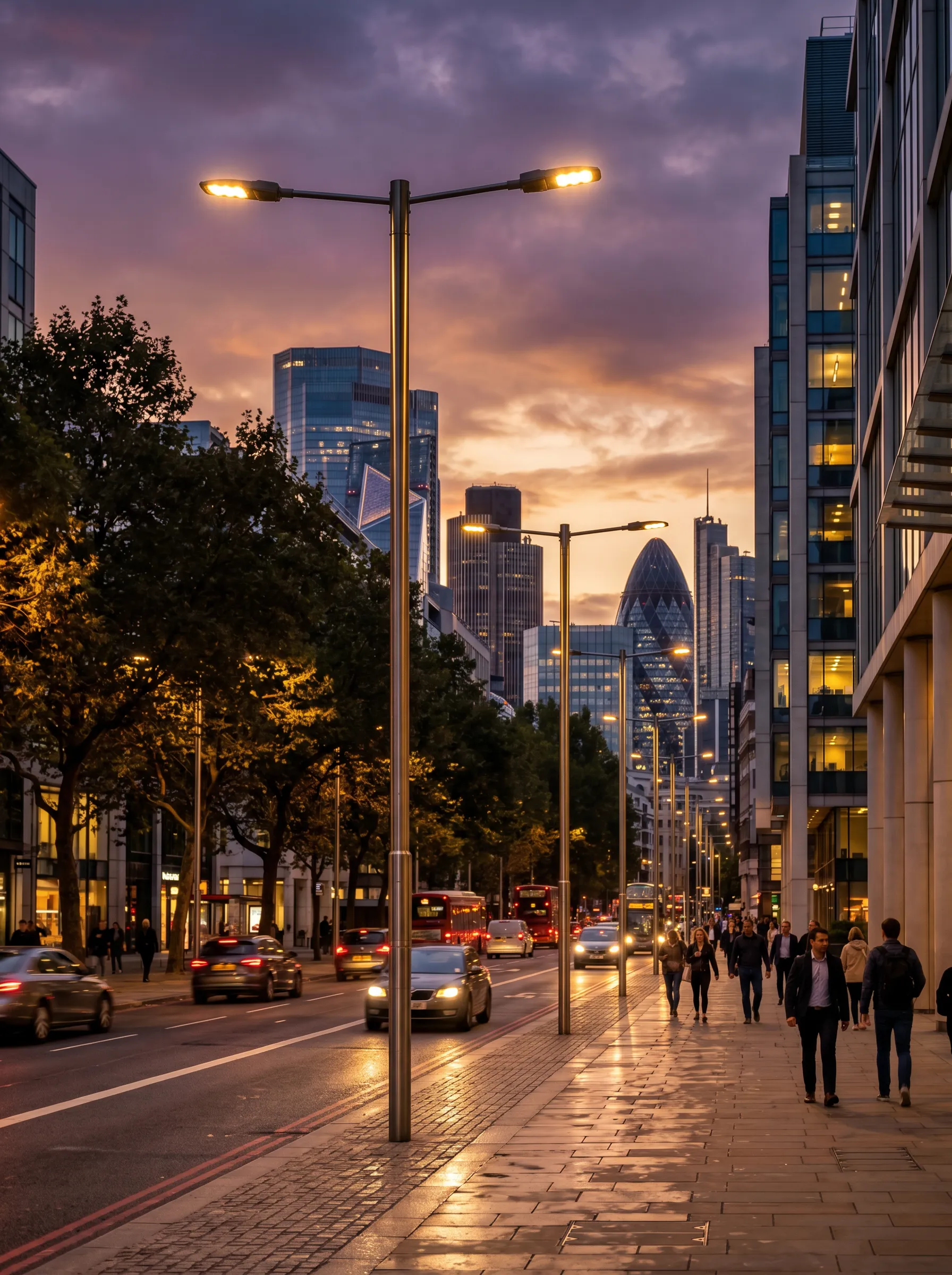

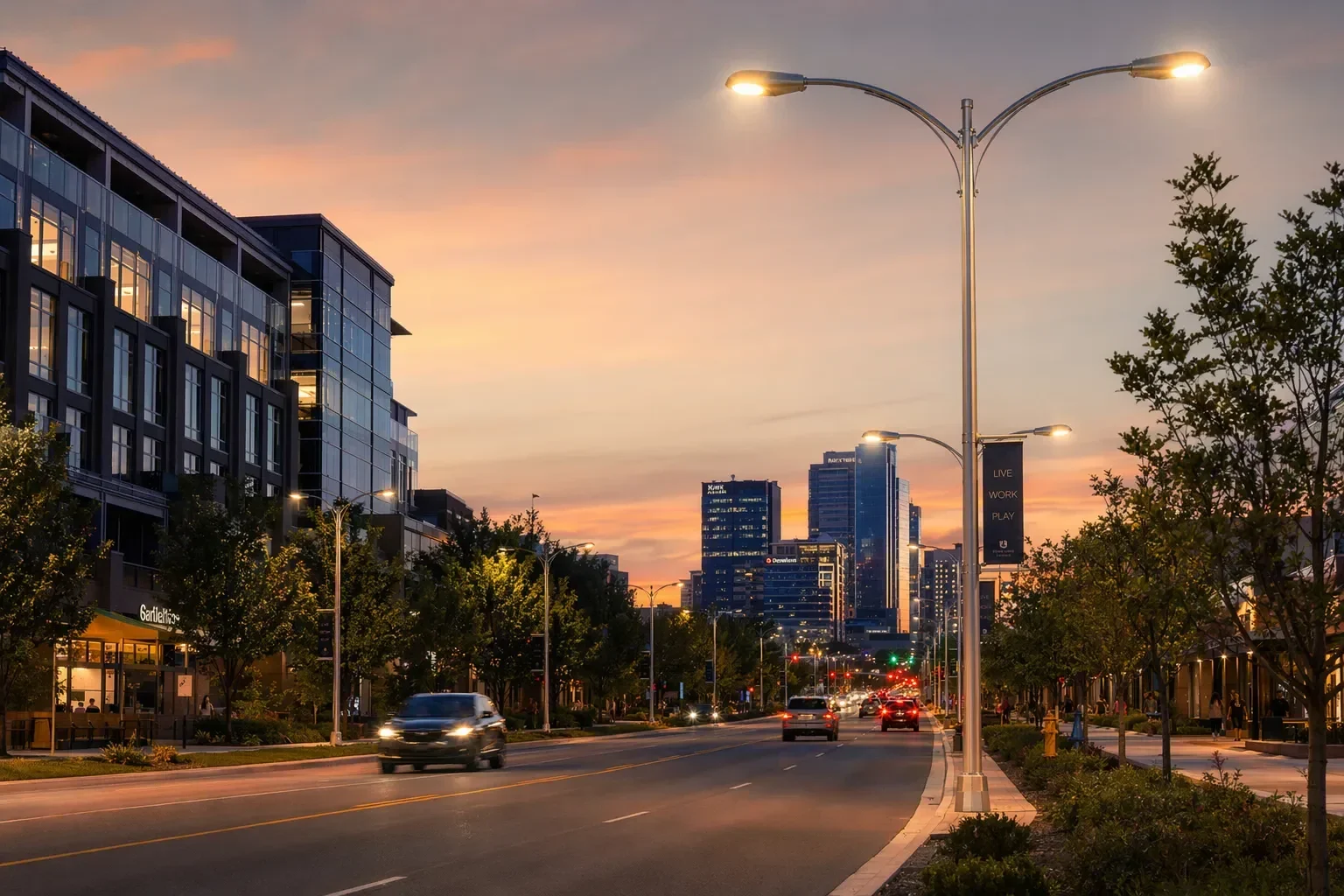

Urban Streets

Elegant city lighting

Commercial Areas

Salt-spray resistant lighting for marine environments

Common Applications

Our double arms light poles are specified by architects, engineers, and municipal authorities for projects where longevity, aesthetics, and low maintenance are critical.

Urban arterial roads & residential streets
Highways, expressways & interchanges
Public parks, gardens & recreational areas
Commercial plazas & shopping districts
University campuses & institutional grounds
Parking lots & transit stations

Why Specifiers Choose Our Poles

When the project demands materials that perform for decades without compromise, stainless steel is the definitive choice. No painting cycles, no rust stains, no structural degradation.

Zero repainting required over 25+ year lifespan
100% recyclable — contributes to LEED credits
SS316 grade available for coastal/marine environments
Maintains appearance without ongoing maintenance costs
Superior lifecycle cost vs. galvanized steel or aluminum
Premium aesthetic that enhances property values

Frequently Asked Questions

Common Questions

Everything you need to know about our stainless steel double arms light poles.

What is the difference between electrolytic polishing and powder coating?

Electrolytic polishing creates a mirror-like passive oxide layer that enhances the natural stainless steel beauty with superior corrosion resistance. Powder coating applies a durable colored finish in any RAL color with excellent UV and weather resistance. The choice depends on your project's aesthetic and environmental requirements.

What is the service life of stainless steel light poles?

Our stainless steel light poles have a minimum service life of 25 years with standard SS304, and 30+ years with SS316 grade or proper surface treatment. In most outdoor environments, they significantly outperform galvanized steel and aluminum alternatives.

Do you offer OEM and custom designs?

Yes, we provide full OEM/ODM services. This includes custom heights (6m–14m), arm configurations, base plate designs, luminaire mounting options, and surface treatment specifications. Send us your drawings or project requirements for a custom quote.

What is the minimum order quantity?

Our standard MOQ is 20 pieces per specification. For custom designs, the MOQ may be 50 pieces depending on complexity. We welcome trial orders for new customers — please contact our sales team to discuss your requirements.

Which surface treatment is better for coastal areas?

For coastal and marine environments, we recommend SS316 grade steel with electrolytic polishing. This combination provides the highest corrosion resistance against salt spray and humidity. Powder coating with marine-grade polyester powder is also suitable for less aggressive coastal conditions.

What certifications do your products carry?

Our light poles carry ISO 9001 quality management certification, CE marking for European markets, and RoHS compliance. We can also provide UL certification for North American markets and SAA certification for Australian markets upon request.

How are the poles packaged for shipping?

Each pole is individually wrapped in protective film and bubble wrap, then secured in reinforced wooden crates or steel frame containers for ocean freight. We support FOB, CIF, and DDP shipping terms to ports and project sites worldwide.

Can the poles withstand extreme weather conditions?

Yes. Our standard poles are rated for wind speeds up to 160 km/h (Class II) and can be engineered for up to 200 km/h for special applications. They perform reliably in temperatures from -40°C to +60°C and resist UV degradation, salt spray, and industrial pollution.
