Premium Outdoor Lighting Solutions

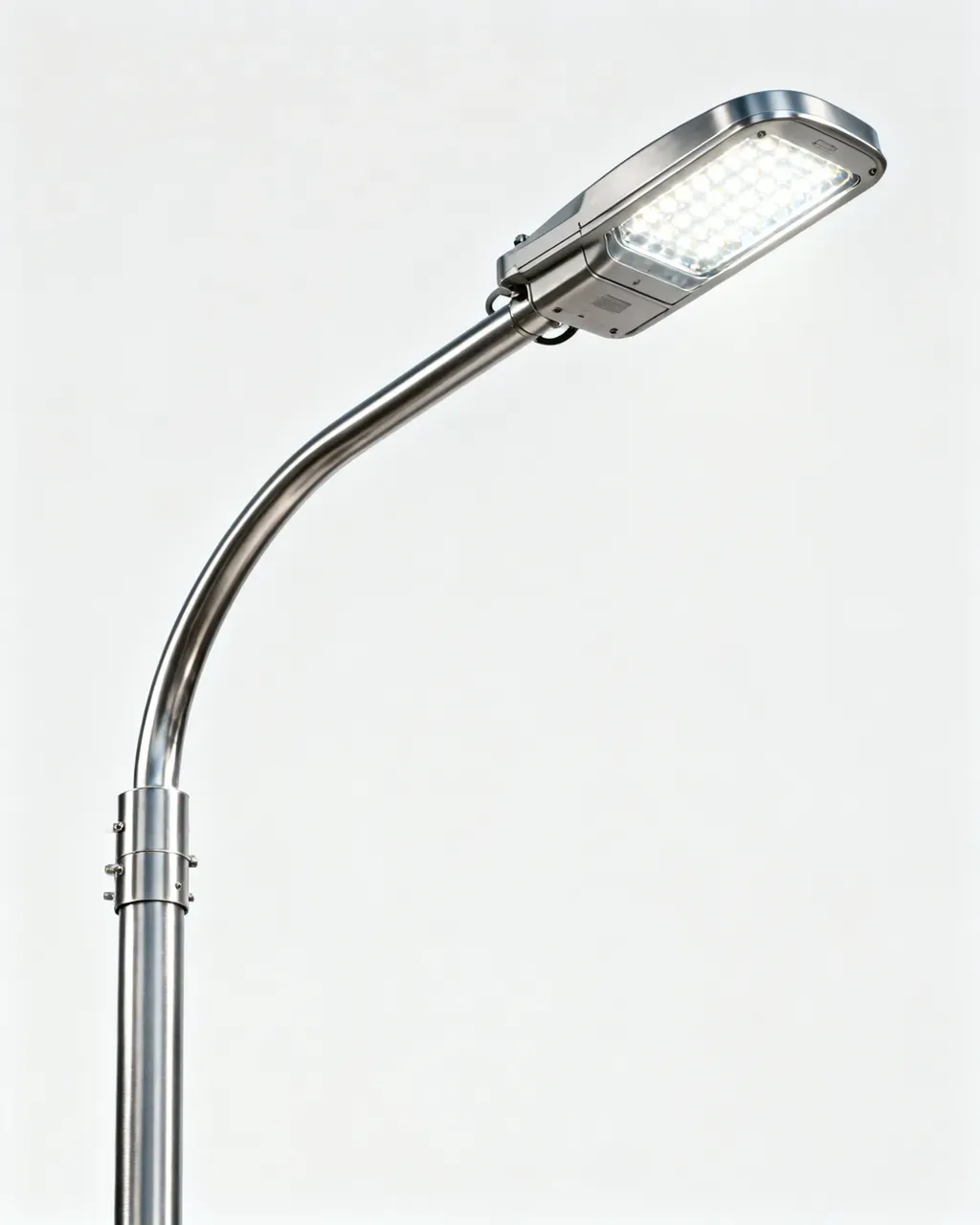

Stainless Steel Davit Arm Light Pole

Engineered for durability and elegance. Our stainless steel davit arm light poles deliver superior corrosion resistance, modern aesthetics, and decades of maintenance-free outdoor illumination for roads, parks, and commercial spaces.

SS 304/316L

Materials

OEM/ODM

Our services

IP65

Protection

Why Choose Our Davit Arm Poles

Engineered for Outdoor Excellence

Every detail is designed to withstand harsh environments while maintaining architectural beauty for decades.

304/316 Stainless Steel

Premium-grade stainless steel construction ensures exceptional resistance to rust, corrosion, and UV degradation in all weather conditions.

Wind Load Rated

Structurally engineered to withstand wind speeds up to 160 km/h, meeting international structural standards for safety and stability.

Dual Surface Finish

Choose from mirror-polished electroplating or durable powder coating. Both finishes provide enhanced protection and visual appeal.

25+ Year Lifespan

Superior material quality and advanced surface treatments deliver a service life exceeding 25 years with minimal maintenance requirements.

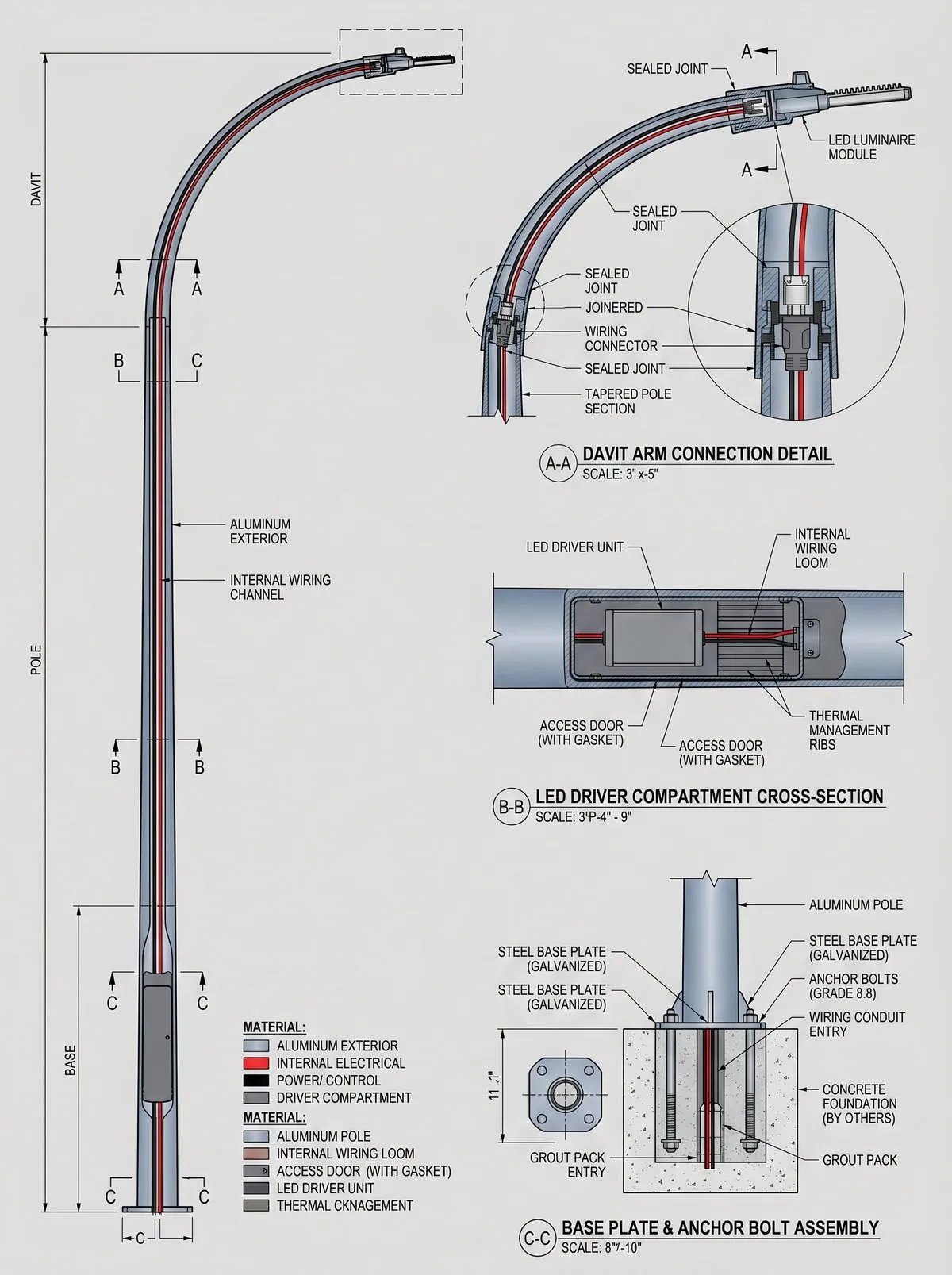

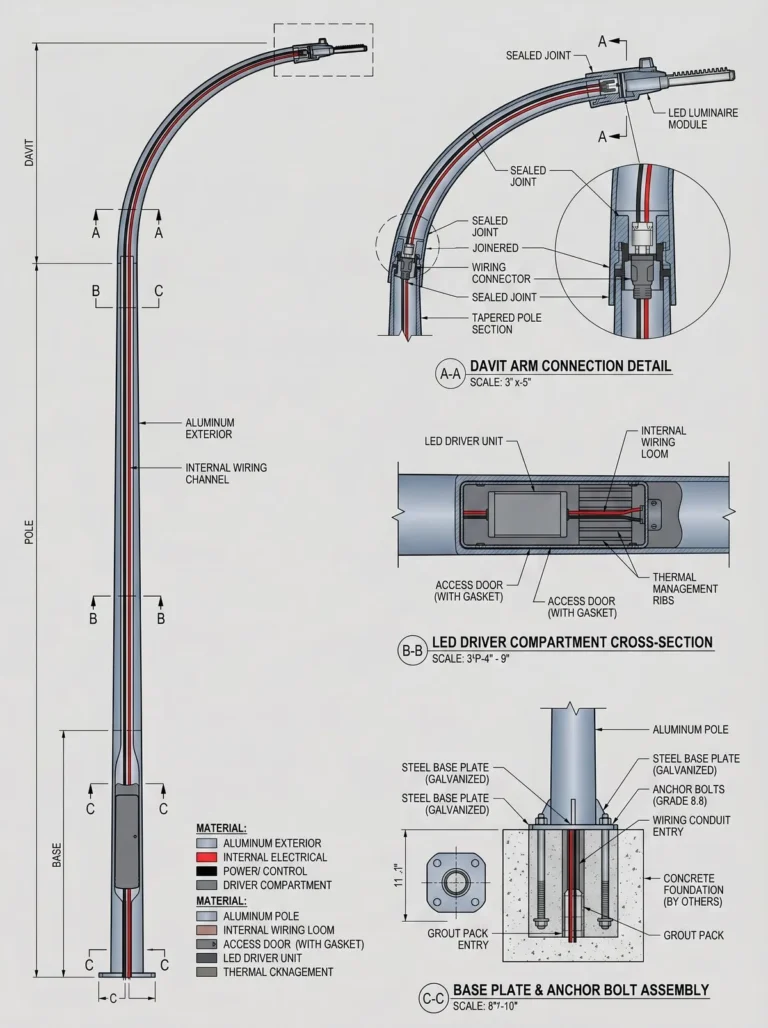

Davit Arm Design

The cantilever davit arm extends the luminaire over roadways and pathways, providing optimal light distribution and clean sightlines.

OEM/ODM Accepted

Full customization available including height, arm length, base plate design, surface finish, and branding. MOQ from 20 pieces.

Technical Data

Product Specifications

Detailed technical parameters for our stainless steel davit arm light pole series. Custom dimensions available upon request.

Material
Height Range
Pole Diameter (Base)
Pole Diameter (Top)
Wall Thickness
Arm Length (Davit)
Arm Angle
Surface Treatment
Base Plate
Wind Load Rating
Luminaire Compatibility
IP Rating
Service Life

SS 304, SS 316, SS 316L
3m - 15m
127mm - 255mm
60mm - 80mm
2.5mm - 6.0mm
0.5m - 2.5m
15° - 90°
Mirror polish, Chrome, Nickel, PVD, Any RAL color
250×250 - 450×450mm
120 - 200 km/h
Up to 300W
IP65 / IP66
25-40 years

Surface Treatment Technology

Electroplating & Powder Coating

Our advanced surface treatment processes ensure maximum corrosion protection and lasting aesthetic quality for every light pole we produce.

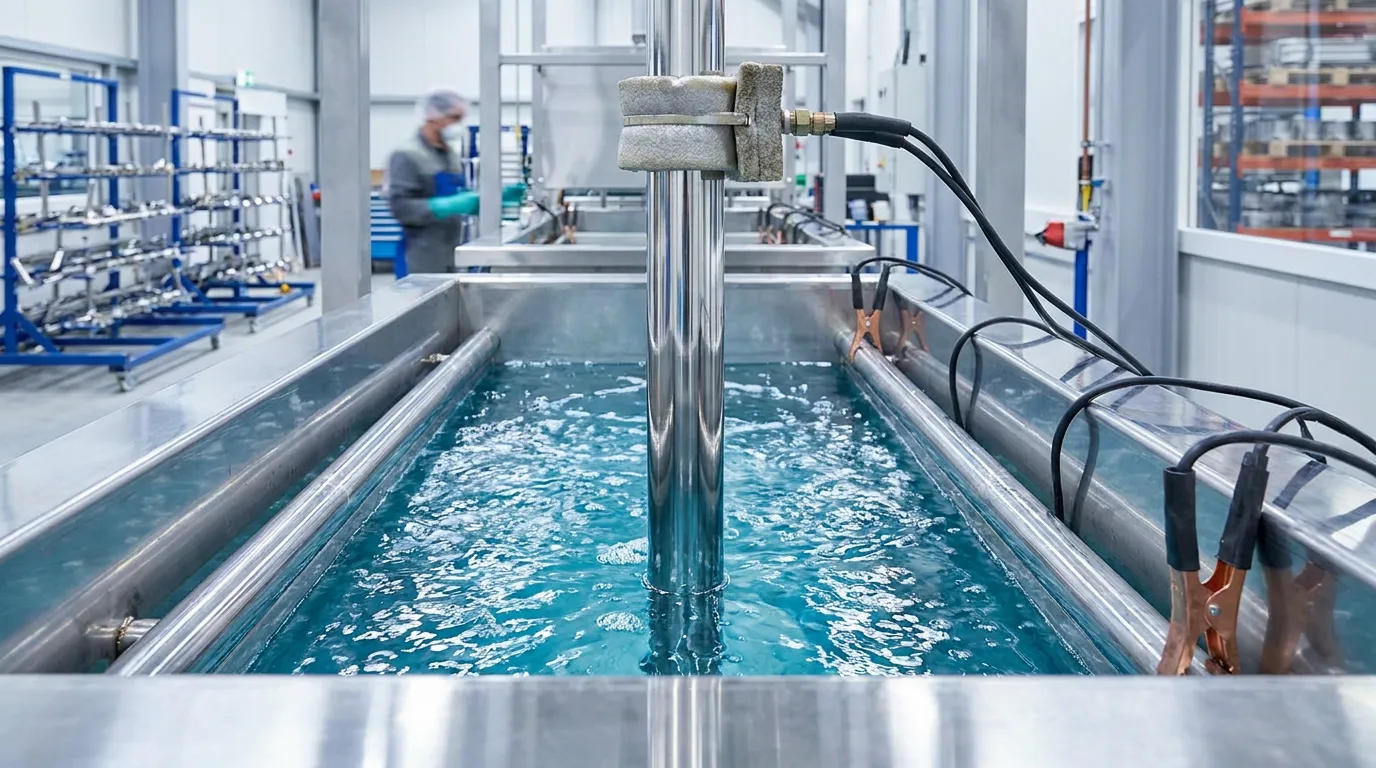

Electroplating Finish

Our electroplating process applies a uniform metallic coating through electrolytic deposition, creating a mirror-bright, corrosion-resistant surface that enhances the natural beauty of stainless steel.

Chrome or nickel plating options available
Mirror-polished reflective surface finish
Coating thickness: 8-25 microns for lasting protection
Enhanced resistance to oxidation and UV fading
Ideal for coastal and high-humidity environments
Decorative and functional dual-purpose finish

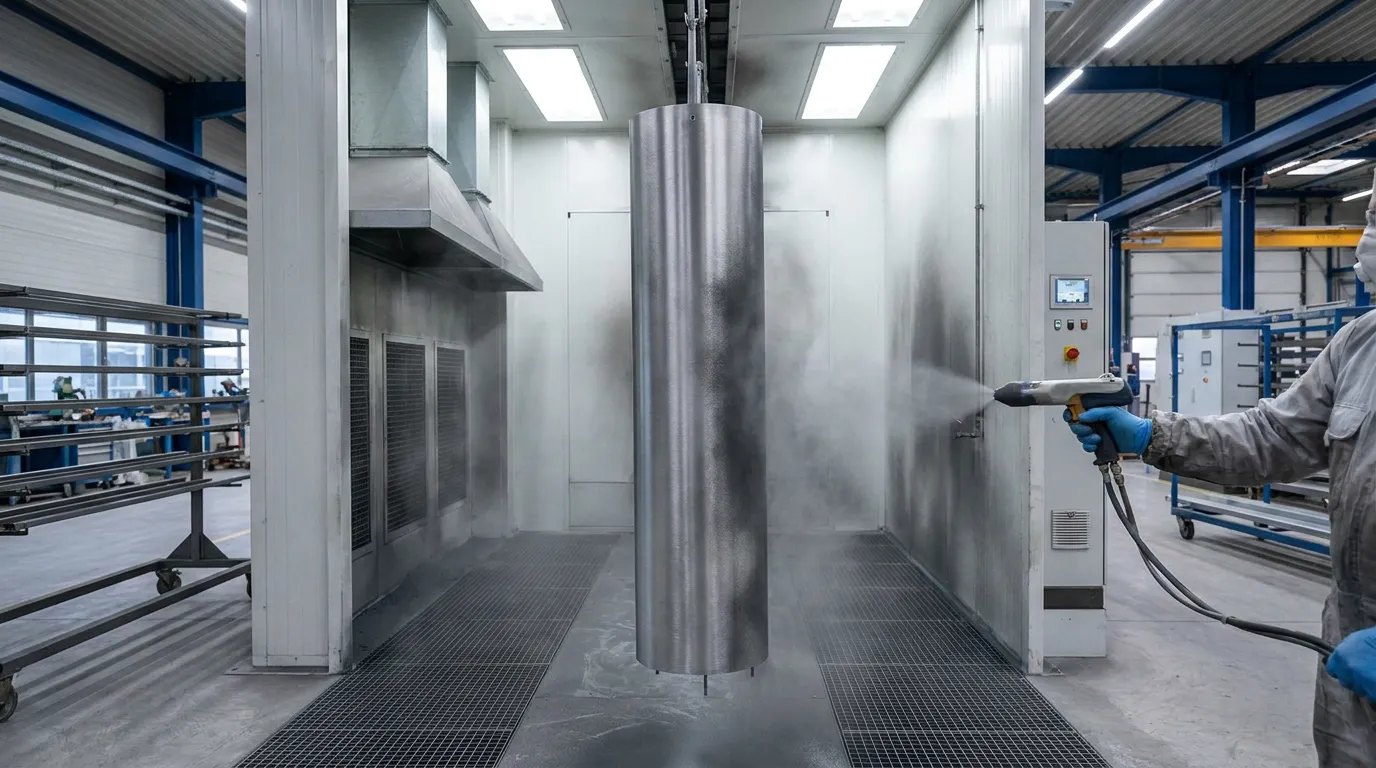

Powder Coating Finish

Electrostatic powder coating creates a tough, durable finish that far outperforms conventional paint. Available in any RAL color to match your project specifications and urban design requirements.

Available in all RAL colors for custom matching
Coating thickness: 60-120 microns for superior protection
UV-stable polyester or epoxy-polyester hybrid powder
Resistant to chipping, scratching, and fading
Salt spray test rated to 1000+ hours
Smooth matte, satin, or textured finish options

Manufacturing Process

Precision Engineered, Quality Assured

Every davit arm light pole undergoes a rigorous multi-stage manufacturing process, from raw material selection through final inspection, ensuring consistent quality and structural integrity.

Material Selection & Cutting

Premium SS 304/316 tubes are inspected and precision-cut to specification using CNC laser cutting machines.

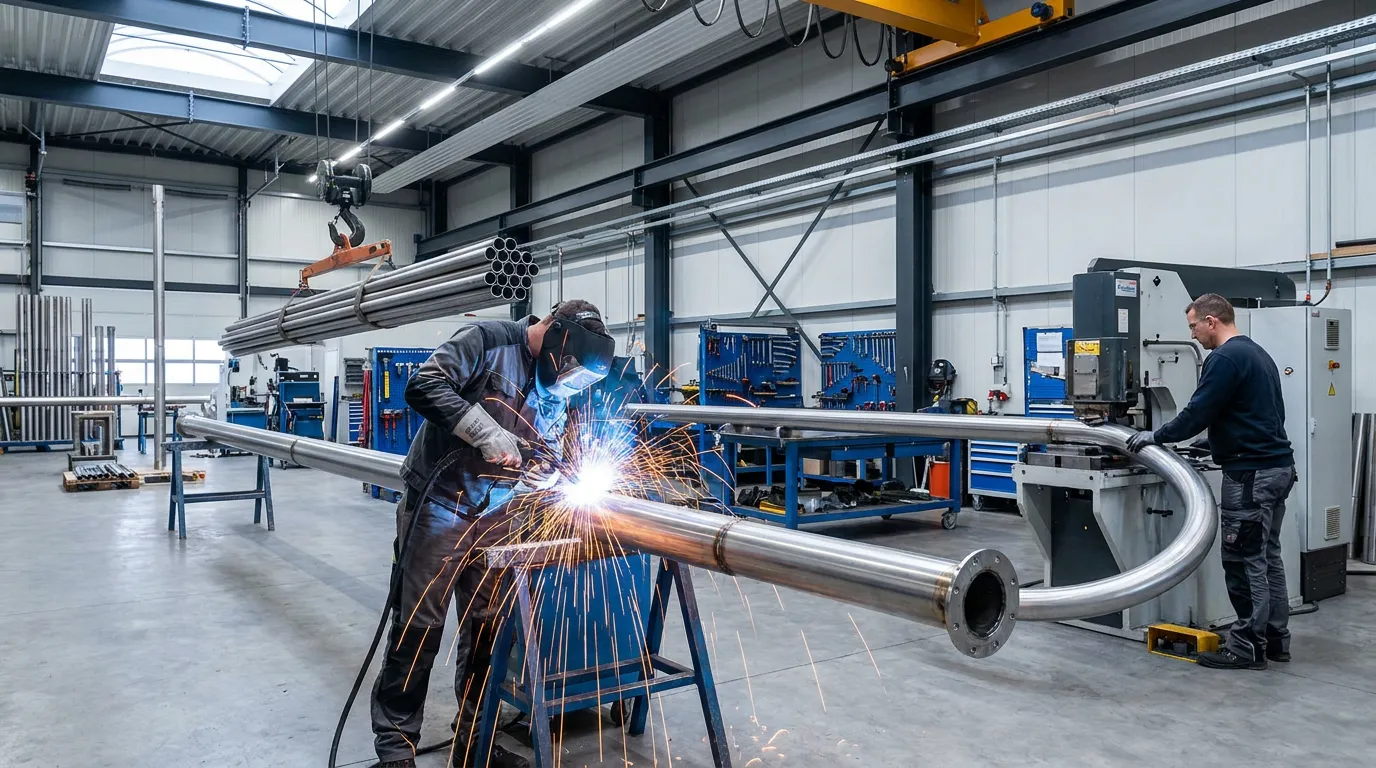

TIG Welding & Forming

Skilled welders join the pole shaft and davit arm using TIG welding for clean, structurally superior joints.

Surface Preparation

Grinding, polishing, and degreasing prepare the surface for electroplating or powder coating adhesion.

Surface Treatment & QC

Electroplating or powder coating is applied in controlled environments, followed by salt spray testing and visual inspection.

Applications

Trusted in Projects Worldwide

Our stainless steel tapered light poles are deployed across diverse environments, from bustling city centers to serene park landscapes.

Road & Street Lighting

Urban roads, highways, and municipal streets requiring uniform illumination and high structural integrity.

Parks & Gardens

Public parks, botanical gardens, residential communities, and recreational pathways.

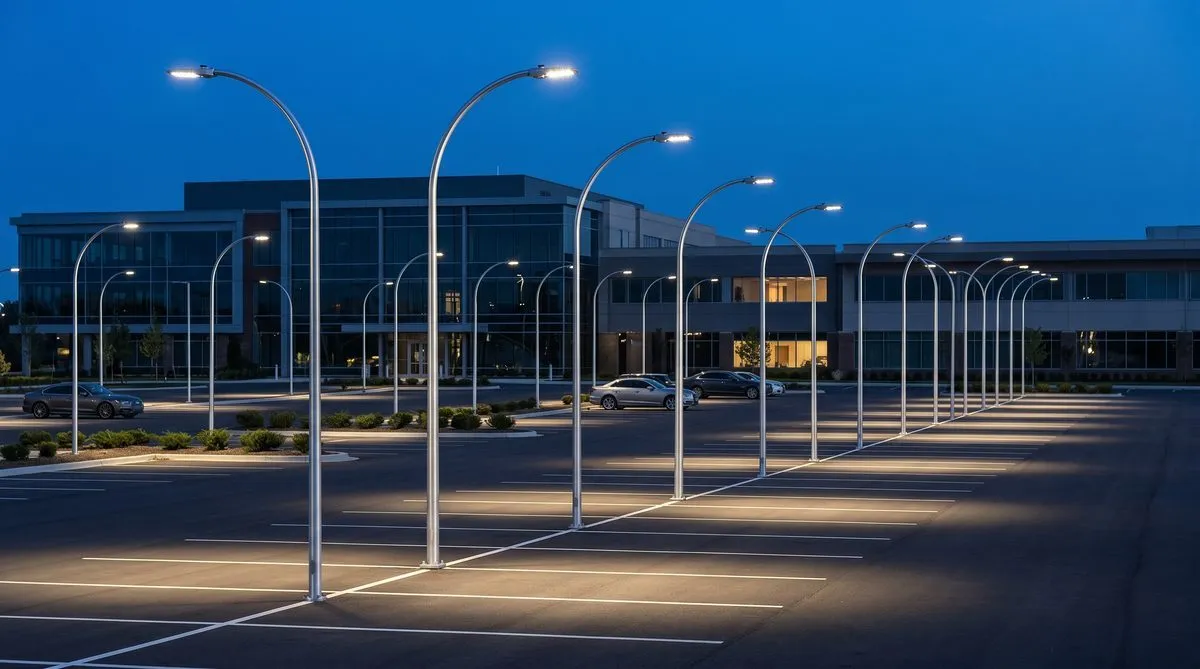

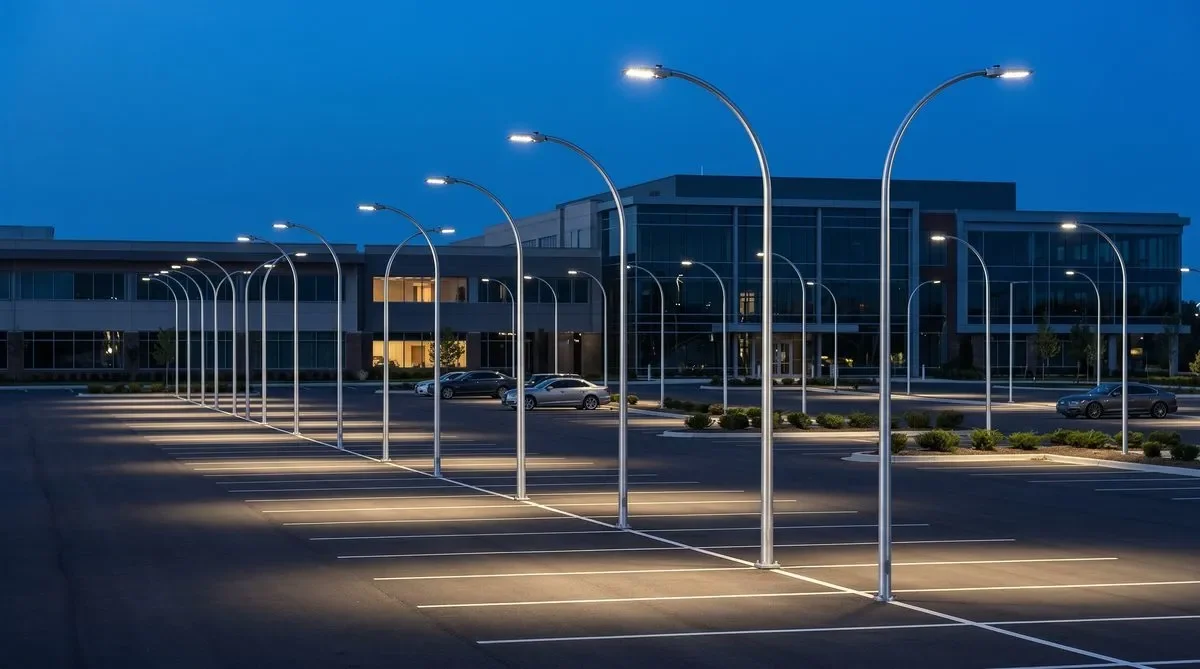

Commercial & Industrial

Parking lots, warehouses, shopping centers, and industrial zones requiring high-performance lighting.
