Stainless Steel Curved Light Pole
Elegant parabolic swan-neck stainless steel lamp post for street, road, and landscape lighting. Smooth continuous curve from vertical base to horizontal luminaire arm. Superior corrosion resistance and 25+ year service life.
Height Range
Year Lifespan
Wind Resistance
Elegant Parabolic Curve, Industrial Strength

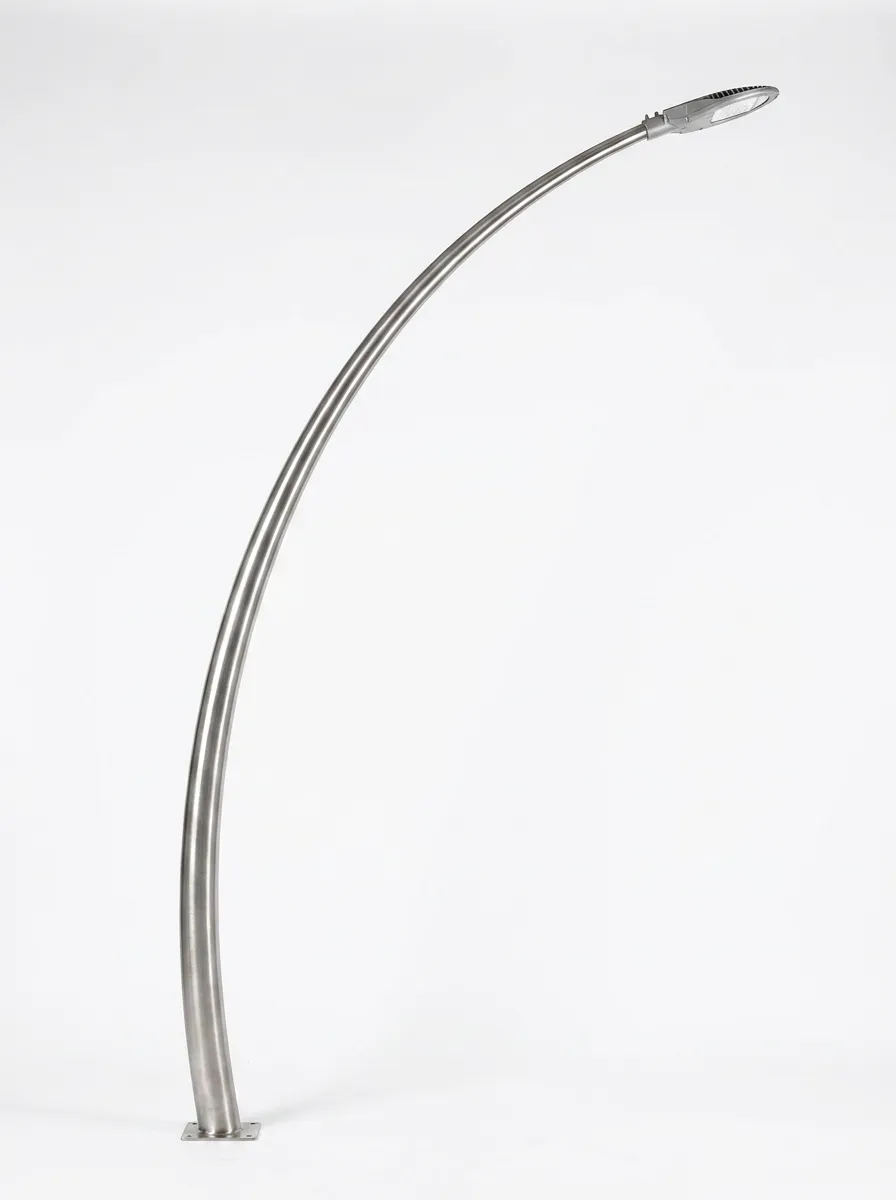

Our stainless steel single-arm curved light poles feature a smooth parabolic swan-neck profile. The pole starts as a vertical cylinder at the base, then transitions seamlessly into a graceful accelerating arc that sweeps upward and outward in a single plane. This continuous curve eliminates stress concentration points while creating an elegant, sculptural silhouette.
Each pole is precision-manufactured from 304/316 stainless steel tube using CNC hydraulic bending, ensuring the parabolic curvature is consistent across production runs. Seamless TIG welding and hand-polishing create a flawless finish with no visible joints — the pole appears as one continuous flowing form.
- 304 / 316 grade stainless steel construction
- Smooth parabolic swan-neck curve, seamless transition
- Tapered diameter from base to tip for optimal strength
- Modern LED luminaire flush-mounted at curved tip
- Internal cable routing — clean exterior, no conduits
- Flared conical base plate for anchor mounting
- 25+ year service life, maintenance-free
Product Specifications
Available in standard and custom configurations. All poles are engineered to meet international lighting standards.
- Material
- Overall Height
- Bottom Diameter
- Top Diameter
- Wall Thickness
- Base Plate
- Bolt Circle
- Surface Treatment
- Wind Resistance
- IP Rating
- Certifications
- Service Life
- SS304 / SS316 / SS316L Stainless Steel
- 6m / 8m / 10m / 12m (custom available)
- 140mm / 165mm / 180mm / 200mm
- 60mm / 76mm
- 2.5mm - 6.0mm
- 300×300mm / 350×350mm / 400×400mm
- 4 × M16 / 4 × M20 / 6 × M20
- Electroplating / Powder Coating
- Up to 160 km/h (Grade 12)
- IP65 (luminaire dependent)
- ISO 9001, CE, RoHS, IP Certificate
- 25+ years (stainless steel body)
Two Premium Surface Treatment Options
Choose from electroplating or powder coating to match your project’s aesthetic and environmental requirements. Both processes deliver exceptional durability and visual appeal.
Electroplating (Chrome Plating)
Our multi-stage electroplating process deposits a uniform chrome layer onto the stainless steel surface through electrolytic deposition. The result is a brilliant, mirror-like finish with exceptional hardness and corrosion resistance.
Process: Surface preparation → Nickel strike → Acid copper → Bright nickel → Chrome topcoat → Quality inspection
- Mirror-bright decorative chrome appearance
- Surface hardness up to 1000 HV (Vickers)
- Excellent corrosion and tarnish resistance
- UV-stable — will not fade or discolor
- Coating thickness: 8–25μm (customizable)
- Salt spray test: 500+ hours (ASTM B117)
Powder Coating (Spray Coating)
Electrostatic powder coating applies a thermosetting polyester or epoxy-polyester hybrid powder to the pole surface, then cures it at 180–200°C. This creates a tough, uniform coating that outperforms traditional liquid paint in every metric.
Process: Degreasing → Phosphate treatment → Rinse → Powder electrostatic spray → Curing at 200°C → Cooling → QC check
- Available in RAL color matching — any color
- Matte, satin, or textured finish options
- Coating thickness: 60–120μm (even coverage)
- Impact resistance: 50 kg·cm (direct/reverse)
- Adhesion: Grade 0 (cross-cut test ISO 2409)
- Salt spray test: 1000+ hours (ASTM B117)

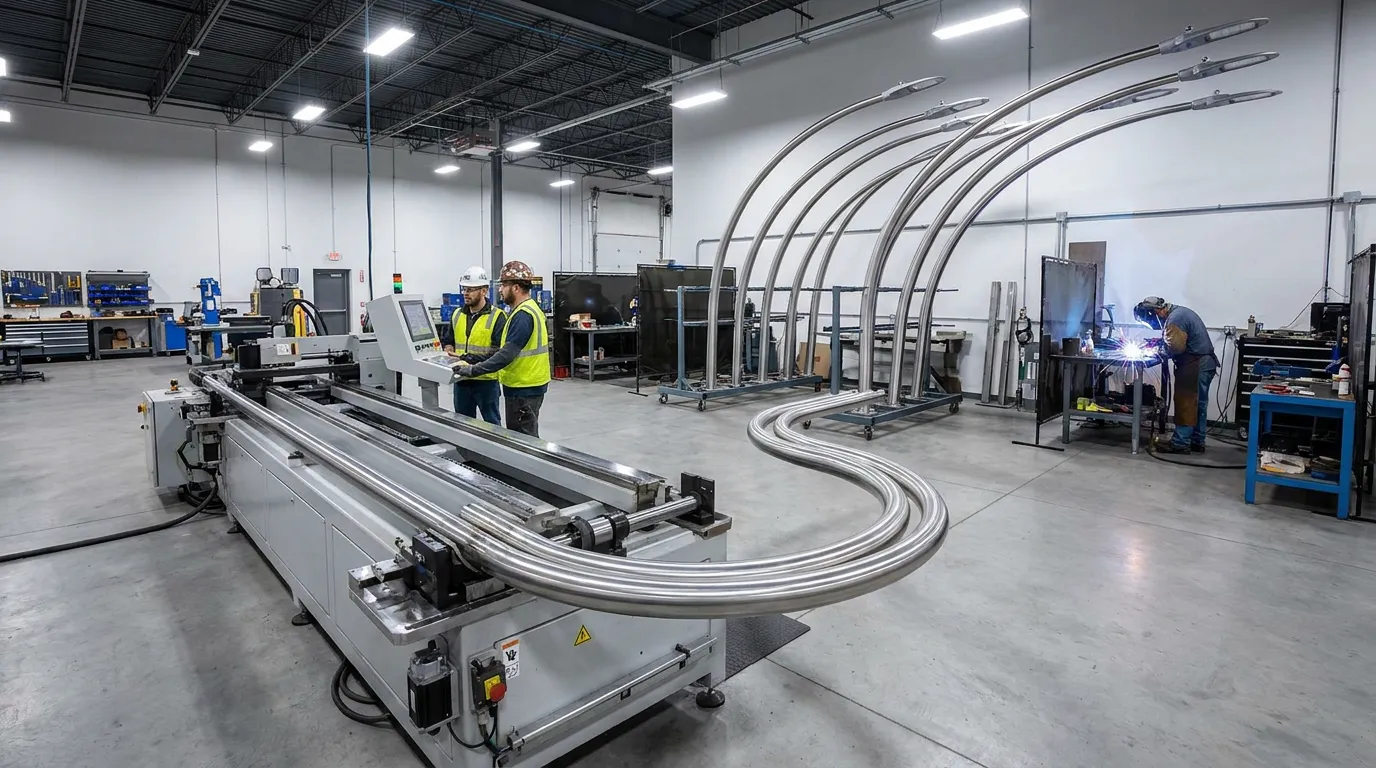

State-of-the-Art Production Facility
Our 50,000m² manufacturing facility houses advanced CNC tube bending machines, automated TIG welding stations, and precision polishing lines dedicated to stainless steel light pole production.
Every pole undergoes a rigorous 12-step quality control process — from raw material inspection through final packaging. Our skilled technicians combine decades of metalworking expertise with modern automation to deliver consistent, defect-free output at
m² Factory Area
Poles / Month
QC Checkpoints
Trusted in Projects Worldwide
From metropolitan boulevards to residential parks, our parabolic curved stainless steel light poles deliver reliable illumination with elegant architectural presence.

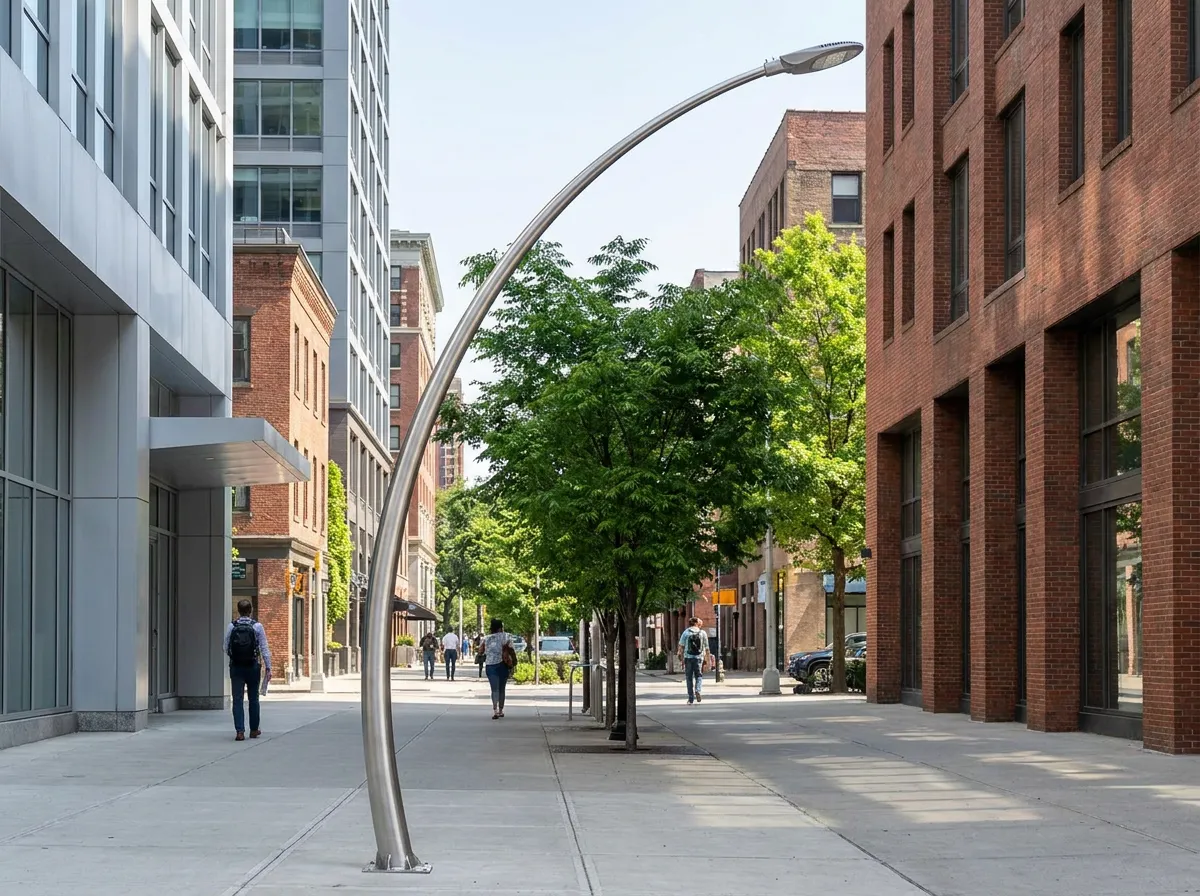

Urban Streets & Boulevards
Elegant parabolic silhouette enhances streetscape design. Continuous curve provides optimal luminaire positioning for arterial roads, commercial districts, and downtown areas. Engineered for coastal and high-humidity environments.
Parks, Gardens & Pathways
Sculptural swan neck design complements landscape architecture. Warm LED illumination creates safe, inviting environments for pedestrians and cyclists.
- Deep Design & Engineering Support
- CAD & Technical Drawings
- 3D Renderings & Visualization
- Prototyping & Sampling
- Flexible Manufacturing (OEM & ODM)
- Street Lighting & Roadway Poles
- Commercial & Residential Landscape Lighting
- High Mast Poles for areas, ports, and stadiums
- Decorative & Architectural Poles for urban beautification projects
- Solar Light Poles
