Stainless Steel Arc-Shaped Light Pole
Premium-grade stainless steel light poles with an elegant arc profile. Engineered for durability, finished with electroplating or powder coating for superior corrosion resistance. Custom heights and colors available for parks, waterfronts, roadways, and urban landscapes.
Engineered for Performance & Longevity
SS304, SS316 or SS316L can be selected according to the exposure environment. Dimensions, finish and inspection requirements are confirmed in the approved project documentation.
- Material
- Height Range
- Pole Diameter
- Wall Thickness
- Arc Radius
- Surface Treatment
- Base Plate
- Anchor Bolts
- Wind Load
- Luminaire Compatibility
- IP Rating
- Certification
- Warranty
- SS304 / SS316 / SS316L Stainless Steel
- 3m – 12m (Customizable)
- 60mm – 255mm (Base to Tip Tapered)
- 2.5mm – 6.0mm
- Custom per project requirements
- Electroplating / Powder Coating
- 300mm – 500mm square, 16-20mm thick
- M16 – M24, hot-dip galvanized
- Project-specific; confirmed from site wind criteria, pole geometry, luminaire weight and EPA
- Luminaire compatibility is confirmed from mounting, weight and electrical requirements
- Luminaire and electrical protection ratings depend on the selected components
- Applicable documents and certification scope are confirmed for the selected order
- Warranty scope and duration are confirmed in the quotation
Why Specify Our Arc Shaped Light Poles
Superior Corrosion Resistance
SS304, SS316, or project-specified stainless steel can provide strong atmospheric corrosion resistance. The correct grade, finish, fasteners, drainage details, inspection, and maintenance plan should match the exposure environment.
Elegant Arc Design
The sweeping arc profile creates a distinctive visual identity for any project. Seamless one-piece construction eliminates visible joints, delivering a sculptural quality that enhances urban aesthetics.
Custom Manufacturing
Full OEM/ODM customization is available for height, arc radius, color, base plate dimensions and luminaire mounting. Standard MOQ: 10 sets. Lead time: 15–25 working days after deposit and drawing approval.
High Wind Resistance
Wind-load design is reviewed for the project location, pole geometry, luminaire weight and effective projected area. The final configuration is confirmed in the approved project drawing.
Easy Installation
Pre-drilled base plates with standard anchor bolt patterns. Internal wiring channels simplify electrical connections. Complete installation drawings and guides provided with every shipment.
Documented Quality Control
Inspection and testing requirements are defined by the approved drawing, material specification and project quality plan. Applicable records can be confirmed with the order.
Two Premium Finishing Processes
Choose between electroplating and powder coating based on your project requirements. Both deliver exceptional durability and aesthetic quality.

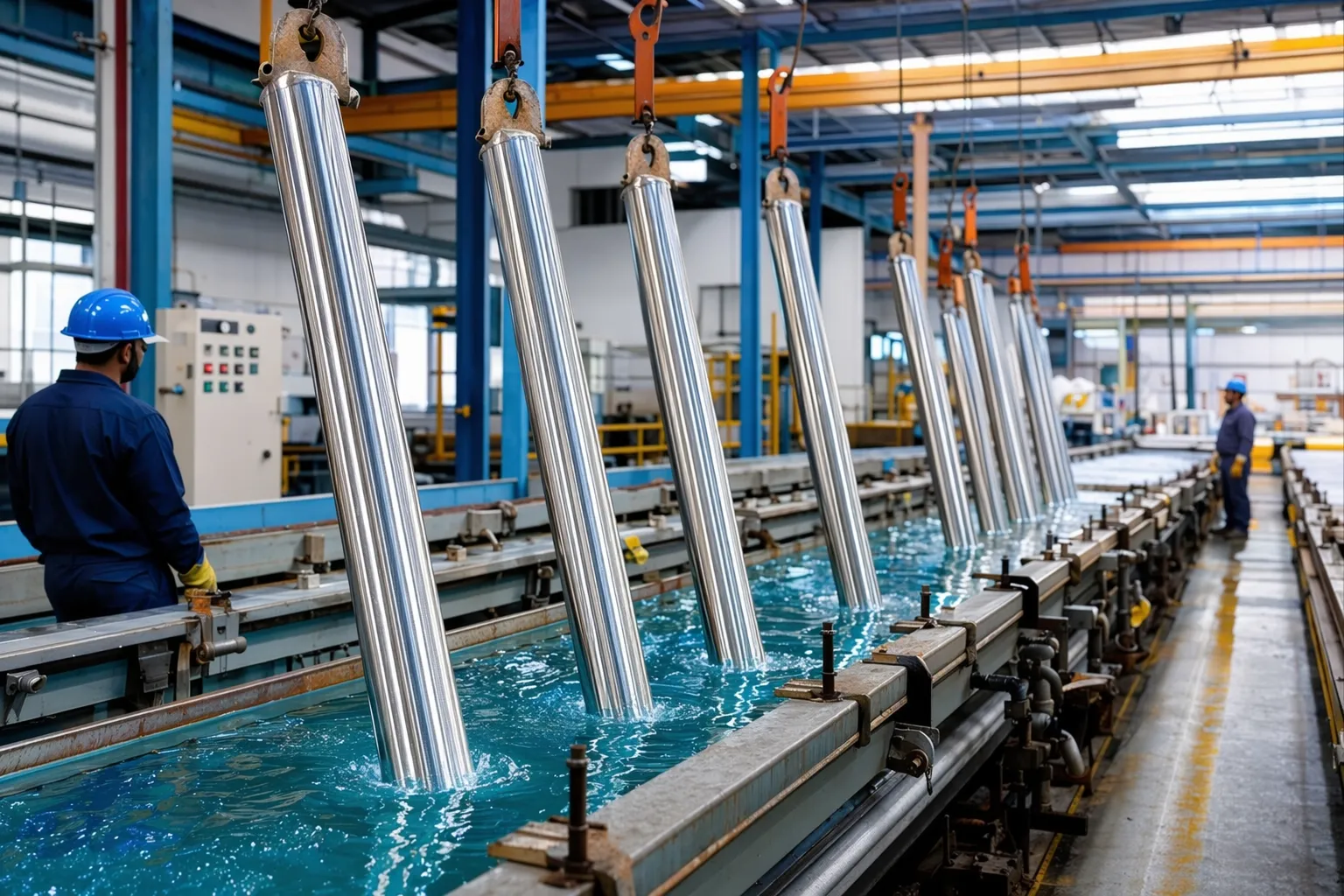

Electroplating Finish
Electroplating deposits a uniform metallic coating onto the stainless steel surface through an electrochemical process. This creates a dense, mirror-like finish with exceptional adhesion and long-term corrosion protection.
- Finish and color options are confirmed for the selected process
- Coating thickness is specified and verified for the selected finish
- Mirror-bright or satin finish options
- Salt-spray performance is confirmed from the approved specification and test report
- Grade and finish should be selected for the coastal or high-humidity environment
- Cleaning and maintenance depend on exposure and finish

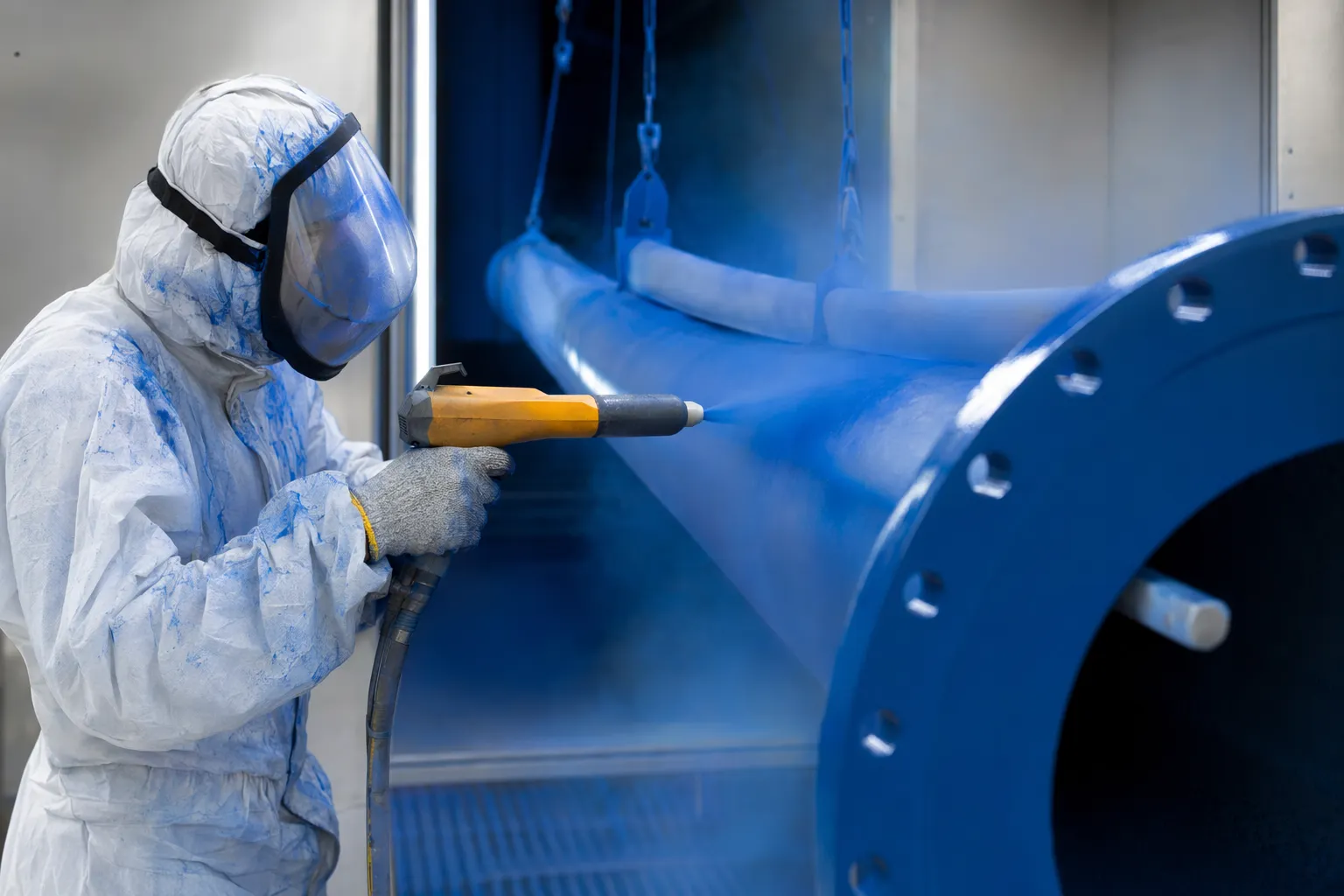

Powder Coating Finish
Powder coating applies a dry electrostatic paint that is cured under heat to form a tough, uniform film. This process delivers vibrant color options with superior chip, scratch, and UV resistance compared to liquid paint.
- RAL color options available subject to project selection
- Coating thickness: 80–120μm
- Textured, matte, gloss, or metallic effects
- Salt-spray performance is confirmed from the selected coating specification and test report
- UV- and weather-resistant powder systems are available for outdoor projects
- Powder selection and environmental documentation are confirmed for the order
From Raw Steel to Finished Product
Our state-of-the-art facility combines CNC precision with skilled craftsmanship at every stage of production.
Material Selection & Cutting
Premium SS304/SS316 stainless steel tubes are inspected for grade certification, then precision-cut to specified lengths using CNC saws.

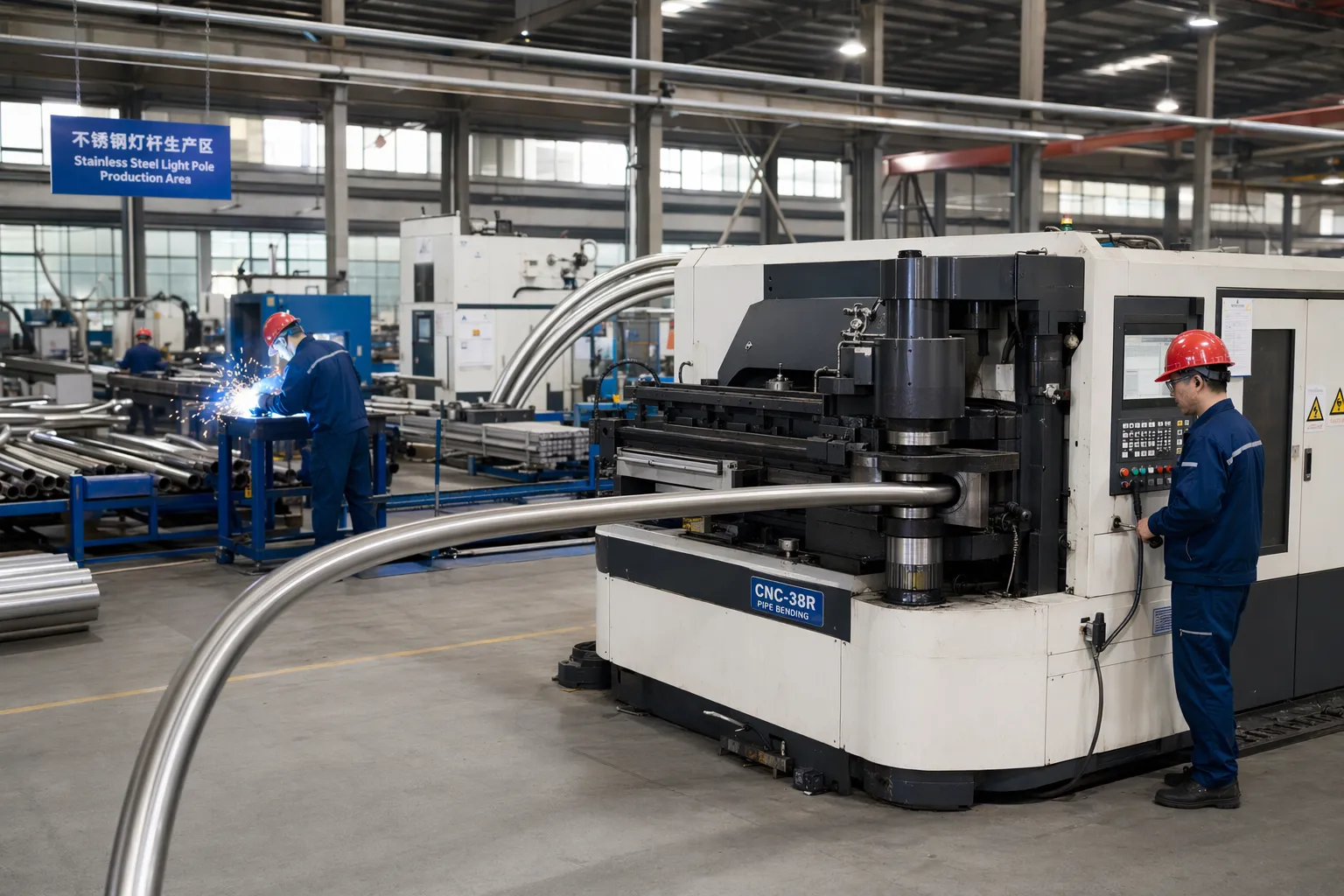

CNC Arc Bending
Hydraulic CNC bending equipment forms the pole to the approved arc geometry. Radius, dimensional tolerances and any joint details are confirmed in the production drawing.
Welding & Assembly
The base plate, luminaire arm and access components are welded and finished according to the approved drawing. Welding method and inspection requirements are defined in the project quality plan.
Surface Preparation
Poles undergo degreasing, pickling, and passivation to ensure optimal surface condition for electroplating or powder coating adhesion.
Surface Treatment
Electroplating or powder coating is applied in climate-controlled booths with automated systems ensuring uniform thickness and coverage.
Quality Inspection & Packing
Final inspection covers dimensional accuracy, coating adhesion (cross-cut test), salt spray samples, and visual check. Poles are wrapped in protective film and packed in steel-frame crates.
Designed for Diverse Environments
From serene parks to bustling waterfronts, our arc shaped light poles enhance safety and aesthetics in any outdoor setting.
City Streets & Avenues
Primary and secondary road lighting with 8–12m pole heights. Designed for 30m–50m luminaire spacing with optimal uniformity ratios per EN 13201 standards.
Parks, Gardens & Pathways
Aesthetic arc designs complement landscape architecture. 4–6m heights for pathway illumination with warm-tone LED fixtures for inviting ambiance.
Parking Lots & Commercial Areas
10–14m high-mast configurations for large open areas. High-lumen LED arrays provide uniform coverage with low light trespass and minimal sky glow for dark-sky compliance.
Residential & Suburban Roads
6–8m pole heights with decorative arc arms. Designed for low-glare distribution patterns that protect residential comfort while ensuring pedestrian safety.
