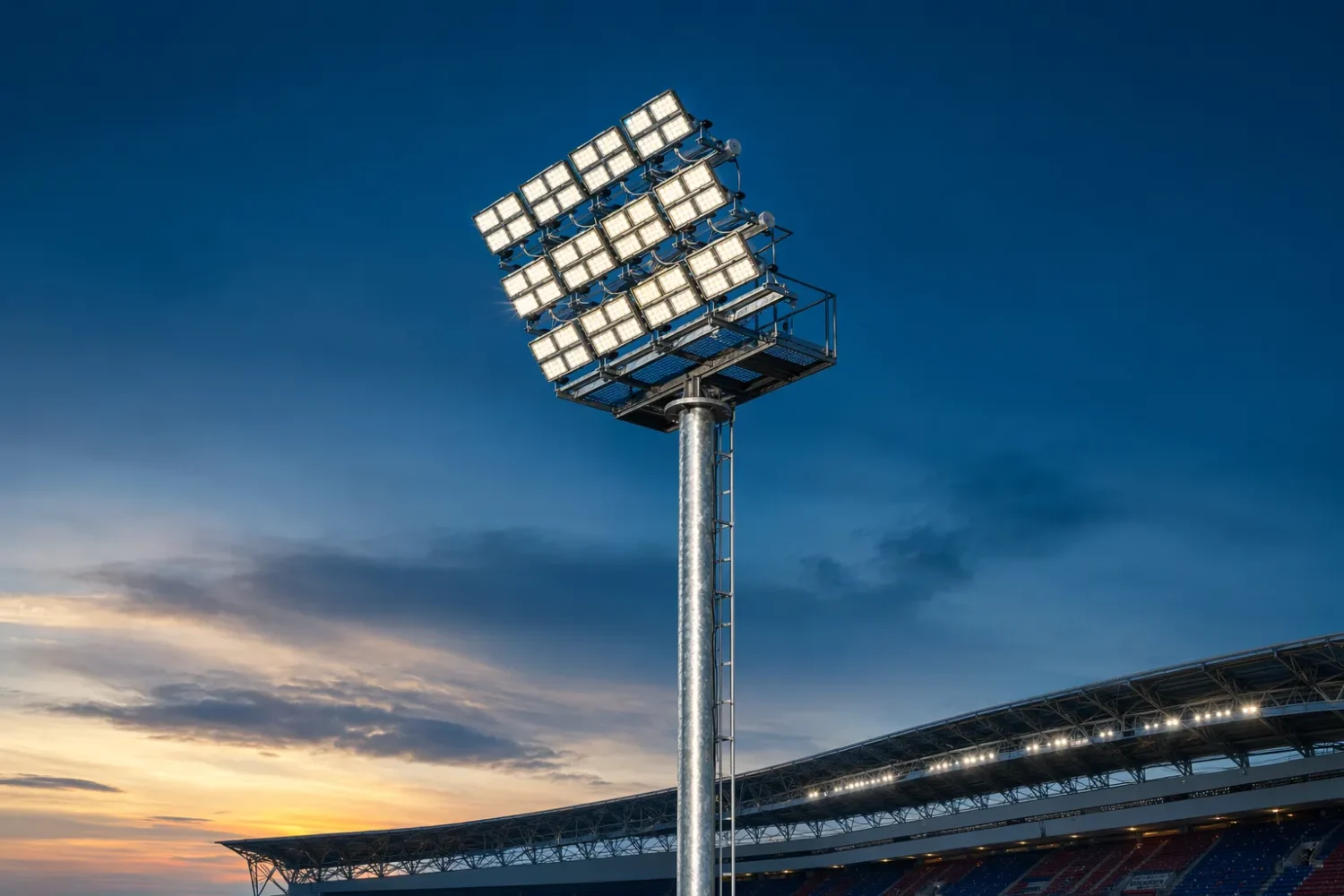

Flood Light Poles
High-performance galvanized steel poles engineered for stadiums, arenas, and large-scale commercial lighting. IP66 rated, wind-load certified, 25-year structural warranty.
Max Lumen Output
Ingress Protection
Wind Load Rating
Structural Warranty
Specifications
Available in three standard configurations. Custom heights and wattages available for projects exceeding 50 units.
- Pole Height
- Pole Material
- Shaft Profile
- Wall Thickness
- Base Plate
- Anchor Bolts
- LED Module
- Driver
- Input Voltage
- Power Factor
- THD
- Color Temperature
- CRI
- Beam Angles
- Surge Protection
- Operating Temp
- Certifications
- 12m / 18m / 25m / 30m / 35m / 40m
- Q345B High-Strength Steel, Hot-Dip Galvanized
- 12-sided tapered polygonal (OD 180–380mm)
- 6.0mm – 20.0mm (height dependent)
- 500×500mm – 800×800mm, 20–30mm thick
- M24 – M42, Grade 8.8, hot-dip galvanized
- Philips 3030 / Lumileds 5050 / CREE XB-H
- Inventronics / Mean Well HLG series
- AC 100–277V / 347–480V (50/60Hz)
- > 0.95 at full load
- < 10%
- 4000K / 5000K / 5700K
- > 70 (standard) / > 80 (optional)
- 15° / 30° / 60° / 90° / Asymmetric
- 10kV / 20kV (line-line & line-ground)
- -40°C to +55°C
- CE, RoHS, UL, DLC, C-Tick, BIS
Every part is engineered for durability, serviceability, and ease of installation in the field.
LED Flood Light Head
Modular die-cast aluminum housing with tempered glass lens. Tool-free tilt adjustment ±15°. Available in 15°–90° beam angles.
Multi-Arm Mounting Bracket
Hot-dip galvanized steel crossarm assembly. Supports 2–8 light heads. 360° rotation with locking collar for precise aiming.
Tapered Pole Shaft
12-sided polygonal profile, auto-submerged arc welded. Internal cable routing with inspection door. Powder-coated or galvanized finish.
Foundation Base Assembly
Heavy-gauge steel base plate with pre-drilled anchor bolt pattern. Includes leveling nuts, grounding lug, and cable entry conduit.
Engineered for Extreme Conditions
Every component is designed to deliver reliable performance in the harshest environments — from coastal stadiums to arid industrial zones.
Up to 150,000 lumens per fixture with 200 lm/W efficacy. Modular LED boards allow on-site wattage customization from 400W to 1200W without replacing the entire unit.
Pole shafts undergo hot-dip galvanization per ASTM A123 standards, providing 85μm zinc coating thickness for superior corrosion resistance in coastal and industrial environments.
Complete dust-tight protection and resistance to powerful water jets. IK10 impact rating withstands 20 joules of mechanical impact — built for vandalism-prone public areas.
Patented quick-release bracket allows 2–8 flood light heads per pole with 360° rotation and ±15° tilt. Tool-free adjustment for precise beam aiming during installation.
NEMA 7-pin receptacle and Zhongshan socket pre-installed. Compatible with 0-10V, DALI, and wireless controls for IoT-enabled lighting management systems.
Die-cast aluminum heat sink with optimized fin geometry maintains junction temperature below 85°C at 50°C ambient. Extends LED lifespan to L70 > 100,000 hours.
Proven in the Field
Trusted by contractors and distributors across 40+ countries for mission-critical outdoor lighting installations.
Uniform illumination for parking structures, logistics hubs, and industrial complexes. Asymmetric beam distribution eliminates dark spots while minimizing light trespass.
Why choose Us?
Yaolong is a professional flood light pole manufacturer offering steel and aluminum flood lighting poles for parking lots, sports courts, industrial sites, and commercial perimeters. Our flood lamp poles are available in round or square profiles with anchor-based or direct burial installation options. Commercial-grade poles are engineered to withstand wind speeds up to 130 mph while maintaining fixture positioning for consistent illumination. Custom heights from 10ft to 40ft, multiple finishes, and material options available.
Steel Flood Light Poles – Robust Support for Heavy-Duty Applications
Our steel flood light poles provide robust support for parking lots, sports courts, and high-fixture-count projects. Available in heights from 10 feet to 40 feet, steel poles resist fire, pests, and decay. Hot-dip galvanized coating supports long-term performance in standard environments.
Key features:
Material: Q235 Steel with hot-dip galvanized coating
Height Range: 10ft – 40ft (customizable)
Profiles: Round, square, or tapered round
Installation: Anchor-based or direct burial
Applications: parking lots, sports courts, industrial sites, service yards
Aluminum Flood Light Poles – Lightweight and Corrosion-Resistant
Our aluminum flood light poles are crafted from high-grade aluminum alloys, offering natural corrosion resistance and lightweight construction. Ideal for coastal areas and projects where weight is a concern.
Key features:
Material: Aluminum Alloy 6061/6063
Height Range: 10ft – 30ft (customizable)
Profiles: Round or square
Finish: Powder coating or anodized
Applications: coastal areas, commercial plazas, residential complexes
Square vs. Round Flood Light Poles – Choosing the Right Profile
Round poles channel wind around their surface, reducing drag and stress in high-wind locations. The smooth profile integrates with commercial landscapes and provides good load distribution for multiple fixtures. Round poles are well-suited for coastal areas with consistent wind exposure.
Square poles maximize rigidity and provide stable mounting for directional fixtures. Flat sides secure bracket hardware better than round poles, ensuring fixtures maintain aiming angles. Square geometry is best for multiple fixtures or heavy loads where stability is critical
Why Choose Flood Light Poles from Yaolong?
As a specialized flood light pole manufacturer, we understand that area lighting projects require reliable, durable support structures that perform consistently in demanding environments. Flood light poles are vertical mounting structures commonly installed in outdoor areas requiring elevated lighting fixtures across open lots, along drive lanes, or around facility boundaries.
Superior Structural Integrity
Commercial-grade flood light poles can withstand wind speeds up to 130 mph when properly specified, while maintaining fixture positioning for consistent illumination across large areas. Our poles are engineered to meet or exceed industry standards for structural reliability.
Versatile Mounting Options
We offer two main mounting configurations to suit different soil conditions and installation preferences:
Anchor-based installations – Use concrete footings with embedded anchor bolts to secure the pole at ground level. Provides strong stability in shifting soil and allows for future pole removal or replacement. Recommended for permanent installations in unstable soil or extreme weather.
Direct burial poles – Embedded directly into excavated holes without concrete foundations. This cost-effective method reduces labor and material costs while providing adequate stability for most uses. Works best in stable soil and projects where quick deployment is needed.
Material Options for Different Environments
Material choice affects pole performance, lifespan, and maintenance:
Steel poles – Provide robust support for parking lots, sports courts, and high-fixture-count projects. Galvanized coating supports long-term performance in standard environments.
Aluminum poles – Offer natural corrosion resistance and lightweight construction, ideal for coastal areas and weight-sensitive applications.
Profile Selection Based on Application
Pole shape affects wind resistance and aesthetics:
Round poles – Cylindrical design channels wind around the surface, reducing drag and stress in high-wind locations. Suitable for coastal areas with consistent wind exposure.
Square poles – Maximize rigidity and provide stable mounting for directional fixtures. Flat sides secure bracket hardware effectively, ensuring fixtures maintain aiming angles. Best for multiple fixtures or heavy loads.
Technical Specifications
| Parameter | Steel Pole | Aluminum Pole |
|---|---|---|
| Material | Q235 Steel | 6061/6063 Aluminum |
| Height Range | 10ft – 40ft (3m – 12m) | 10ft – 30ft (3m – 9m) |
| Profiles | Round, Square, Tapered Round | Round, Square |
| Wall Thickness | 3.0mm – 6.0mm | 2.5mm – 5.0mm |
| Finish | Hot-dip galvanized + powder coating | Powder coating / Anodized |
| Mounting | Anchor-based / Direct burial | Anchor-based / Direct burial |
| Wind Resistance | Up to 130 mph | Up to 130 mph |
| Warranty | 5-10 years | 5-10 years |
Height Selection Guide
Proper pole height selection affects coverage, spacing, and light uniformity. Beam angle and fixture wattage should match flood light pole height for effective distribution.
| Height Range | Suitable Projects | Recommended Fixture Type |
|---|---|---|
| 10ft – 20ft (3m – 6m) | Security lighting, small commercial parking | Wide beam angle (120°-140°) |
| 20ft – 30ft (6m – 9m) | Parking lots, recreational courts, construction sites | Adjustable brackets recommended |
| 30ft+ (9m+) | Stadiums, highways, athletic fields | Narrow beam (60°-90°), higher wattage (400W-1000W) |
Pro tip: Optimal spacing is typically 3-4 times the pole height for even illumination.
Applications
Our flood light poles are suitable for a wide range of applications:
Parking Lots: Commercial-grade poles providing consistent area lighting
Sports Courts and Recreational Facilities: Durable poles with adjustable fixture mounting
Industrial Sites: Heavy-duty steel poles for demanding environments
Service Yards and Drive Lanes: Reliable pole-mounted lighting infrastructure
Commercial Plazas: Aesthetic profiles complementing architectural design
Security Lighting: Lower-height poles (10ft-20ft) with wide beam fixtures
Frequently Asked Questions
Q: What is the difference between anchor-based and direct burial flood light poles?
A: Anchor-based poles use concrete footings with embedded bolts for permanent installation in unstable soil or high-wind areas. Direct burial poles are embedded directly into excavated holes, offering a cost-effective solution for stable soil and temporary projects.
Q: What material should I choose for my flood light poles?
A: Choose steel poles for robust support in standard environments with proper coating maintenance. Choose aluminum poles for coastal areas and weight-sensitive applications. Steel poles typically last up to 25 years, while aluminum offers natural corrosion resistance.
Q: How does pole shape affect performance?
A: Round poles reduce wind drag and are ideal for high-wind coastal areas. Square poles provide maximum rigidity and stable mounting for multiple directional fixtures.
Q: What height flood light pole do I need?
A: 10-20 feet for security lighting, 20-30 feet for parking lots and recreational areas, and 30+ feet for stadiums and highways. Match beam angle and wattage to pole height for effective distribution.
Q: How long can I expect flood light poles to last?
A: Steel poles with proper galvanized coating can last up to 25 years with regular maintenance. Aluminum poles offer natural corrosion resistance for extended service life.
