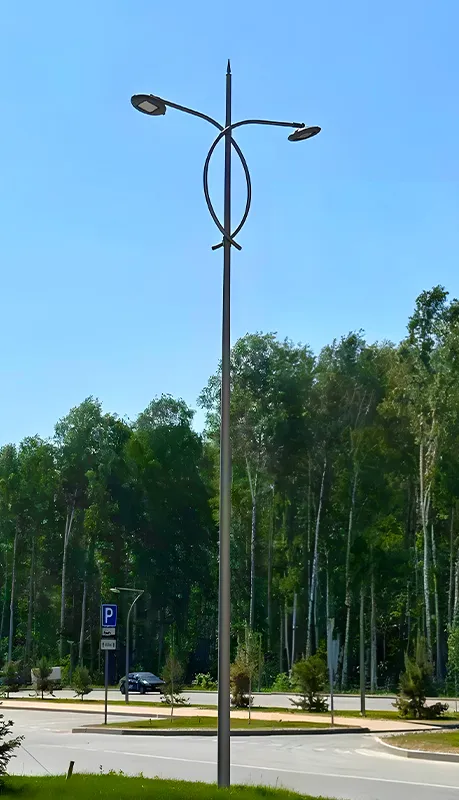

6063 T6 Aluminum Curved Arms Light Pole
Aluminum curved arms light poles feature a paired curved-arm profile for street, park and plaza lighting. Specify pole dimensions, arm geometry, mounting details and an anodized or powder-coated finish to match the approved project design.
Designed for Modern Urban & Landscape Lighting
Designed for streetscapes, roadways, parks and commercial plazas, this aluminum curved-arms light pole pairs a distinctive dual-arm silhouette with project-specific configuration. Confirm the alloy, pole dimensions, curved-arm geometry, mounting details and surface finish against the approved drawing before production.
Corrosion Resistant
Natural aluminum oxide layer plus optional anodized or powder coated finish ensures 25+ year service life in all climates.
Lightweight Structure
Weighs approximately 1/3 of equivalent steel poles, reducing foundation costs and simplifying installation.
Modular Design
Compatible with all standard LED luminaires. Arms, pole body, and base are modular for easy customization.
Wind Load Rated
Engineered to withstand wind speeds up to 160 km/h (Zone IV) per EN 40 and ASTM standards.
Full Product Specifications
Available in multiple heights and configurations. Custom specifications available for OEM/ODM orders.
| MODEL M | HEIGHT H | TOP OD D1 | BASE OD D2 | OD D3 | HEIGHT2 H2 | ARM L1 | ARM L2 | THICK T | DOOR HEIGHT H1 | DOOR SIZE (A×B) | BASE SIZE (L×W×T) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YLDG-K1 | 5000 | 76 | 152 | 60 | 3000 | 1500 | 800 | 4.0 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-K2 | 6000 | 76 | 152 | 60 | 4000 | 1500 | 800 | 4.0 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-K3 | 7000 | 76 | 166 | 60 | 5000 | 1500 | 800 | 4.0 | 500 | 80 × 250 | 298 × 298 × 12 |
| YLDG-K4 | 8000 | 76 | 180 | 60 | 6000 | 1500 | 800 | 4.0 | 500 | 100 × 300 | 305 × 305 × 19 |
| YLDG-K5 | 9000 | 76 | 180 | 60 | 7000 | 1500 | 800 | 4.0 | 500 | 100 × 300 | 305 × 305 × 19 |
| YLDG-K6 | 10000 | 76 | 200 | 60 | 8000 | 1500 | 800 | 4.0 | 500 | 100 × 300 | 305 × 305 × 19 |
Premium Finish Options for Every Environment
We offer two industry-leading surface treatment processes to ensure maximum corrosion resistance, UV stability, and aesthetic appeal for your aluminum curved arms light poles. Finish thickness: Powder coating: 80 µm standard; available range: 80–120 µm. Anodizing: 20 µm standard; available range: 15–25 µm.

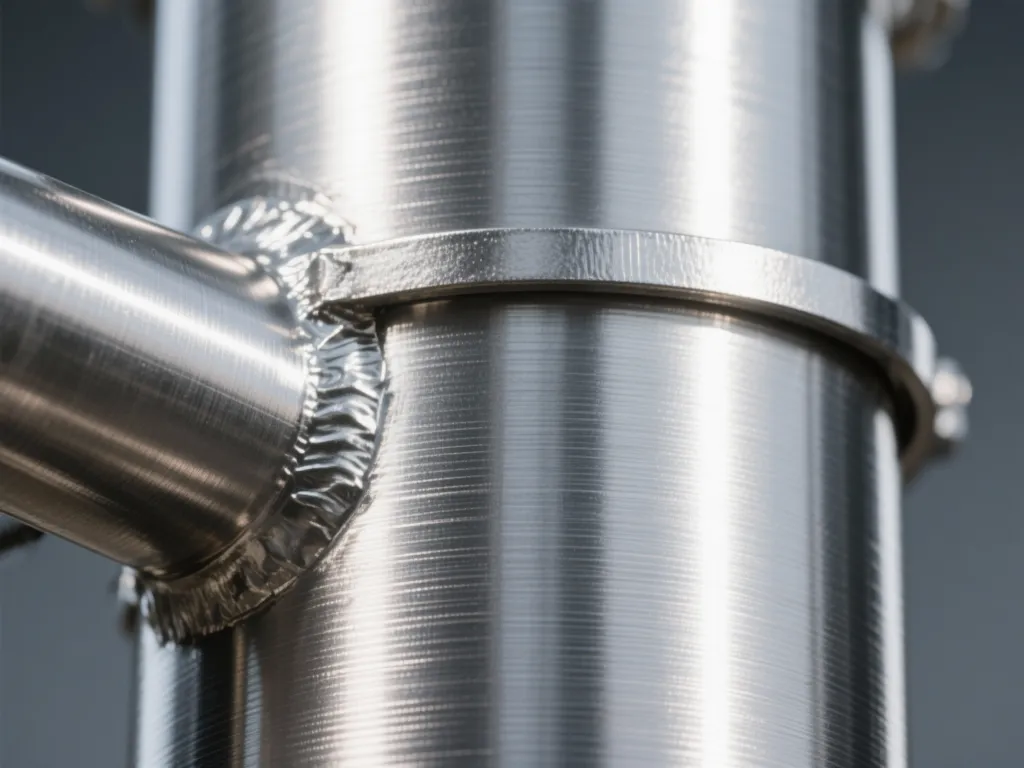

Anodizing Treatment
Electrochemical anodizing creates a hard, integral oxide layer (10–25μm) bonded to the aluminum substrate. This process enhances the natural metallic luster while providing exceptional corrosion and abrasion resistance. The anodized finish maintains its appearance without fading, peeling, or chipping over decades of outdoor exposure.
- Hard oxide layer integral to the metal — will never peel or flake
- Natural silver metallic appearance with satin finish
- Excellent UV resistance — color stability guaranteed 20+ years
- Enhanced surface hardness (300+ HV) for scratch resistance
- Environmentally friendly process — no VOC emissions
- Ideal for coastal and industrial environments

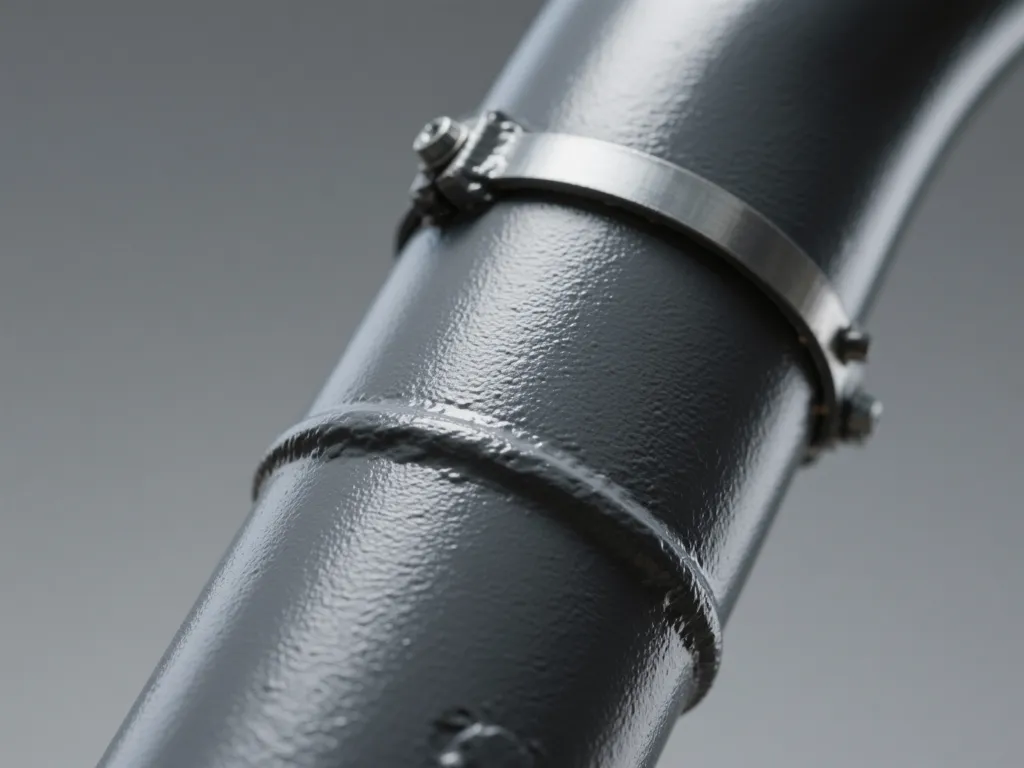

Powder Coating Treatment
Electrostatic powder spraying applies a uniform polyester or epoxy-polyester hybrid coating (80–120μm) that is thermally cured at 180–200°C. This creates a tough, decorative finish available in any RAL color. The powder coated surface provides superior protection against moisture, chemicals, and mechanical impact.
- Thick protective layer (80–120μm) for maximum durability
- Available in all RAL colors — match any urban design scheme
- Smooth matte, textured, or metallic finish options
- Superior resistance to moisture, salt spray, and chemicals
- Anti-graffiti coating option available for public areas
- Color warranty up to 15 years against fading and chalking

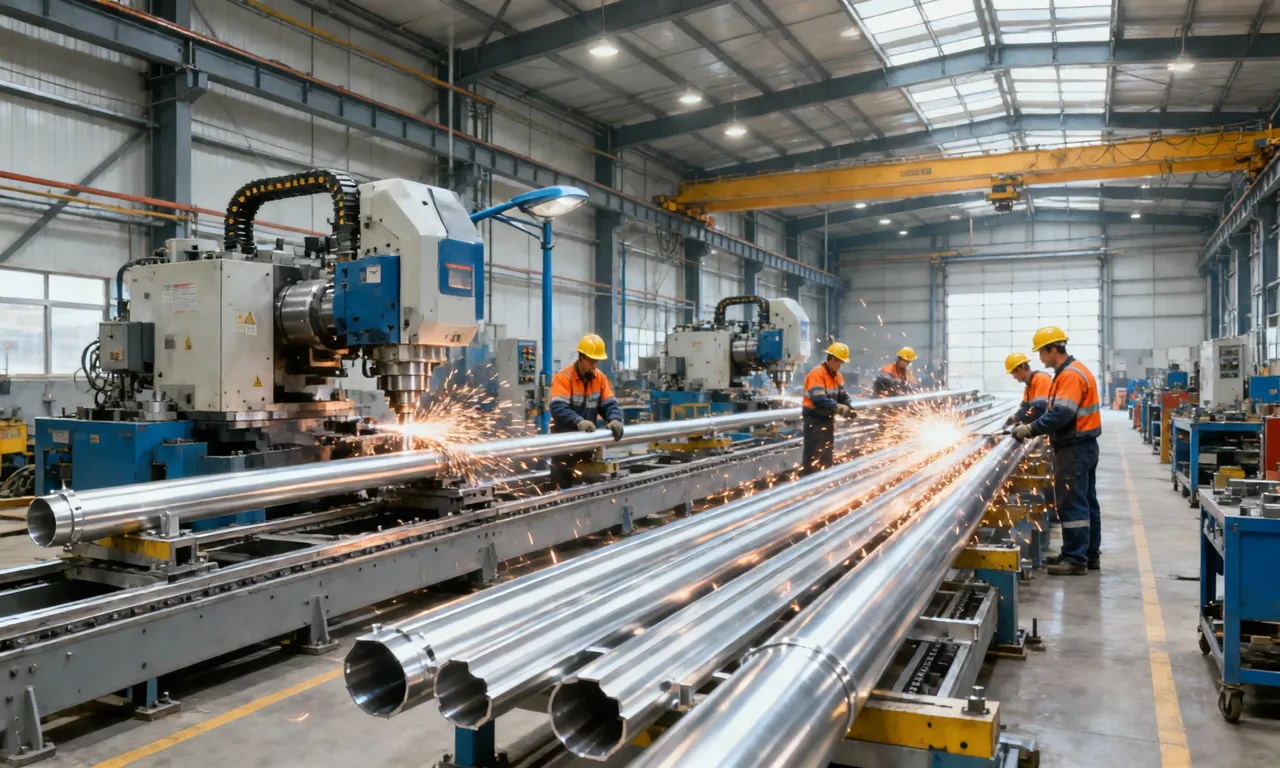

Precision Manufacturing & Quality Control
Our state-of-the-art production facility integrates CNC machining, automated welding, and rigorous quality inspection at every stage. Each light pole undergoes 12 quality checkpoints before shipment.
Raw Material
Premium 6063-T6 aluminum billets sourced from certified suppliers. Incoming material inspection and spectrographic analysis.
Extrusion & Forming
Hot extrusion process creates the tapered pole profile. CNC cutting, drilling, and curved arm forming with precision dies.
Welding & Assembly
TIG/MIG welding by certified operators. Full-penetration welds on all structural joints. Post-weld heat treatment for stress relief.
Surface & QC
Anodizing or powder coating per specification. 12-point quality inspection including dimensional, coating thickness, and salt spray testing.
Versatile Solutions for Every Landscape
From major urban boulevards to intimate garden pathways, our aluminum curved arms light poles deliver consistent, elegant illumination across diverse environments.
Street & Road Lighting
Primary and secondary roadways, urban boulevards, highways, and intersections. The double curved arm design provides balanced bilateral illumination for optimal driver visibility and safety.
Park & Garden Lighting
Public parks, residential gardens, scenic walkways, and recreational areas. The elegant curved silhouette complements landscape architecture while providing safe, ambient illumination.
- Deep Design & Engineering Support
- CAD & Technical Drawings
- 3D Renderings & Visualization
- Prototyping & Sampling
- Flexible Manufacturing (OEM & ODM)
- Street Lighting & Roadway Poles
- Commercial & Residential Landscape Lighting
- High Mast Poles for areas, ports, and stadiums
- Decorative & Architectural Poles for urban beautification projects
- Solar Light Poles
