Sourcing Aluminum Light Poles for Your U.S. Project?
American Standards. Global Quality.
Yaolong specializes in aluminum lighting poles
designed specifically for the demands of the U.S. market.
Discover Our Products
Yaolong is a specialized manufacturer dedicated to designing and producing high-strength aluminum light poles. We focus on providing durable, lightweight, and corrosion-resistant solutions that are fully customizable to meet specific project needs. Our products are widely used in street lighting, landscape illumination, and various outdoor applications, ensuring longevity and aesthetic appeal. Trust Yaolong for reliable quality and expert service in every pole we deliver.
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- 6061 6063 T6 Aluminum Alloy
- 3-15 Meters / 10-45 Feet
- 60MM / 2.36 Inches
- 255MM / 10 Inches
- 2.5-6.5MM / 0.1-0.255 Inches
- 180KM/H
Welcome To Contact Us For More Designs and Information
Pole Top
A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles recelving drilling patters for side-mount luminaire arm assemblies
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum. The completed assembly is heat-treated to a T6 temper. Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers. Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided

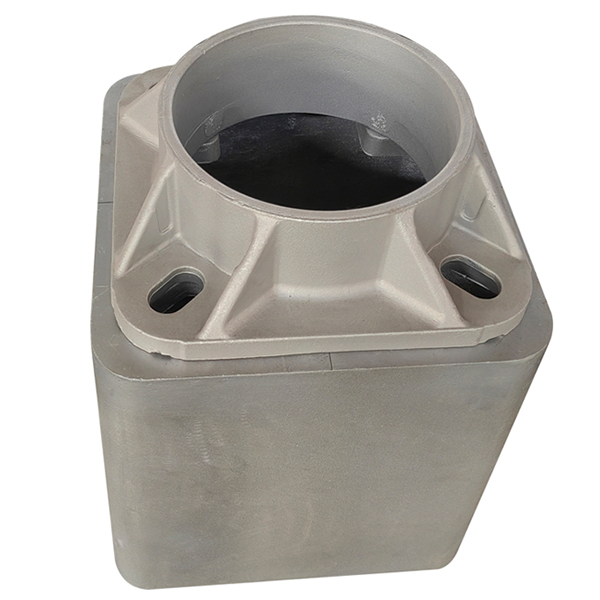

Breakaway T-Base
A Breakaway T-Base is a specially engineered base designed to safely separate (break away) upon vehicle impact. Its primary purpose is to minimize the risk of severe injury or death to occupants of a vehicle that collides with the pole.
It is not a sign of weak construction; it is a meticulously designed safety mechanism that is standard for poles installed within the “clear zone” of roadways—areas where vehicles are likely to leave the travel way.
| No. | Height | Bolt Cir. | Base Sq. | Top Bolt Cir. | Top Base Sq. | Bolt Qty. | Bolt Proj. | Bolt Size |
|---|---|---|---|---|---|---|---|---|
| TB1-17 | 17 | 15 | 15.375 | 10.5-13.5 | 13.125 | 4 | 3.5 | 1x36x4 |
| TB2-17 | 17 | 12 | 13.0625 | 10-12 | 12 | 4 | 3.5 | 1x36x4 |
| TB3-17 | 17 | 17.25 | 17.4375 | 13-15.12 | 15 | 4 | 3.5 | 1x48x4 |
| TB5-9 | 9 | 15 | 15.375 | 14.5-15 | 14.75 | 4 | 3.5 | 1x36x4 |
| TB6-9 | 9 | 12 | 12.75 | 10.5-12 | 12.25 | 4 | 3.5 | 1x36x4 |
Surface Treatments
Anodic oxidation
The anodic oxidation of aluminum light poles is a critical industrial process that dramatically enhances their durability, corrosion resistance, and aesthetic appeal. It’s the reason why aluminum poles can last for decades in harsh outdoor environments.
Powder Coating
Powder coating is a dry finishing process where a finely ground mixture of pigment and resin (the powder) is electrostatically sprayed onto a surface. The part is then heated in an oven, which causes the powder to melt, flow, and chemically cross-link to form a durable, solid plastic coating.
A durable, clear anodized finish in Natural Aluminum is provided as standard. A wide range of premium color options is also available to meet your specific aesthetic or project matching requirements. Please contact our sales team to discuss custom finishes and for assistance with fixture matching. Please note that custom colors are subject to an additional surcharge.
Yaolong Profile
The Largest Aluminum Light Pole Manufacturer In China
Guangdong Yaolong Metal Technology Co.,Ltd. located in the most famous town of stainless steel- Chencun, Foshan, is a modern enterprise which integrated R & D, design,production and distribution, specializing in the production of stainless steel and aluminium light pole, tapered flag pole and other series of stainless steel products.
Our stainless steel and aluminum light pole can be mainly divided into: tapered light pole, courtyard light pole, garden light pole, traffic light pole, which are popular among Western countries. The stainless steel and aluminum light poles have been widely used in decorating the landmark architectures, squares, and housing estates. Our aluminum alloy light pole, produced by advanced CNC spinning equipment from abroad, is of good quality and appearance which do not have any weld joints. Aluminum light poles are mainly used on the bridge and at the seaside, requiring high standard of corrosive prevention and lighter material. The company pursuits to be the leader in stainless steel and aluminum light pole. We concentrate on design and craft which help us to sustain the leading position in this field.
We have import and export license. Our products not only widely in domestic sales but also in export markets, such as Middle East, Europe, USA, and Southeast Asia.
Our company develops a team of professional designers and engineers, brought in advanced high-tech equipments from Italy, Japan and France. Besides, our products complied with ISO 9001:2000, the ISO14001and GB/T280012001 Occupational Health and Safety Management System. Yaolong brand is casted by our advanced R&D technology and abundant production capacity.
Why Choose Aluminum Light Poles?
Superior Corrosion Resistance
Market Leadership in the EU
Lower Lifetime Cost vs. Steel
100% Recyclable & Sustainable
Marine-Grade Strength
Easy Installation = Cost Savings
Aesthetic Flexibility
Passive Safety
50+ Year Lifespan
