High-grade aluminum Light Poles Manufacturer
Yaolong specializes in aluminum lighting poles
designed specifically for the demands of the Russian market.
Aluminum Light Pole
An aluminum alloy light pole is a modern and highly efficient lighting support structure widely used in urban streets, parks, and public areas. Crafted from high-strength aluminum alloy, it offers an exceptional blend of durability and lightweight properties, making it significantly easier to transport and install compared to traditional materials like steel. One of its standout features is its superior corrosion resistance. The natural formation of a protective oxide layer enables it to withstand harsh environmental conditions, including rain, humidity, and coastal salty air, ensuring long-term performance with minimal maintenance.
In addition to its functional advantages, the aluminum light pole boasts a sleek and contemporary appearance. It can be easily customized through processes such as anodizing or powder coating, allowing for a variety of colors and finishes to match different architectural styles. Its eco-friendly nature is another key benefit, as aluminum is fully recyclable, supporting sustainable development goals. Combining practicality, aesthetic flexibility, and environmental responsibility, the aluminum alloy light pole has become a preferred choice in modern outdoor lighting solutions.
Aluminum Tapered Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Z
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|
| YLDG-Z1 | 3000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z2 | 4000 | 76 | 127 | 4.0 | 500 | 80×250 | 224x224x10 |
| YLDG-Z3 | 5000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z4 | 6000 | 76 | 152 | 4.0 | 500 | 80×250 | 260x260x12 |
| YLDG-Z5 | 7000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z6 | 8000 | 76 | 166 | 4.0 | 500 | 80×250 | 285x285x12 |
| YLDG-Z7 | 9000 | 76 | 180 | 4.0 | 500 | 100×300 | 305x305x19 |
| YLDG-Z8 | 10000 | 76 | 200 | 4.0 | 500 | 100×300 | 305x305x19 |
Aluminum Davit Arm Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-D
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGHTH | TOP OD | BASE OD | THICK | ARM L1 | DOOR HEIGHTH | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-D1 | 5000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 260x260x12 |
| YLDG-D2 | 6000 | 76 | 152 | 4.0 | 1500 | 500 | 80×250 | 260x260x12 |
| YLDG-D3 | 7000 | 76 | 166 | 4.0 | 1500 | 500 | 80×250 | 285x285x12 |
| YLDG-D4 | 8000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D5 | 9000 | 76 | 180 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
| YLDG-D6 | 10000 | 76 | 200 | 4.0 | 1500 | 500 | 100×300 | 305x305x19 |
Aluminum Double Arm Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-S
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | ARM L1 | ARM L2 | DOOR HEIGHT | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-S1 | 5000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 260x260x12 |
| YLDG-S2 | 6000 | 76 | 152 | 4.0 | 1500 | 1500 | 500 | 260x260x12 |
| YLDG-S3 | 7000 | 76 | 166 | 4.0 | 1500 | 1500 | 500 | 285x285x19 |
| YLDG-S4 | 8000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
| YLDG-S5 | 9000 | 76 | 180 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
| YLDG-S6 | 10000 | 76 | 200 | 4.0 | 1500 | 1500 | 500 | 305x305x19 |
Aluminum Great Curved Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-H
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGHT | TOP OD | BASE OD | THICK | ARM | HEIGHT | DOOR HEIGHT | BASE SIZE |
|---|---|---|---|---|---|---|---|---|
| YLDG-H1 | 5000 | 76 | 127 | 4.0 | 1500 | 1000 | 500 | 224 x 224 x 10 |
| YLDG-H2 | 6000 | 76 | 152 | 4.0 | 1500 | 1000 | 500 | 260 x 260 x 12 |
| YLDG-H3 | 7000 | 76 | 166 | 4.0 | 1800 | 1200 | 500 | 285 x 285 x19 |
| YLDG-H4 | 8000 | 76 | 180 | 4.0 | 1800 | 1200 | 500 | 305 x 305 x19 |
| YLDG-H5 | 9000 | 76 | 180 | 4.0 | 2000 | 1500 | 500 | 305 x 305 x 19 |
| YLDG-H6 | 10000 | 76 | 200 | 4.0 | 2000 | 1500 | 500 | 305 x 305 x 19 |
Aluminum Y Shaped Light Pole
- Model:
- Materials:
- Height:
- Min. Diameter:
- Max. Diameter:
- Wall Thickness:
- Wind Resistant:
- YLDG-Y
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 60 mm
- 255 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGH | LEFT ARM HEIGHT | LEFT ARM WIDTH | RIGHT ARM HEIGHT | RIGHT ARM WIDTH |
|---|---|---|---|---|---|
| YLDG-Y1 | 4000 | 5500 | 3500 | 8000 | 2200 |
| YLDG-Y2 | 6000 | 7500 | 3500 | 10000 | 2200 |
| YLDG-Y3 | 8000 | 9500 | 3500 | 12000 | 2200 |
| YLDG-Y4 | 10000 | 11500 | 3500 | 14000 | 2200 |
Aluminum Square Light Pole
- Model:
- Materials:
- Height:
- Size：
- Wall Thickness:
- Wind Resistant:
- YLDG-SP
- 6061 6063 T6 Aluminum Alloy
- 3-12 Meters
- 76 / 101 / 127 / 150 mm
- 2.5-6.0 mm
- 180KM/H
| MODEL | HEIGHT(mm) | SIZE(mm) | THICK | DOOR HEIGHT | BASE SIZE |
|---|---|---|---|---|---|
| YLDG-SP1 | 3000 | 76 / 101 / 127 / 150 | 4.0 | 500 | 298x298x12 |
| YLDG-SP2 | 4000 | 76 / 101 / 127 / 150 | 4.0 | 500 | 298x298x12 |
| YLDG-SP3 | 5000 | 76 / 101 / 127 / 150 | 4.0 | 500 | 298x298x12 |
| YLDG-SP4 | 6000 | 76 / 101 / 127 / 150 | 4.0 | 500 | 298x298x12 |
| YLDG-SP5 | 7000 | 76 / 101 / 127 / 150 | 4.0 | 500 | 298x298x12 |
| YLDG-SP6 | 8000 | 76 / 101 / 127 / 150 | 5.0 | 500 | 305x305x19 |
| YLDG-SP7 | 9000 | 76 / 101 / 127 / 150 | 5.0 | 500 | 305x305x19 |
| YLDG-SP8 | 10000 | 76 / 101 / 127 / 150 | 5.0 | 500 | 305x305x19 |
High Mas & Flood Light Pole
- Model
- Materials
- Height
- Wall Thickness
- Diameter
- Wind Resistant
- Applications
- YLDG-M
- 201/304/316 Stainless Steel
Hot-dip Galvanized Steel Q235/Q355 - 15-50 Meters
- 5-30mm
- 220-1080mm
- 180 KM/H
- Highways and interchanges, Airports, Shipping ports, Railway yards, Sports stadiums, Large parking lots, Industrial complexes
| MODEL | HEIGHT | TOP OD | BASE OD | LAMP SIZE | DOOR HEIGHT | DOOR SIZE | BASE SIZE |
|---|---|---|---|---|---|---|---|
| YLDG-M1 | 18000 | 220 | 436 | 3600 | 500 | 120×300 | 800×30 |
| YLDG-M2 | 20000 | 220 | 460 | 3600 | 500 | 120×300 | 800×30 |
| YLDG-M3 | 22000 | 220 | 484 | 3600 | 500 | 120×300 | 800×30 |
| YLDG-M4 | 25000 | 220 | 520 | 4000 | 500 | 120×300 | 800×30 |
| YLDG-M5 | 30000 | 220 | 580 | 4000 | 500 | 120×300 | 800×30 |
Details & Accessories
Handhole
A covered handhole with hardware and grounding provision are provided
Anchor Base
The anchor base is cast from A356 alloy aluminum.
The completed assembly is heat-treated to a T6 temper.
Aluminum nut covers are included with anchor base unless otherwise specified
| MODEL | BASE OD | BASE SIZE | THICK | HOLE SPACING |
|---|---|---|---|---|
| YLDG-PB1 | 152 | 260 x 260 | 12 | 210x210 |
| YLDG-PB2 | 166 | 285 x 285 | 19 | 210x210 |
| YLDG-PB3 | 180 | 305 x 305 | 19 | 210x210 |
| YLDG-PB4 | 200 | 305 x 305 | 19 | 210x210 |
(Suitable for below 6 meters)
Anchor Bolts
Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers.
Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Base Cover
Optional round or square base cover available as special orderprovided
Surface Treatments
Anodizing
The anodic oxidation of aluminum light poles is a critical industrial process that dramatically enhances their durability, corrosion resistance, and aesthetic appeal. It’s the reason why aluminum poles can last for decades in harsh outdoor environments.
Powder Coating
Powder coating is a dry finishing process where a finely ground mixture of pigment and resin (the powder) is electrostatically sprayed onto a surface. The part is then heated in an oven, which causes the powder to melt, flow, and chemically cross-link to form a durable, solid plastic coating.
A durable, clear anodized finish in Natural Aluminum is provided as standard. A wide range of premium color options is also available to meet your specific aesthetic or project matching requirements. Please contact our sales team to discuss custom finishes and for assistance with fixture matching. Please note that custom colors are subject to an additional surcharge.
Do you want to customize your own light poles?

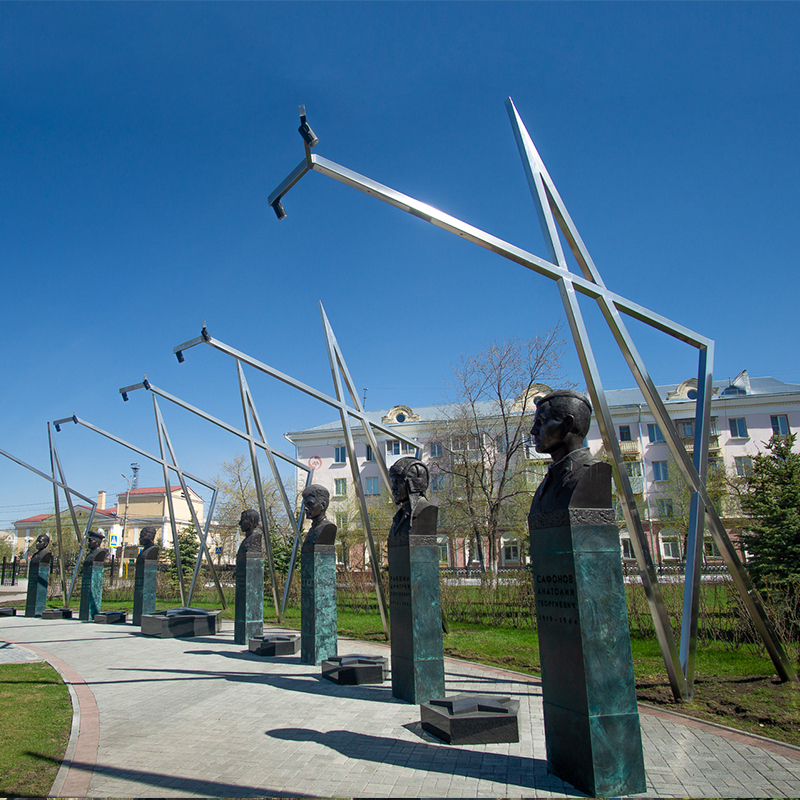

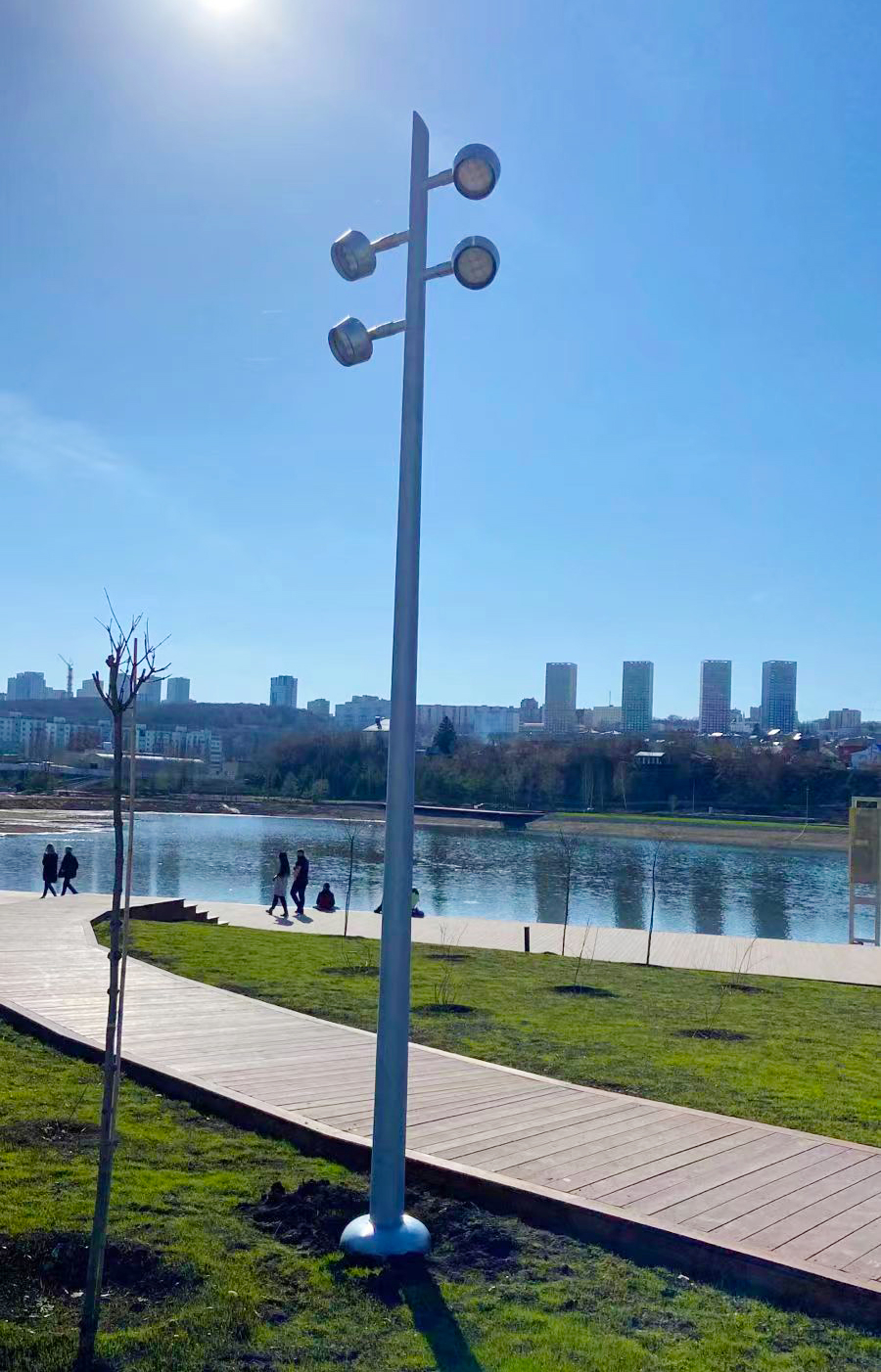

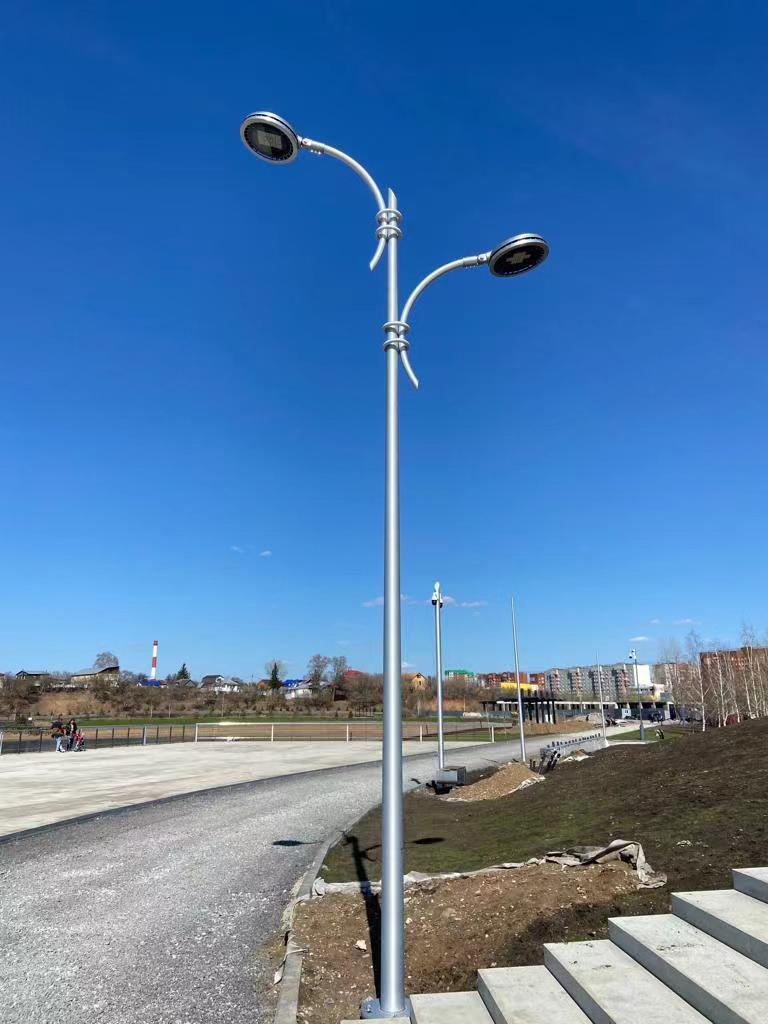

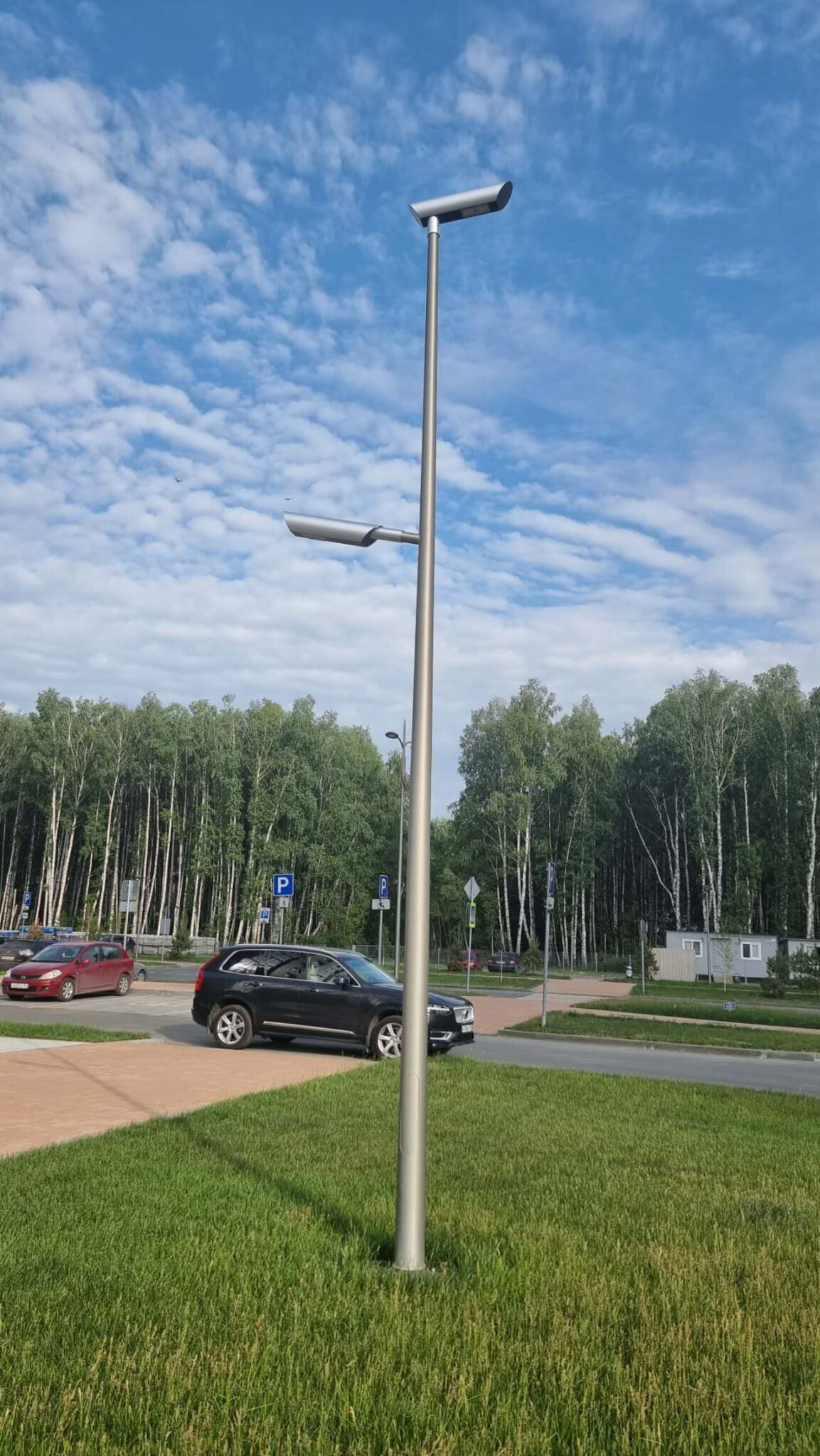

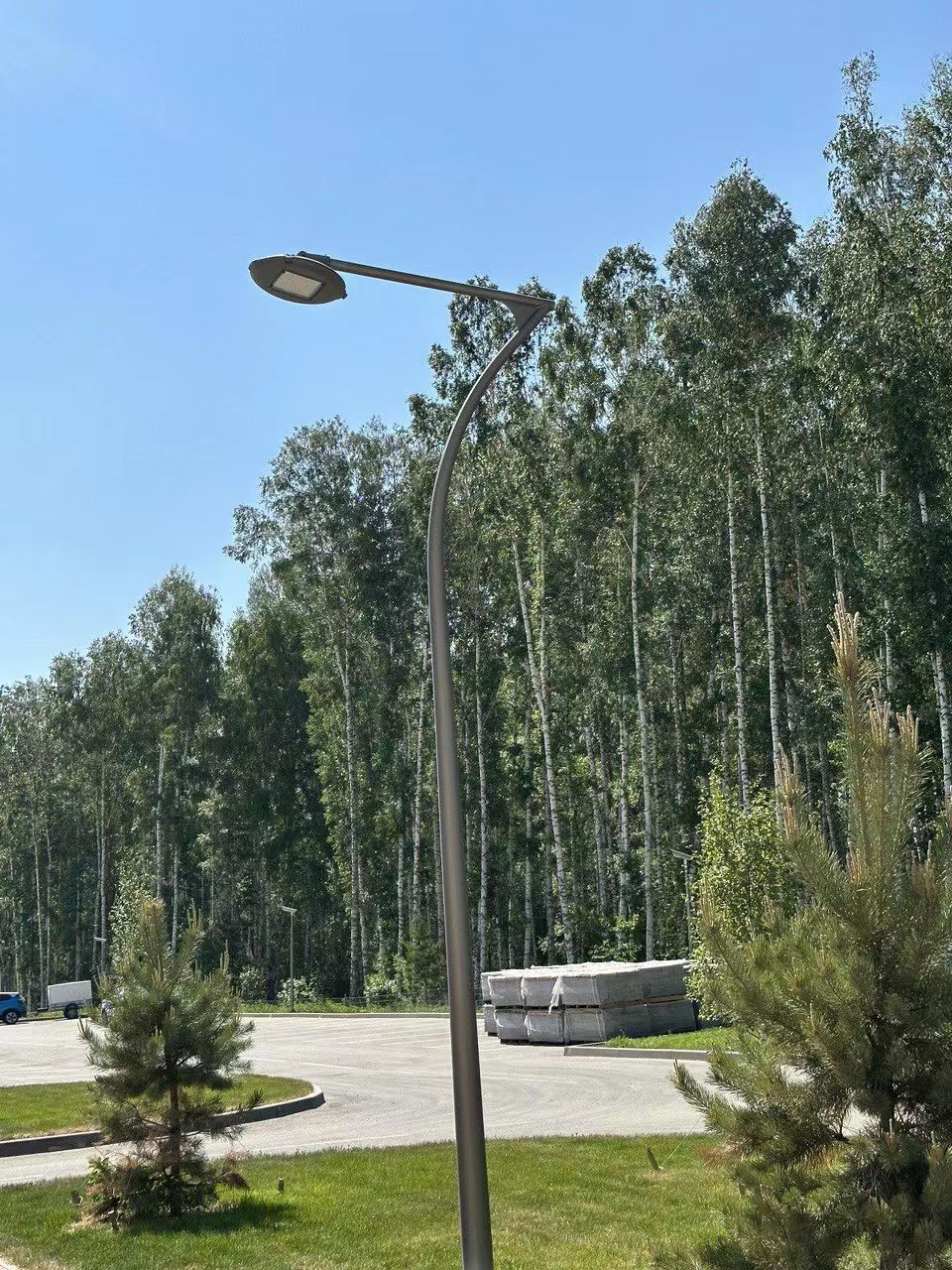

The projects we participated in Russia
Yaolong Profile
Nantong Yaolong Metal Manufacturing Co.,Ltd. located in the most famous town of stainless steel- Chencun, Foshan, is a modern enterprise which integrated R & D, design,production and distribution, specializing in the production of stainless steel and aluminium light pole, tapered flag pole and other series of stainless steel products.
Our stainless steel and aluminum light pole can be mainly divided into: tapered light pole, courtyard light pole, garden light pole, traffic light pole, which are popular among Western countries. The stainless steel and aluminum light poles have been widely used in decorating the landmark architectures, squares, and housing estates.
Our aluminum alloy light pole, produced by advanced CNC spinning equipment from abroad, is of good quality and appearance which do not have any weld joints. Aluminum light poles are mainly used on the bridge and at the seaside, requiring high standard of corrosive prevention and lighter material. The company pursuits to be the leader in stainless steel and aluminum light pole. We concentrate on design and craft which help us to sustain the leading position in this field.
We have import and export license. Our products not only widely in domestic sales but also in export markets, such as Middle East, Europe, USA, and Southeast Asia. Our company develops a team of professional designers and engineers, brought in advanced high-tech equipments from Italy, Japan and France. Besides, our products complied with ISO 9001:2000, the ISO14001 and GB/T28001-2001 Occupational Health and Safety Management System. Yaolong brand is casted by our advancedR&D technology and abundant production capacity.
Spinning
Spinning an aluminum light pole involves using a metal spinning process to form a cylindrical or tapered pole from a flat aluminum blank. This technique is commonly used to create seamless, lightweight, and durable light poles for street lighting, highways, and decorative applications.
Heat Treatment
Heat treatment is often applied to aluminum light poles to enhance their strength, durability, and corrosion resistance. The process depends on the aluminum alloy used (typically 6061 or 6063) and the desired mechanical properties.
Automatic Cutting
Automated cutting ensures precision, efficiency, and consistency in manufacturing aluminum light poles. The process depends on the pole dimensions, alloy, and final application (e.g., street lighting, highways, or decorative poles).
Anodizing
Anodizing is the most effective surface treatment for aluminum light poles, providing superior corrosion resistance, durability, and aesthetic appeal.
